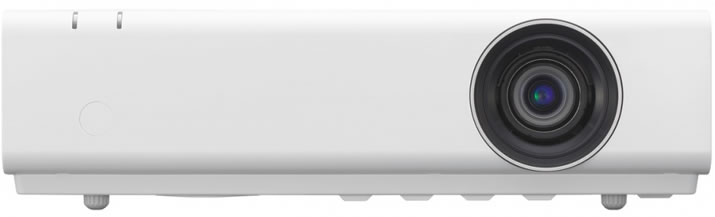

Sony VPLEX290 Multimedia Projector

VPLEX290






Sony Logo


DISCONTINUED

For the current Sony Range Click here

Quick Facts:
Sony VPL-EX290 Throw Distance Chart (Examples for common Sizes)
Image Size Installation Distance
(Approx. To Lens)
84" (4:3) 1650x1237mm From 2.5m to 3.8m
100" (4:3) 2030x1523mm From 2.9m to 4.6m
120" (4:3) 2360x1770mm From 3.5m to 5.5m
SPECIFICATIONS
Native Resolution: XGA 1024 x 768 4:3
Brightness: 3800 ANSI Lumens
Maximum Contrast: 3300:1
Weight: 3.9kg
Fan Noise: 35 / 30db (eco)
Warranty: 3 Years (+1 Year $85)
Lamp Warranty: 1500 hours
Lamp Life Up To: 10
,000hrs
FEATURES
- HDMI Connection
- Off & Go
- USB stick reader (jpeg only)

- 1.6x Zoom
- Wireless - Optional
- iPad, iPhone Wireless(optional)

Bring learning to life with this bright, energy-efficient, wireless-ready portable projector that has been designed in consultation with teachers and made for today’s classrooms

Combining superb widescreen XGA image quality with smart energy-efficient features, the VPL-EX290 portable projector enhances learning with powerful presentations that really stand out. Simple to use and wireless ready, the projector is ideal for maximising student engagement in today’s networked classrooms, making it your ideal partner throughout the busy school day.

Sony BrightEra™ panel technology assures clear pictures in any conditions, from daylight to darkened classrooms. Plenty of interfaces allow easy connection, while a choice of Picture Modes optimises viewing with any source – slide presentations, PC documents, pictures or videos. Adding an optional Wi-Fi module lets students and teachers wirelessly share homework, images and graphics from mobile devices like smartphones and tablets. There’s a wide range of smart energy-saving features built in. And with a recommended lamp replacement time of 10,000 hours, downtime and maintenance costs are minimised.

Energy efficient with long-lasting lamp of 10,000 hours
The lamp driver optimally controls the wattage of the lamp and achieves a long-lasting lamp time of 10,000* hours. The recommended lamp replacement time is extended by 43%, compared to the previous model.
*Lamp mode: low, Complies with IEC61947 standard
Sony Long Lamp Life Projector

Advanced energy-saving features
Advanced lamp technology enables robust energy-saving features. For example, greater brightness control in Auto Light Dimming mode saves considerable energy when the projector is left on without being used. During projection, Auto Lamp Mode automatically adjusts light output to suit the projected scene. When you need to mute the picture temporarily, light output can be completely deactivated to minimise energy consumption.

High image quality 3LCD BrightEra™ natural and vivid colour images
XGA (1024 x 768) 4:3 screen resolution, 3LCD BrightEra™ natural and vivid colour images, plus various Picture Modes for optimising image quality, make the projector one of the best in its class. Thanks to the optical system projecting three basic colours constantly, the projector offers excellent light efficiency, ensuring colourful and bright images. Sony's BrightEra™ panels deliver improved panel light resistance, higher resolution, high brightness and increased panel reliability. High colour reproducibility is important especially when using colourful content, such as materials used in classrooms.

Various picture modes for optimal picture quality
The projector has six available picture modes for correct picture quality: Dynamic, Standard, Presentation, Blackboard, Game, and Cinema. With six picture modes and three brightness modes combined, the user can select the most suitable picture/brightness combination according to the picture source and environment, to create the optimal image.

Network presentation (LAN/Wireless LAN) (Sony Wireless Adapter Optional)
When the projector is installed in a LAN, presentations can be projected from any PC and Mac on the network. A tablet or smartphone can be connected at the same time. You can project jpg, pdf and other supported formats. Up to four users can project PC/Mac images simultaneously, while up to eight users can connect to one projector. For PC/Mac, an application, Projector Station for Network Presentation, is provided. For a tablet/smartphone, an application is provided by Pixelworks, downloaded from the web. For details, please visit: http://PWPresenter.pixelworks.com

Sony Wireless

Remote control for iOS device
Projector Remote is a simple remote control application for Sony’s projectors. Networked projectors can be controlled by this remote application. Remote Control allows you to operate the projector with simple and easy-to-read buttons.
Sony Projector Remote

USB display
The projector allows you to display pictures and audio* with one USB cable. You do not need to install any driver for this function. It is a convenient way to connect to the projector when you want to connect easily.

* There is a time lag in video and audio. When not in simple use, it is recommended to use Line-in or HDMI-in.

Input Label
The input label, which appears in the input menu on screen, can be customised. This gives users a clear understanding of which equipment is connected.

VPL-EX230

Projector Screen Bundle

Specifications

Display System

Display System 3 LCD system

Display device

Size of effective display area 0.63”(16 mm) x 3 BrightEra
LCD Panel, Aspect ratio: 4:3
Number of pixels 2,359,296 (1024x768 x 3) pixels

Projection lens

Focus Manual
Zoom - Powered/Manual Manual
Zoom - Ratio Approx. x1.6
Throw Ratio 1.40:1 to 2.27:1

Light source

Type Ultra high pressure mercury lamp
Wattage 210 W type

Recommended lamp replacement time

Lamp mode: High 4000 H
Lamp mode: Standard 6000 H
Lamp mode: Low 10000 H

Filter cleaning / replacement cycle (Max.)

Filter cleaning / replacement cycle (Max.) 7000 H(cleaning)

Screen size

Screen size 30" to 300"(0.76 m to 7.62 m)

Light output

Lamp mode: High 3800 lm
Lamp mode: Standard 2700 lm
Lamp mode: Low 2100 lm

Color light output
(Lamp mode: High / Standard / Low)

Lamp mode: High 3800 lm
Lamp mode: Standard 2700 lm
Lamp mode: Low 2100 lm

Contrast ratio (full white / full black)

Contrast ratio (full white / full black) 3300:1

Displayable scanning frequency

Horizontal 14 kHz to 93 kHz
Vertical 47 Hz to 93 Hz

Display resolution

Computer signal input Maximum display resolution: 1600 x 1200 dots, fV:60Hz
Video signal input NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 575/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, The following items are available for digital signal (HDMI input) only; 1080/60p, 1080/50p

Color system

Color system NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N

Keystone correction (Max.)

Horizontal +/-30 degrees

OSD language

OSD language 24-languages (English, Dutch, French, Italian, German, Spanish, Portuguese, Turkish, Polish, Russian, Swedish, Norwegian, Japanese, Simplified Chinese, Traditional Chinese, Korean, Thai, Vietnamese, Arabic, Farsi, Finnish, Indonesian, Hungarian, Greek)

INPUT OUTPUT
(Computer/Video/Control)

INPUT A RGB / Y PB PR input connector: Mini D-sub 15 pin female
INPUT B RGB input connector: Mini D-sub 15 pin female
INPUT C HDMI input connector: HDMI 19-pin, HDCP support,
S VIDEO IN S Video input connector: Mini DIN 4-pin
VIDEO IN Video input connector: Phono jack
OUTPUT MONITOR output connector: Mini D-sub 15 pin female
REMOTE D-sub 9-pin
male/RS234C
LAN RJ-45, 10BASE-T/100BASE-TX
USB Type-A
USB Type-B

Operating temperature / Operating humidity

Operating temperature / Operating humidity 0°C to 40°C (32°F to 104°F)
35% to 85%; no condensation

Storage temperature / Storage humidity

Storage temperature / Storage humidity -20 °C to +60°C (-4°F to +140°F) /
10% to 90% (no condensation)

Power requirements

Power requirements AC 100 V to 240 V, 2. 8A to 1.2 A, 50 Hz / 60 Hz

Power consumption - AC 100 V to 120 V

Lamp mode: High 278 W
Lamp mode: Standard 220 W
Lamp mode: Low 189 W

Power consumption - AC 220 V to 240 V

Lamp mode: High 269 W
Lamp mode: Standard 210 W
Lamp mode: Low 183 W

Standby mode power consumption - AC 100 V to 120 V

Standard 4.9 W
Low 0.5 W

Standby mode power consumption - AC 220 V to 240 V

Standard 5.1 W
Low 0.5 W

Heat dissipation

AC 100 V to 120 V 949 BTU
AC 220 V to 240 V 918 BTU

Dimensions (W x H x D)

Dimensions (W x H x D)
(without protrusions)
Approx. 365 x 96.2 x 252 mm (14 3/8 X3 25/32 X9 29/32 ”)

Mass

Mass Approx. 3.8 kg (8 lb)

Supplied accessories

Remote commander RM-PJ8
Wireless LAN module No

Optional Accessories

Optional Lamp LMP-E212
Projection lenses No
Projection lens adapter No
Interactive pen device No
Wireless LAN module IFU-WLM3
Rear Panel
VPL-EX290 Rear
