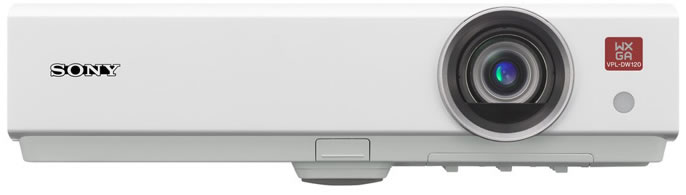

Sony VPLDW122 Multimedia Widescreen Projector
|
|
|



 |

|
For the current Sony Range Click here |
Quick Facts: |
|
Sony VPLDW122 Throw Distance Chart (Examples for common Sizes) |
Image Size |
Installation Distance (Approx. To Lens) |
83" (16:10) 1790x1120mm |
From 2.6m to 3.3m |
98" (16:10) 2110x1320mm |
From 3.0m to 3.9m |
118" (16:10) 2540x1590mm |
From 3.7m to 4.8m |
|
SPECIFICATIONS
Native Resolution: WXGA 1280 x 800 16:10
Brightness: 2600 ANSI Lumens
Maximum Contrast: 3000:1
Weight: 2.5kg
Fan Noise: 35 / 30db (eco)
Warranty: 3 Years (+1 Year $85)
Lamp Warranty: 1500 hours
Lamp Life Up To: 10,000hrs |
FEATURES
- HDMI Connection
- Off & Go
|
Economical desktop projector for office and classroom, offering basic high performance and superior ease of use
The VPL-DW122 is packed with features optimised for the business and education markets at a reasonable price. The projector is compact and lightweight, with its simple design making it very easy to set up.
Sony 3LCD BrightEra™ panel technology provides bright and colourful projection. Plenty of interfaces allow easy connection, while a choice of Picture Modes optimises viewing with any source – slide presentations, PC documents, pictures or videos. There’s a range of smart energy-saving features built in, including auto power saving function. And with a recommended lamp replacement time of 10,000 hours, downtime and maintenance costs are minimised.
Compact, lightweight and stylish design
The VPL-DW122 has a compact and lightweight body with a small footprint of approximately 315 x 75 x 230.5 mm (12 13/32 x 2 15/16 x 9 1/16 inches) and a light weight of approximately 2.5 kg (5.4 lb). This compact, lightweight projector is convenient for carrying around a meeting room or classroom.
Energy efficient with long-lasting lamp of 10,000 hours
The lamp driver optimally controls the wattage of the lamp and achieves a long-lasting lamp time of 10,000* hours. The recommended lamp replacement time is extended by 43%, compared to the previous model.
*Lamp mode: low, Complies with IEC61947 standard.
Advanced energy-saving features
Advanced lamp technology enables robust energy-saving features. For example, greater brightness control in Auto Light Dimming mode saves considerable energy when the projector is left on without being used. During projection, Auto Lamp Mode automatically adjusts light output to suit the projected scene. When you need to mute the picture temporarily, light output can be completely deactivated to minimise energy consumption.
High image quality 3LCD BrightEra™ natural and vivid colour images
Widescreen WXGA (1280 x 800) 16:10 screen resolution, 3LCD BrightEra™ natural and vivid colour images, plus various Picture Modes for optimising image quality, make the projector one of the best in its class. Thanks to the optical system projecting three basic colours constantly, the projector offers excellent light efficiency, ensuring colourful and bright images. Sony's BrightEra™ panels deliver improved panel light resistance, higher resolution, high brightness and increased panel reliability. High colour reproducibility is important especially when using colourful content, such as materials used in classrooms.
Various picture modes for optimal picture quality
The projector has six available picture modes for correct picture quality: Dynamic, Standard, Presentation, Blackboard, Game, and Cinema. With six picture modes and three brightness modes combined, the user can select the most suitable picture / brightness combination according to the picture source and environment, to create the optimal image.

|
Specifications
Display System
Display System |
3 LCD system |
Display device
Size of effective display area |
0.59" (15mm)x 3, Aspect ratio: 16:10 |
Number of pixels |
3,072,000 (1280x800 x 3) pixels |
Projection lens
Focus |
Manual |
Zoom - Powered/Manual |
Manual |
Zoom - Ratio |
Approx. x1.3 |
Throw Ratio |
1.36-1.77 |
Light source
Type |
Ultra high pressure mercury lamp |
Wattage |
210 W type |
Recommended lamp replacement time
Lamp mode: High |
3,000H |
Lamp mode: Standard |
5,000 H |
Lamp mode: Low |
10,000H |
Filter cleaning / replacement cycle (Max.)
Filter cleaning / replacement cycle (Max.) |
1000 H(Cleaning) |
Screen size
Light output
Lamp mode: High |
2,600lm |
Lamp mode: Standard |
1,900lm |
Lamp mode: Low |
1,500lm |
Color light output
(Lamp mode: High / Standard / Low)
Lamp mode: High |
2,600lm |
Lamp mode: Standard |
1,900lm |
Lamp mode: Low |
1,500lm |
Contrast ratio (full white / full black)
Contrast ratio (full white / full black) |
3000:1 |
Speaker
Displayable scanning frequency
Horizontal |
19 kHz to 92 kHz |
Vertical |
48 Hz to 92 Hz |
Display resolution
Computer signal input |
Maximum display resolution: UXGA 1600 x 1200 dots |
Video signal input |
NTSC, PAL, SECAM,480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i
The following items are available for digital signal (HDMI input) only; 1080/60P, 1080/50p |
Color system
Color system |
NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N |
Keystone correction (Max.)
Horizontal |
+/- 30 degrees |
OSD language
OSD language |
23-language (English, French, German, Italian, Spanish, Portuguese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Dutch, Norwegian, Swedish, Thai, Arabic ,Turkish, Polish, Vietnamese, Farsi, Finnish, Indonesian, Hungarian) |
INPUT OUTPUT
(Computer/Video/Control)
INPUT A |
RGB / Y PB PR input connector: Mini D-sub 15 pin female
Audio input connector: Stereo mini jack |
INPUT B |
HDMI input connector: HDMI 19-pin, HDCP support, Audio input connector: HDMI audio support |
Operating temperature / Operating humidity
Operating temperature / Operating humidity |
0°C to 35°C (32°F to 95°F) /
20% to 80%(no condensation) |
Storage temperature / Storage humidity
Storage temperature / Storage humidity |
-10°C to +60°C (14°F to +140°F) /
20% to 80%(no condensation) |
Power requirements
Power requirements |
AC 100 - 240V, 2.9A to 1.2A, 50Hz/60Hz |
Power consumption - AC 100 V to 120 V
Lamp mode: High |
288 W |
Lamp mode: Standard |
220 W |
Lamp mode: Low |
200 W |
Power consumption - AC 220 V to 240 V
Lamp mode: High |
275 W |
Lamp mode: Standard |
215 W |
Lamp mode: Low |
190 W |
Power Consumption (Standby Mode)
AC 100 V to 120 V |
0.5W (when “Standby mode” is set to “Low”) |
AC 220 V to 240 V |
0.5W (when “Standby mode” is set to “Low”) |
Heat dissipation
AC 100 V to 120 V |
980 BTU |
AC 220 V to 240 V |
936 BTU |
Dimensions (W x H x D)
Dimensions (W x H x D)
(without protrusions) |
Approx. 315 x 75 x 230.5 mm |
Mass
Mass |
Approx. 2.5kg (5.5 lb) |
Supplied accessories
Optional Accessories
|
|
|
Optional Accessories |
|
|
Extended Warranty For Projectors
|
All Programs come with:
- GM Multimedia Extended Warranty ID Number (must be retained)
- GM Multimedia claim instructions and terms & conditions
- Does not cover consumable items or accessories such as projector globes or remotes |
[More Information] |
|
|
|
|
|
|
|
|
Premium HDMI Digital AV Cable |
2 Metres |
$29.95
|
|
5 Metres |
$49.95 |
|
10 Metres |
$79.95 |
|
15 Metres |
$99.95 |
|
20 Metres |
$149.95 |
|
|
Premium quality AV cable for use with HDMI enabled digital displays, projectors, LCD screens and Plasma TVs!
- HDMI 1.3 with an increased single-link bandwidth to 340 MHz (10.2 Gbps) to support the demands of future HD display devices
- Compatible with HDTV and HDCP (High-Bandwidth Digital Content Protection)
-
Connectors: HDMI Male/Male, Type A
-
10 year warranty |
|
|
Premium VGA Monitor Cable |
5 Metres |
$29.95
|
|
10 Metres |
$59.95 |
|
15 Metres |
$69.95 |
|
20 Metres |
$89.95 |
|
30 Metres |
$110.95 |
|
|
Heavily shielded coaxial RGB cable giving you a crisper display at higher resolutions!
- Features UL Approved Cabling
- Filters included on both ends cutting down on noise
- Maintains stronger signals using a shielded cabling run.
- Comes in 15pin D-sub format with Male to Male conectors
|
 |
