Viewsonic PX747-4K High Brightness 4K Projector

PX747-4K



4K


Viewsonic Logo


DISCONTINUED


=This product is no longer available=

REPLACED BY THE PX748-4K Click here


Quick Facts:
Viewsonic PX747-4K Throw Distance Chart (Examples for common Sizes)
T/R: 1.47-1.76:1
Image Size Installation Distance
(Approx. To Lens)
92" (16:9) 2030x1140mm From 3.0m to 3.5m
100" (16:9) 2130x1200mm From 3.1m to 3.7m
110" (16:9) 2435x1370mm From 3.6m to 4.2m
120" (16:9) 2580x1450mm From 3.8m to 4.5m
135" (16:9) 2990x1681mm From 4.4m to 5.2m
150" (16:9) 3320x1867mm From 4.9m to 5.8m
SPECIFICATIONS
Native Resolution: UHD 3840 x 2160 16:9
Brightness: 3500 ANSI Lumens
Maximum Contrast: 12,000:1
Weight: 4.2kg
Fan Noise: 33 / 29db (eco)
Warranty: 3 Years (+1 Year $135)
Lamp Warranty: 12 Months / 1000 Hours
Lamp Life Up To: 15,000hrs
FEATURES
- Rec. 709 Colour Calibration
- 4 Segment Colour Wheel
- 1.2x Zoom
- Vertical Keystone Correction
- 2x HDMI connections
- HDR Compatible
- 12 Volt Trigger

Viewsonic PX747-4K 3,500 Lumens UHD Projector With HDMI

Combining a UHD 4K resolution and a high brightness the Viewsonic PX747-4k is perfect for a multipurpose room where there is ambient light. Offering the crystal clear 4K detail the PX747-4k is perfect for a large screen size and suitable for 4K digital media. With a lamp life of up to 4000 hours on normal mode and 15,000 hours on economic mode the PX747-4K is also economic to run.


Impressive Visual PerformanceTrue 4K UHD

Enjoy the vivid detail of true 4K UHD with 4X the clarity of Full HD. With 8.3 million pixels being projected onto your screen via XPR technology, PX747-4K is able to meet Consumer Technology Association (CTA) standards for 4K UHD certification.

PX747-4K 4K Resolution

Bright Images Anywhere

3,500 ANSI Lumens of brightness guarantee bright images in any environment, including rooms with high levels of ambient light.

PX747-4K Bright Images

Gaming on 4K UHD Big Screen

PX747’s 4K UHD resolution follows the 4K gaming console trend and supports 4K gaming console content to deliver extremely fine detail for an exciting gaming experience.

PX747-4K Gaming

Images with More Depth

PX747-4K supports HDR content to produce more realistic looking images and bringing flat images to life with more displayable information in the darker and brighter parts of a scene.

PX747-4K HDR

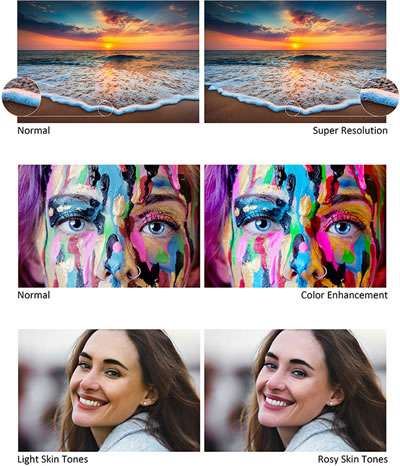

Advanced Image Processor

Super Resolution

The super resolution feature re-masters each object individually to produce sharper and more detailed images.

Colour Enhancement

Colour enhancement optimizes colours individually to maximize colour gradation performance.

Skin Tone

The skin tone feature can prevent discoloration from the projection light, improving skin tones and achieving natural looking colour tones.

PX747 Processor

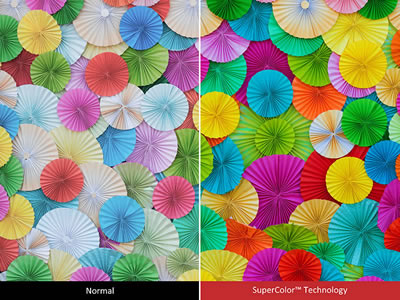

Amazing Colour Accuracy

ViewSonic’s proprietary SuperColor™ Technology displays a wide colour range, ensuring that users enjoy a true-to-life colour performance in both bright and dark environments without sacrificing image quality.

PX747-4K Colour
Ease of Use

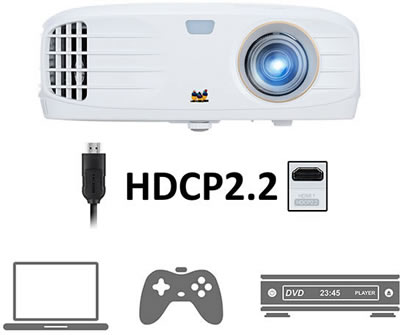

Extensive Connectivity for HD Devices

Enjoy true 4K content on the big screen with an HDMI 2.0 port that supports HDCP 2.2. PX747-4K’s HDCP 2.2 allows you to enjoy true 4K UHD content from devices such as streaming boxes and newer 4K UHD Blu-ray players which must be HDCP 2.2 compliant to pass 4K signal to 4K UHD projectors.

PX747 HDCP

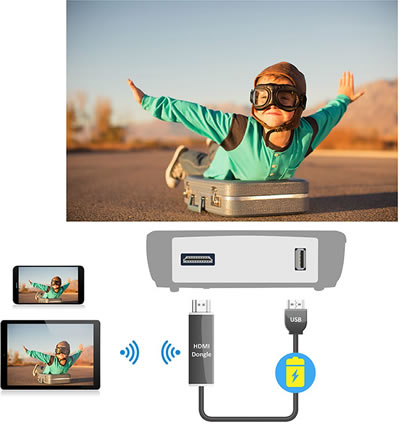

Integrated Power Source

A built-in 5V/1.5A USB power output can be used to supply power to HDMI wireless dongles, eliminating the need for separate power adapters when streaming your favorite multimedia content.

PX747-4K USB Power

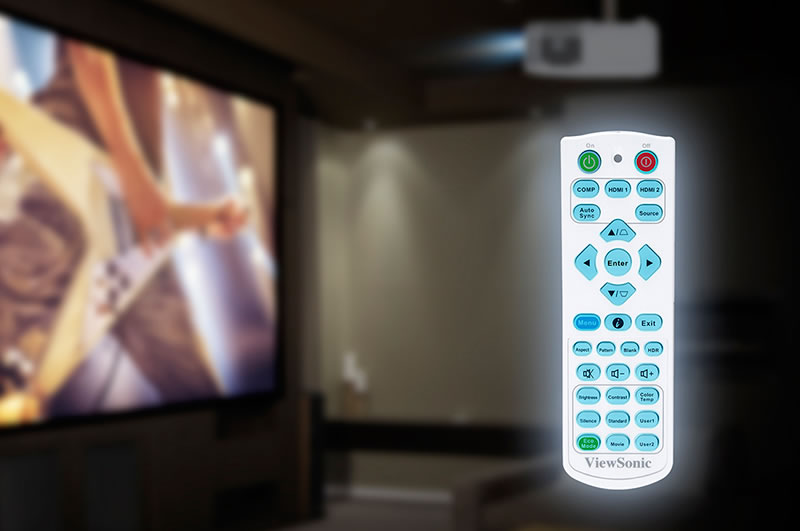

User-friendly Remote Control

PX747-4K comes with a backlit remote control that makes operating the projector simple, especially in the dark.

PX747-4K Remote

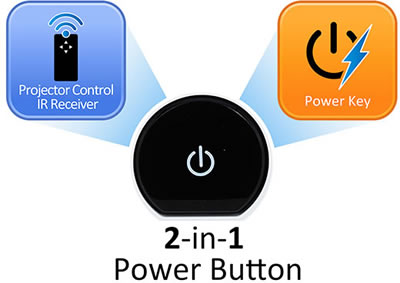

Centralized Control

A centrally located power button makes for easy control of the projector’s status and also doubles as an IR receiver for convenient projector management.

PX747-4K Power Button

High Native Contrast Ratio

The optical system used in ViewSonic DLP projectors provides “Deeper Black” and “Native High Contrast Ratios” due to DMD technology. A high contrast ratio adds depth to images and gives them a more realistic feel.

PX747-4K Contrast






Specifications
  • SPECIFICATION
    Projection System : 0.47" 4K UHD
    Native Resolution : 3840x2160
    DC Type : DC3
    Brightness : 3500 ANSI Lumens
    Contrast Ratio With SuperEco Mode : 12000:1
    Display Colour : 1.07 Billion Colours
    Light Source : Lamp
    Light Source Life (Nor/SuperEco) : 4000/15000
    Lamp Watt : 240W
    Lens : F=1.94-2.06, f=15.57-18.67mm
    Projection Offset : 120%+/-6%
    Throw Ratio : 1.47-1.76
    Image Size : 30" - 300"
    Throw Distance : 0.97m-11.69m (100"@3.26m)
    Keystone : ±40° (Vertical)
    Optical Zoom : 1.2x
    Audible Noise (Eco) : 33 / 29dB (Economic mode)
    Resolution Support : VGA (640 x 480) to 4K (3840 x 2160)
    HDTV Compatibility : 480i, 480p, 576i, 576p, 720p, 1080i, 1080p,2160p
    Horizontal Frequency : 15K~135KHz
    Vertical Scan Rate : 23~120Hz
  • INPUT
    Computer In (D-SUB 15 Pin) : 1
    Audio-in (3.5mm) : 1
    HDMI (HDCP) : 2
    (HDMI 2.0/HDCP2.2 x1, HDMI1.4/HDCP 1.4 x1)
  • OUTPUT
    Audio Out (3.5mm) : 1
    Speaker : 10W
    USB Type A (Power) : 1 (5V/1.5A)
    12V Trigger : 1
  • CONTROL
    RS232 : 1
    USB Type Mini B (Services) : 1
  • OTHERS
    Power Supply Voltage : 100-240V+/- 10%, 50/60Hz AC
    Power Consumption : Normal: 330WStandby: <0.5W
    Operating Temperature : 0~40℃
    Carton : Color
    Net Weight : 4.2kg
    Dimensions (WxDxH) W/adjustment Foot : 332x261x135mm
    Language : English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, Arabic, Vietnamese
  • STANDARD ACCESSORY
    Power Cord : 1
    VGA Cable : 1
    Remote Control : 1 (with backlit)
    QSG : 1
  • OPTIONAL ACCESSORY
    Lamp/Light Source : RLC-117


Rear Panel

PX747-4K Rear Connections
