Viewsonic PLED-W500 LED Pico Projector
|
|
|



  |

|
FOR CURRENT MODELS CLICK HERE
|

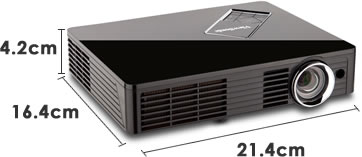

The PLED-W500 shines with its innovative, stylish new look. Weighing only 1.18 kg (2.6 lbs) with dimensions of 214 x 164 x 42 mm (8.4” x 6.5” x 1.7”), lightweight, compact and ultra portable. 500 ANSI lumens, superior in the LED pocket projector category, provide 20,000 hours of brightness for energy and cost savings. The short throw lens projects a 33” screen from a 1m distance with a native 1280 x 800 WXGA resolution and a 16 : 10 aspect ratio. 2GB of onboard memory allows you to store documents and multi- media files directly on the projector, while the built-in SD / SDHC card reader and Microsoft Office / PDF viewer displays your content without needing a PC – perfect for business presentations on the go. With USB and HDMI 1.3 support, simply connect the PLED-W500 with a PC, tablet or other device to enjoy a widescreen gaming or home theater experience.
|
 |
Ultra portable, ultra stylish

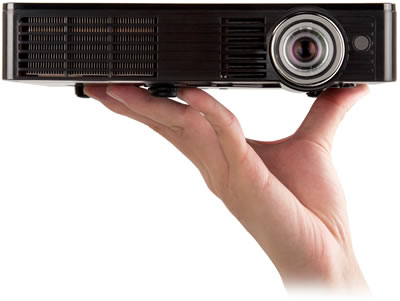

The PLED-W500 is slim, compact and lightweight for easy mobility between meeting rooms and on the go. It features an innovative design, with a piano-black mirrored surface and geometric inset buttons that make the projector modern, sleek and elegant, ideal for business presentations and multimedia entertainment.
 |
BrilliantColor™ technology
Innovative BrilliantColor™ technology delivers stunning all-digital clarity with lifelike color, sharp graphics and outstanding video. Using a sophisticated LED RGB light source, the projector achieves a wide range of colors and incredibly vivid color reproduction. |
Long life, more green
The PLED-W500 uses an energy-efficient LED lamp with a 20,000-hour lifespan – a green solution that saves you money and helps save the planet. It provides 500 lumens of brightness for sharp images with high color saturation.
Big screens in small spaces
The PLED-W500 can project a 33” screen from a distance of only 1m. With a native 1280 x 800 WXGA resolution and 16 : 10 aspect ratio, you can take advantage of the wide screen area to create detailed, impactful presentations. It’s the perfect solution for small meeting rooms and home theaters.
Versatile connectivity
Easily access your presentation files with a built-in SD / SDHC card reader and a USB port. The embedded Microsoft Office / PDF viewer can display Word, Excel, Power- Point, PDF and other multimedia files directly, without needing a PC! HDMI 1.3 input enables high definition entertainment in the comfort of your living room.
Short throw for big screen
PLED projector series adopts high quality short throw and optical lens design, which is able to project 33" widescreen image within 1 meter distance. You can easily share your presentation or high quality images in small spaces, and no need to worry about the images interrupted by long distance projection.

|
Specifications
|
|
Type |
|
TI DMD 0.45” |
|
|
Resolution |
|
1280x800, 1680x1050 compressed |
|
|
Lens |
|
Manual focus / Fixed Zoom |
|
Display |
|
Size |
|
30 - 100 inch (measured diagonally) |
|
|
Throw Distance |
|
1.8 - 3.0m |
|
|
Lamp |
|
Luminus PT54 LED / 20000 hour rating |
|
|
Brightness |
|
500 Lumens |
|
|
Contrast Ratio |
|
6000:1 |
|
|
Keystone Correction |
|
+40 ~ -40 (Vertical) |
|
|
Aspect Ratio |
|
16:10 |
|
Audio |
|
Speakers |
|
2W x 1 |
|
Input Signal |
|
Video |
|
NTSC M (3.58 MHz), 4.43 MHz
PAL (B, D, G, H, I, M, N, 60)
SECAM (B, D, G, K, K1, L)
480i and 576i
480p and 576p
720p, 1080i, 1080P |
|
|
Sync |
|
H/V separated |
|
|
Frequency |
|
Fh: 30-100KHz; Fv: 48-120Hz |
|
Compatibility |
|
PC |
|
1280 x 800 (60Hz) (Native Resolution) |
|
|
Mac |
|
Analog (*may require MAC adapter) |
|

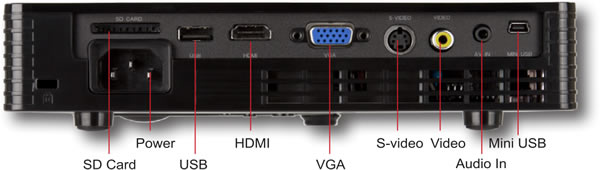

Connector |
|
RGB Input |
|
DB-15 (x1) |
|
|
Composite Video |
|
RCA jack (x1) |
|
|
S-Video |
|
4-pin mini DIN (x1) |
|
|
Component Video |
|
Share with RGB |
|
|
Digital Input |
|
HDMI x 1 |
|
|
Audio |
|
Input: 3.5mm Mini-Mono Jack (x1) |
|
|
USB |
|
USB Type A x1 (PC-less Presentation); Mini USB Type B x1 (USB display) |
|
Power |
|
Voltage |
|
100~240VAC(Auto Switching), 50/60Hz (universal) |
|
|
Consumption |
|
144W (Typical) / <0.5W |
|
Operating Conditions |
|
Temperature
Humidity |
|
0°~40°C / 32°~104°F
10%-90%(non-condensing) |
|
Dimensions |
|
Physical |
|
214mm (W) x 42mm (H) x 164mm (D) |
|
Weight |
|
Net |
|
1.2 kgs |
|
Regulations |
|
|
|
CE, CB, UL, cUL, FCC (including ICES-003), NOM, TUV-S Argentina ,RoHS |
|
|
|
Optional Accessories |
|
|
