VIEWSONIC PJD5352 Short Throw DLP PROJECTOR |
|
 |
 |

 |
FOR CURRENT MODELS CLICK HERE |
Small budget - big presentations
ViewSonic’s powerful PJD5352 sets the stage for a new generation of versatile projectors equipped with BrilliantColor™ technology and an extreme short throw ratio – producing a 50" image at a distance of only 3 feet away. With its short throw lens, the PJD5352 saves space by allowing you to place it at the front of your table and still display large, crisp images. Weighing in at just 5.5 pounds with 2,600 ANSI lumens and a 2600:1 contrast ratio (with DCR), it’s easy to give multimedia lessons in the classroom or dynamic presentations in the boardroom. Multiple preset presentation modes, an increased 40 degree digital vertical keystone correction and optical zoom ensure the best possible image regardless of location. With up to 6,000 hours of lamp life*, low cost replacement lamps, filter-less design and a non-degrading DLP® light engine, the PJD5352 is one of the lowest total cost of ownership projectors in the industry.
Features
 |
3D Projection
The DLP-based PJD6211, PJD6221 PJD6241 PJD6251, and PJD6281 offer 120Hz fast refresh rate and are compatible with stereoscopic 3D technologies using Texas Instruments' DLP Link solution. These capabilities allow 3D pictures to be projected from a single beamer out-of-the-box without requiring any additional special polarizer, filter or screen.
(3D content, 3D glasses and appropriately equipped PC also required to display 3D images) |
Bright in virtually any setting
Packs 2,600 ANSI lumens in just 5.5 pounds, and with a high 3000:1 contrast ratio (with DCR), your presentations are guaranteed to be vibrant even in the brightest office environment
Eco-mode extends lamp life
Extend the life of your lamp up to 6,000 hours* and reduce noise output
Off to Go
The direct off feature allows the busy presenter to simply unplug the projector and go without waiting for the usual cool down phase. This feature also protects lamp life from sudden power blackouts

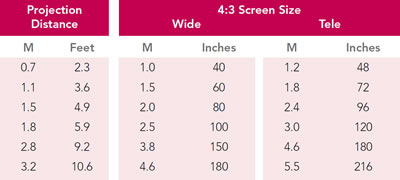

Short throw lens for large, stunning images in small spaces
The short throw lens enables large images to be projected from short distances in small rooms with short throw distances. A screen size of 50" is possible from just 3 feet.
 |
BrilliantColor™ technology
Latest BrilliantColor™ technology delivers stunning all-digital clarity with life-like color, sharp graphics and outstanding video. The sophisticated 5-segment color (RGBWY) wheel provides greater color accuracy than standard DLP projectors with a 4-segment color wheel |

|
Specifications
LCD |
|
Type |
|
0.55" Digital Micromirror Device (DLP™) Type |
|
|
Resolution |
|
1024x768, 1600x1200 compressed |
|
|
Lens |
|
Manual Zoom/Manual focus |
|
Display |
|
Size |
|
48 - 216 inch (measured diagonally) |
|
|
Throw Distance |
|
0.5 - 5.5m |
|
|
Lamp |
|
220watt / 4000 hour rating |
|
|
Brightness |
|
2600 Lumens |
|
|
Contrast Ratio |
|
2600:1 |
|
|
Keystone Correction |
|
Vertical digital keystone correction: +/-40 degrees |
|
|
Aspect Ratio |
|
4:3 |
|
Audio |
|
Speakers |
|
5Wx1 |
|
Input Signal |
|
Video |
|
NTSC M (3.58 MHz), 4.43MHz, PAL (B, D, G, H, I, M, N, 60), SD 480i and 576i (24fps, 25fps and 30fps), ED 480p and 576p (24fps, 25fps and 30fps), HD 720p, 1080i (24fps, 25pfs and 30fps) |
|
|
Sync |
|
H/V Separated |
|
|
Frequency |
|
Fh: 31-100KHz; Fv: 48-120Hz |
|
Compatibility |
|
PC |
|
XGA to UXGA |
|
|
Mac |
|
Up to 1600×1200 (may require Mac Adapter) |
|
Connector |
|
RGB Input |
|
2×15-pin D-sub |
|
|
RGB Output |
|
1×15-pin D-sub |
|
|
Composite Video |
|
1 x RCA-1 |
|
|
S-Video |
|
1 x 4-pin mini DIN |
|
|
Audio |
|
Input: 1 x 3.5mm mini jack; Output: 1 x 3.5mm mini jack |
|
|
Control |
|
1 x RS-232 (8 pin D-sub) |
|
Power |
|
Voltage |
|
100~240VAC(Auto Switching), 50/60Hz (universal) |
|
|
Consumption |
|
280W (Typical) / <1W (Stand-by mode) |
|
Controls |
|
Basic |
|
Power, Menu, 4 direction button , Enter/Blank, Source, Blank, ViewMatch, Freeze, Mode, Auto, Digital Zoom +/-, Volume+/- |
|
|
OSD |
|
(1) Display:Screen color/ Aspect raito/ Keystone/ Position/ Phase/ H. Size/ Digital Zoom/ 3D sync/ 3D sync invert (2) Picture: Brightest/ Daylight/ Gaming/ ViewMatch/ Cinema/ Contrast/ Color /Tint/ Sharpness/ Brilliant Color/ Color Temp. /Save Settings (3) Source: Quick Auto Search/ Language/ Projector Position/ Auto Power Off/ Blank Timer/ Panel Key lock/ Timer Controller/ Splash Screen (4) System Setup: Quick Cooling/ High Altitude Mode/ DCR/ Audio Settings /Menu Settings/ Closed Caption/ Lamp Settings/ Security Setting/ Reset All Settings (5) Information |
|
Operating Conditions |
|
Temperature
Humidity |
|
0°C-40°C
10%-90% (non-condensing) |
|
Dimensions |
|
Physical |
|
264mm (W) x 96.4mm (H) x 225mm (D) |
|
Weight |
|
Net |
|
2.5 kgs |
|
Regulations |
|
|
|
CB, UL, cUL, FCC (including ICES-003), CE, UL-Argentina, NOM, TUV-GS, GOST-R, SASO, Ukraine, PSB, C-Tick, Korean-eK, CCC, ygiene, WEEE, RoHS |
Supplied Accessories
|
Carry Bag |
Remote |
|
|
Optional Accessories |
|
|
[
|
Extended Warranty
|
All Programs come with:
- United ID Sticker (must be attached to product)
- United Certificate with Terms & Conditions
Program Coverage:
- LCD & DMD pixels are covered only as per original manufacturer's pixel terms & conditions
- Does not cover Cords, Power Adapter
- Does not cover consumable items such as projector globes |
+ 2 Year On-Site Extended Warranty (Total 5 Years) |
$139 |
+ 1 Year On-Site Extended Warranty |
$110 |
|
|
Premium VGA Monitor Cable (15HDM/15HDM) |
Aus Wide Delivery: $15
|
Heavily shielded coaxial RGB cable giving you a crisper display at higher resolutions!
. |
Features UL Approved Cabling |
. |
Filters included on both ends cutting down on noise |
. |
Maintains stronger signals using a shielded cabling run. |
. |
Comes in 15pin D-sub format with Male to Male conectors |
|
|
|
|
|
Viewsonic WPG-350 Wireless Presentation Gateway |
Pick Up Avail.
|
- Upgrade any Projector To Wireless
- Fully compatible with both Windows and Mac® OS
- Supports resolutions up to 1024x768 and full-motion
video up to 1080p
- Presentation remote for total conference control
- Equipped with VGA pass-through for an extra display |
|
|
BenQ D-SUB VGA - HDTV Component Video Adapter Cable |
Insured Delivery: $13
Pick Up Avail.
|
- 15 pin D-sub to Component Cable.
- Connect to a HDTV Set Top box, DVD player, or games console
- Converts to Component inputs for a higher quality picture.
- Works in conjuction with Benq projectors. |
|
|
Universal flush ceiling mount (205) |
Insured Delivery: $16
Pick Up Avail.
|
• Swivel: 360°, Adjustable roll, pitch and yaw.
• Rigid Steel
construction.
• Durable powder-coated finish
(Black).
• Supports up to 10kgs.
• Mounting hardware included.
• User manual included.
• All bracket models come
standard with 4 x mounting
arms. |
|
Buy your new PJD5352 projector now, Contact Us today! |
|
|
|
