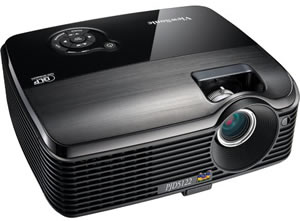

| VIEWSONIC PJD5122 Multipurpose DLP PROJECTOR |
|
 |
|
 |
FOR CURRENT MODELS
CLICK HERE |
ViewSonic's PJD5122 is a great little projector that offers outstanding value and performance. This SVGA resolution projector supports high definition signals and projects 2700 lumens for clear, bright images in most lighting conditions. At only 5.1 pounds, it is light and compact, making it ideal for the mobile presenter. Texas Instruments’ BrilliantColor™ technology delivers brilliant, true-color and high contrast images for viewing presentations, charts, or video. With extensive connectivity, includ- ing two RGB inputs and one RGB output, the PJD5122 is an excellent multifunctional data/video projector. Eco-mode reduces fan noise for less distraction during important presentations and even extends the lamp life up to 6000 hours*. For increased secu- rity a PIN lock feature allows you to set a password to prevent unauthorized use. The PJD5122 is perfect for tabletop, ceiling mounting or taking on the road.
Bright in virtually any setting
Packs 2,700 ANSI lumens in just 5.1 lb, and with a high 3000:1 contrast ratio (with DCR), your presentations are guaranteed to be vibrant even in the brightest office environment.
 |
Eco-mode extends lamp life
Extend the life of your lamp up to 6000 hours* and reduce noise output.
BrilliantColor™ technology
Latest BrilliantColor™ Technology delivers stunning all-digital clarity with life-like color, sharp graphics and outstanding video. The sophisticated 6-segment color wheel enriches the yellow color performance that is key to accurate and vivid color reproduction. |
Set to Present
With 8 preset picture modes, including whiteboard, blackboard and cinema it is easy to put together a great presentation.
Off to Go feature
The direct off feature allows the busy presenter to simply unplug the projector and go without waiting for the usual cool down phase. This feature also protects the lamp from sudden power blackouts.
 |
3D Projection
The DLP-based PJD5122 offers 120Hz fast refresh rate and are compatible with stereoscopic 3D technologies using Texas Instruments' DLP Link 3D solution. These capabilities allow 3D pictures to be projected from a single beamer out-of-the-box without requiring any additional special polarizer, filter or screen.
(3D content, 3D glasses and appropriately equipped PC also required to display 3D images)
* DLP Link Only - Not Compatible with nvidia 3D Vision. |
|
Specifications
| LCD |
|
Type |
|
0.55" Digital Micromirror Device (DLP™) Type |
| |
|
Resolution |
|
800x600, 1600x1200 compressed |
| |
|
Lens |
|
1.1× Manual optical zoom / Manual optical focus |
| |
| Display |
|
Size |
|
30 - 300 (measured diagonally) |
| |
|
Throw Distance |
|
1.1 - 11.3m |
| |
|
Lamp |
|
220watt / 4000 hour rating (6000 on Economic mode) |
| |
|
Brightness |
|
2700 Lumens |
| |
|
Contrast Ratio |
|
3000:1 |
| |
|
Keystone Correction |
|
Vertical digital keystone correction: ± 40 degrees |
| |
|
Aspect Ratio |
|
4:3 / 16:9 |
| |
| Audio |
|
Speakers |
|
5Wx1 |
| |
| Input Signal |
|
Video |
|
NTSC M (3.58 MHz), 4.43MHz, PAL (B, D, G, H, I, M, N, 60), SD 480i and 576i (24fps, 25fps and 30fps), ED 480p and 576p (24fps, 25fps and 30fps), HD 720p, 1080i (24fps, 25pfs and 30fps) |
| |
|
Sync |
|
H/V Separated |
| |
|
Frequency |
|
Fh: 31-100KHz; Fv: 48-120Hz |
| |
| Compatibility |
|
PC |
|
XGA to UXGA |
| |
|
Mac |
|
Up to 1600×1200 (may require Mac Adapter) |
| |
| Connector |
|
RGB Input |
|
2×15-pin D-sub |
| |
|
RGB Output |
|
1×15-pin D-sub |
| |
|
Composite Video |
|
1 × RCA jack |
| |
|
S-Video |
|
1 x 4-pin mini DIN |
| |
|
Audio |
|
Input: 1 x 3.5mm mini jack; Output: 1 x 3.5mm mini jack |
| |
| Power |
|
Voltage |
|
100~240VAC(Auto Switching), 50/60Hz (universal) |
| |
|
Consumption |
|
280W (Typical) / <1W (Stand-by mode) |
| |
| Controls |
|
Basic |
|
Power, keystone/arrow keys, left/blank, menu/exit, right/panel key lock, auto, mode/enter, source |
| |
|
OSD |
|
(1) Display: Screen color/ Aspect raito/ Keystone/ Position/ Phase/ H. Size/Digital Zoom/ 3D sync/ 3D sync invert/ Color management (2) Picture:Preset Mode/ Brightest/ Daylight/Game/ ViewMatch/Cinema/User 1/ User 2
Reference Mode: Brightest/ Daylight/ ViewMatch/Cinema/Game/Brightness /Contrast /Color /Tint / Sharpness / Brilliant Color /Color Temp. /Save Settings
(3) Source: Quick Auto Search / Language/ Projector Position / Auto Power Off /Blank Timer / Panel Key lock/ Timer Controller /Splash Screen/ Message
(4) System Setup (Advanced): Quick Cooling / High Altitude Mode /DCR /Active VGA Out/ Audio Settings /Menu Settings / Closed Caption / Lamp Settings / Security Setting / Reset All Settings
(5) Information |
| |
| Operating Conditions |
|
Temperature
Humidity |
|
0°C - 40°C
10% - 90% (non-condensing) |
| |
| Dimensions |
|
Physical |
|
264mm (W) x 96.4mm (H) x 225mm (D) |
| |
| Weight |
|
Net |
|
2.3 kgs |
| |
| Regulations |
|
|
|
CB, UL, cUL, FCC (including ICES-003), CE,UL-Argentina, NOM, TUV-GS, GOST-R,SASO, Ukraine, PSB, C-Tick, Korean-eK, CCC, Hygiene, WEEE, RoHS |
| Optional Accessories |
|
|
|
[
|
Extended Warranty
|
All Programs come with:
- United ID Sticker (must be attached to product)
- United Certificate with Terms & Conditions
Program Coverage:
- LCD & DMD pixels are covered only as per original manufacturer's pixel terms & conditions
- Does not cover Cords, Power Adapter
- Does not cover consumable items such as projector globes |
| + 2 Year On-Site Extended Warranty (Total 5 Years) |
$90 |
| + 1 Year On-Site Extended Warranty |
$75 |
|
|
|
Premium VGA Monitor Cable (15HDM/15HDM) |
Aus Wide Delivery: $15
|
Heavily shielded coaxial RGB cable giving you a crisper display at higher resolutions!
| . |
Features UL Approved Cabling |
| . |
Filters included on both ends cutting down on noise |
| . |
Maintains stronger signals using a shielded cabling run. |
| . |
Comes in 15pin D-sub format with Male to Male conectors |
| |
|
|
|
|
|
Viewsonic WPG-350 Wireless Presentation Gateway |
Pick Up Avail.
|
- Upgrade any Projector To Wireless
- Fully compatible with both Windows and Mac® OS
- Supports resolutions up to 1024x768 and full-motion
video up to 1080p
- Presentation remote for total conference control
- Equipped with VGA pass-through for an extra display |
|
|
|
BenQ D-SUB VGA - HDTV Component Video Adapter Cable |
Insured Delivery: $13
Pick Up Avail.
|
- 15 pin D-sub to Component Cable.
- Connect to a HDTV Set Top box, DVD player, or games console
- Converts to Component inputs for a higher quality picture.
- Works in conjuction with Benq projectors. |
|
|
Universal flush ceiling mount (205) |
Insured Delivery: $16
Pick Up Avail.
|
• Swivel: 360°, Adjustable roll, pitch and yaw.
• Rigid Steel
construction.
• Durable powder-coated finish
(Black).
• Supports up to 10kgs.
• Mounting hardware included.
• User manual included.
• All bracket models come
standard with 4 x mounting
arms. |
|
| Buy your new PJD5112 projector now, Contact Us today! |
|
|
|
