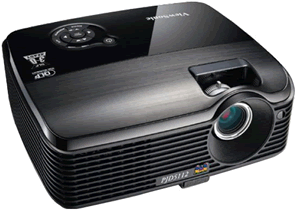

| VIEWSONIC PJD5112 Multipurpose DLP PROJECTOR |
|
 |
|
 |
FOR CURRENT MODELS
CLICK HERE |
Digitally clear, dynamic presentations
The PJD5112 is a DLP® powerhouse that delivers sharp and bright images for virtually any environment. It’s 3D ready with support for up to 120Hz frame rates. BrilliantColor™ technology produces more vibrant colors, while the high brightness and contrast ratio make this projector shine in the classroom or meeting room. The extensive input options, including two RGB inputs and one RGB output, and integrated 2-watt stereo speakers deliver a truly dynamic multimedia experience. This projector even features closed captioning for the hearing impaired. The PJD5112 is ideal for use at home or in amy small corporate settings.
Bright in virtually any setting with lumens
Packs 2700 ANSI lumens in just 2.66kg(5.86 lb), and with a high 2800:1 contrast ratio (typ), your presentations are guaranteed to be vibrant even in the brightest office environment.
 |
3D Projection
The DLP-based PJD5112, PJD6211, PJD6221 and PJD6241 offer 120Hz fast refresh rate and are compatible with stereoscopic 3D technologies using Texas Instruments' DLP Link and Nvidia 3D-Vision solutions. These capabilities allow 3D pictures to be projected from a single beamer out-of-the-box without requiring any additional special polarizer, filter or screen.
(3D content, 3D glasses and appropriately equipped PC also required to display 3D images) |
DLP™ Technology
Stunning all digital clarity delivers lifelike color, sharp graphics, and outstanding video.
Eco-mode extends lamp life
Extend the life of your lamp up to 5000 hours** and reduce noise output.
 |
BrilliantColor™ technology
Latest BrilliantColorTM Technology delivers stunning all-digital clarity with life-like colour, sharp graphics and outstanding video. The sophisticated 6-segment colour wheel enriches the yellow colour performance that is key to accurate and vivid color reproduction.
Closed captioning
Integrated closed captioning decoder for the hearing impaired. |
Off-to-Go feature
The direct off feature allows the busy presenter to simply unplug the projector and go without waiting for the usual cool down phase. This feature also protects lamp life from sudden power blackouts.
|
Specifications
| LCD |
|
Type |
|
0.55" Digital Micromirror Device(DLP™) |
| |
|
Resolution |
|
800x600, 1600x1200 compressed |
| |
|
Lens |
|
1.2 × Manual optical zoom / Manual optical focus |
| |
| Display |
|
Size |
|
30 - 300 inch (measured diagonally) |
| |
|
Throw Distance |
|
1.2 - 10.0m |
| |
|
Lamp |
|
180watt (RLC-050) / 3500 hour rating |
| |
|
Brightness |
|
2700 Lumens |
| |
|
Contrast Ratio |
|
2800:1 |
| |
|
Keystone Correction |
|
Vertical digital keystone correction:+/- 40 degrees |
| |
|
Aspect Ratio |
|
4:3 (native) & 16:9 |
| |
| Audio |
|
Speakers |
|
2W x 1 |
| |
| Input Signal |
|
Video |
|
NTSC M(3.58MHz), 4.43MHz, PAL(B, D, G, H, I, M, N, 60), SD 480i and 576i(24fps, 25fps and 30fps), ED 480p and 576p(24fps, 25fps and 30fps), HD 720p, 1080i (24fps, 25pfs and 30fps) |
| |
|
Sync |
|
H/V separated |
| |
|
Frequency |
|
Fh: 31-100KHz; Fv: 50-120Hz |
| |
| Compatibility |
|
PC |
|
VGA to UXGA |
| |
|
Mac |
|
Up to 1152x864 (may require Mac Adapter) |
| |
| Connector |
|
RGB Input |
|
2 × 15-pin mini D-sub |
| |
|
RGB Output |
|
1 × 15-pin mini D-sub |
| |
|
Composite Video |
|
1 × RCA jack |
| |
|
S-Video |
|
1 × 4-pin mini-DIN |
| |
|
Audio |
|
Input: 2 x 3.5mm mini jack; Output: 1 x 3.5mm mini jack |
| |
|
Control |
|
1 × RS-232 (8 Pin Mini-Din) |
| |
| Power |
|
Voltage |
|
90~240VAC(Auto Switching), 50 / 60Hz(universal) |
| |
|
Consumption |
|
235W (Typical) / <1W (Stand-by m |
| |
| Controls |
|
Basic |
|
POWER, Keystone/ Arrow keys, Left/ BLANK, MENU/ EXIT, Right/ Panel key lock, AUTO, MODE/ ENTER, SOURCE |
| |
|
OSD |
|
Picture: Brightness, contrast, color setting, keystone, aspect ratio, image, white intensity, gamma, 3D sync, 3D sync invert.
Computer Image: Frequency, tracking, H position, V position.
Video Image: Saturation, sharpnes, tint. Setting: Menu position, projection, signal type, lamp hour, lamp hour reset, filter mode, filter hours, filter hours reset, power saving, auto source, ECO mode, high altitude, OSD timeout.
Advance: Blank screen, password word, screen capture, start up screen, text shot, digital zoom, DCR, close captions, brilliant color, |
| |
| Operating Conditions |
|
Temperature
Humidity |
|
0°C - 40°C (32°F - 104°F)
10%-80% (non-condensing) |
| |
| Dimensions |
|
Physical |
|
280mm (W) x 114mm (H) x 218mm (D) |
| |
| Weight |
|
Net |
|
2.7 kgs |
| |
| Regulations |
|
|
|
CB, ROHS, WEEE, UL / cUL, FCC-B, ICES-003, NOM, PSB, C-tick, EK, CE, TUV / GOST-R, Hygienic, UKrSEPRO, CCC |
