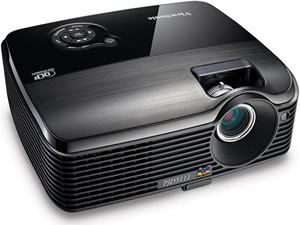

| VIEWSONIC PJD5111 Multipurpose DLP PROJECTOR |
|
 |
|
 |
FOR CURRENT MODELS
CLICK HERE |
Easy to use, easy to afford
The ViewSonic PJD5111 is a practical projector that offers outstanding value and the best SVGA performance available. This native SVGA resolution projector supports high definition signals and projects 2500 lumens for clear, bright images in most lighting conditions. At only 2.3kg, it is light and compact, making it ideal for the mobile presenter or to move from room to room in the office or on a campus. Texas Instruments’ BrilliantColor™ technology delivers brilliant, true-color and high contrast images for viewing presentations, charts, or video. With extensive connectivity, including two RGB inputs and one RGB output, the PJD5111 is an excellent multifunctional data/video projector. The Eco-mode function reduces the fan noise output for less distraction during important presentations and even extends the lamp life up to 4000 hours*. The PJD5111 is perfect for users looking for an easy to use, versatile and portable projector at a great price.
Bright in virtually any setting
Packs 2,500 ANSI lumens in just 2.3kg, and with a high 2800:1 contrast ratio (with DCR), your presentations are guaranteed to be vibrant even in the brightest office environment.
 |
BrilliantColor™ technology
Latest BrilliantColor™ Technology delivers stunning all-digital clarity with life-like colour, sharp graphics and outstanding video. The sophisticated 6-segment color wheel enriches the yellow color performance that is key to accurate and vivid color reproduction.
Eco-mode extends lamp life
Extend the life of your lamp up to 4000 hours** and reduce noise output. |
Off to Go feature
The direct off feature allows the busy presenter to simply unplug the projector and go without waiting for the usual cool down phase. This feature also protects the lamp from sudden power blackouts.
|
Specifications
| LCD |
|
Type |
|
0.55" Digital Micromirror Device (DLP™) |
| |
|
Resolution |
|
800x600, 1280x1024 compressed |
| |
|
Lens |
|
1.1× Manual optical zoom / Manual optical focus |
| |
| Display |
|
Size |
|
30 - 300 inch (measured diagonally) |
| |
|
Throw Distance |
|
0.9 - 10.9m |
| |
|
Lamp |
|
189 watt / 3000 hour rating (4000hours on eco mode) |
| |
|
Brightness |
|
2500 Lumens |
| |
|
Contrast Ratio |
|
2800:1 (DCR) |
| |
|
Keystone Correction |
|
Vertical digital keystone correction: +/-40 degrees |
| |
|
Aspect Ratio |
|
4:3 (native) & 16:9 |
| |
| Audio |
|
Speakers |
|
1×5W |
| |
|
Amplifier |
|
1W at THD<10% |
| |
| Input Signal |
|
Video |
|
NTSC M (3.58 MHz), 4.43MHz, PAL (B, D, G, H, I, M, N, 60), SD 480i and 576i (24fps, 25fps and 30fps), ED 480p and 576p (24fps, 25fps and 30fps), HD 720p, 1080i (24fps, 25pfs and 30fps) |
| |
|
Sync |
|
H/V separated |
| |
|
Frequency |
|
Fh: 30-70KHz; Fv: 50-87Hz |
| |
| Compatibility |
|
PC |
|
VGA to SXGA |
| |
|
Mac |
|
Up to 1280×1024 (may require Mac Adapter) |
| |
| Connector |
|
RGB Input |
|
2 × 15-pin mini D-sub |
| |
|
RGB Output |
|
1 × 15-pin mini D-sub |
| |
|
Composite Video |
|
1 × RCA jack |
| |
|
S-Video |
|
1 × 4-pin mini-DIN |
| |
|
Component Video |
|
2 × 15-in mini -D-Sub (sharer with RGB) |
| |
|
Audio |
|
Input: 1 × 3.5mm mini jack; Output: 1 × 3.5mm mini jack |
| |
|
Control |
|
1×RS-232 (8 Pin Mini-Din) |
| |
| Power |
|
Voltage |
|
90~240VAC (Auto Switching), 50/60Hz (universal) |
| |
|
Consumption |
|
242W (Typical) / <5W (Stand-by m |
| |
| Controls |
|
Basic |
|
POWER, Keystone/up and down keys, Left/BLANK, MENU/EXIT, Right/Panel key lock, AUTO, MODE/ENTER, SOURCE |
| |
|
OSD |
|
Display: Screen color, aspect ratio, keystone, position, phase, H. size, digital zoom
Picture: Preset mode: brightest, standard(Video),daylight, ViewMatch(PC), cinema, user 1/user 2, brightness, contrast, color, tint, sharpness, brilliant color, color temp., save settings)
Source: Quick auto search
System setting (Basic): Language , projector position, auto power off, blank timer, panel key lock, timer controller, splash screen
System setting (Advanced): quick cooling, high altitude mode, DCR, active VGA out, audio settings, menu settings, closed caption, lamp settings, security setting, reset all settings
Information: Current system status (source, preset mode, resolution, color system, equivalent lamp hour) |
| |
| Operating Conditions |
|
Temperature
Humidity |
|
0ºC-40ºC (32ºF-104ºF)
10% - 90% (non-condensing) |
| |
| Dimensions |
|
Physical |
|
264mm (W) x 96.4mm (H) x 225mm (D) |
| |
| Weight |
|
Net |
|
2.3 kgs |
| |
| Regulations |
|
|
|
CB, ROHS, WEEE, UL/cUL, FCC-B, ICES-003, IRAM (Argentina), NOMPSB, C-tick, EK, CE, TUV/GS, GOST-R, Hygienic, SASO UKrSEPRO, CCC |
| Optional Accessories |
|
|
|
[
|
Extended Warranty
|
All Programs come with:
- United ID Sticker (must be attached to product)
- United Certificate with Terms & Conditions
Program Coverage:
- LCD & DMD pixels are covered only as per original manufacturer's pixel terms & conditions
- Does not cover Cords, Power Adapter
- Does not cover consumable items such as projector globes |
| + 2 Year On-Site Extended Warranty (Total 5 Years) |
$90 |
| + 1 Year On-Site Extended Warranty |
$75 |
|
|
|
Premium VGA Monitor Cable (15HDM/15HDM) |
Aus Wide Delivery: $15
|
Heavily shielded coaxial RGB cable giving you a crisper display at higher resolutions!
| . |
Features UL Approved Cabling |
| . |
Filters included on both ends cutting down on noise |
| . |
Maintains stronger signals using a shielded cabling run. |
| . |
Comes in 15pin D-sub format with Male to Male conectors |
| |
|
|
|
|
|
Viewsonic WPG-350 Wireless Presentation Gateway |
Pick Up Avail.
|
- Upgrade any Projector To Wireless
- Fully compatible with both Windows and Mac® OS
- Supports resolutions up to 1024x768 and full-motion
video up to 1080p
- Presentation remote for total conference control
- Equipped with VGA pass-through for an extra display |
|
|
|
BenQ D-SUB VGA - HDTV Component Video Adapter Cable |
Insured Delivery: $13
Pick Up Avail.
|
- 15 pin D-sub to Component Cable.
- Connect to a HDTV Set Top box, DVD player, or games console
- Converts to Component inputs for a higher quality picture.
- Works in conjuction with Benq projectors. |
|
|
|
Grandview Universal Projector Ceiling Mount |
Insured Delivery: $16
Pick Up Avail.
|
-Direct to ceiling mount
-Suits most projectors with 3 or 4 mounting holes
- GVMBC = BLACK
- GVMWC = WHITE
|
|
|
|
Grandview GVMBE & GVMWE Extension Pole for Grandview Mount. |
Insured Delivery: $16
Pick Up Avail.
|
- Suites the above Grandview projector mount
- Offers either a 500 or 1000mm drop.
- Available in white, silver and black
- GVMBE = BLACK
- GVMWE = WHITE
- (extension pole only, can only be used with above Hang It Ceiling mount) |
| |
|
|
| Buy your new PJD5111 projector now, Contact Us today! |
|
|
|
