W501 A Powerful Performer

Extensive features - Full 3D, PC-Free / LAN Presentations
5000 Lumens, HD WXGA resolution
Ultimate Control - Full support for Crestron, Extron, AMX, PJ-Link and Telnet LAN commands
Installation flexibility – Vertical lens shift and 1.5x zoom

High brightness, excellent connectivity and amazing colours ensure the Optoma W501 full HD 1080p projector is the perfect choice for any large venue or conference room.

Exceeding the demands of 21st century, the W501 is packed with wide array of features to make presenting both easier and more exciting than ever before…

The environmentally friendly W501 has energy saving features including Eco+ lamp power management, <0.5W standby mode and auto power off, saving you both time and money. Our unique Optoma Colour Guarantee ensures hassle-free, long-lasting projection.

Effortless presenting

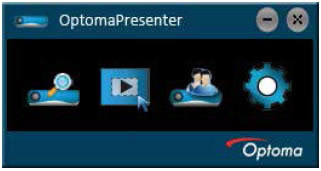

Enjoy hassle-free presenting using the USB Reader to project a JPEG presentation directly from a USB flash drive.

3D Technology Using the inherent speed of DLP® technology, Optoma Full 3D projectors can output video and images at an astonishing rate of 120Hz, allowing you to show full screen, full colour, stereoscopic 3D. The 3D effect is generated by splitting this signal into two standard video streams, one for each eye. Using DLP® Link™ technology, the 3D glasses synchronise with the image on screen to filter each stream to the correct eye. Your brain then combines the two streams to make them jump into life. The W501 supports multiple 3D formats from various devices such as PC, Blu-ray 3D™, Sony® PS3, Microsoft® Xbox 360 or 3D TV broadcast systems.

Image quality

A HD projector with 1280x800 pixels has more than twice the resolution of an HD-Ready display. Fully compatible with HDTV broadcasts and high definition media, the W501 is able to display un-scaled WXGA signals in their original form for use where exceptional clarity and detail are essential.

Extensive connectivity

This HD projector accepts a wide variety of computer and video input signals. Connectivity includes: HDMI, DVI-D, dual VGA (Component via adaptor), S-Video, Composite, USB Reader, VGA-Out, RS232, RJ45 and +12V trigger. In addition the optional Wi-Fi accessory can be securely connected to a dedicated hidden USB port.

Five audio inputs for HDMI, PC, video and microphone sources enable the W501 to function not only as an audio switcher and volume controller, but also as a basic PA system for larger meeting rooms; thereby eliminating complicated and costly additional audio hardware and cabling.

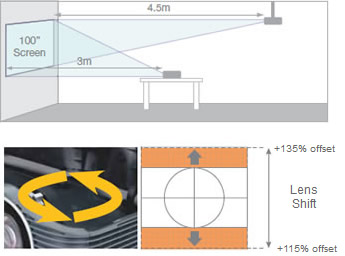

Easy installation - 1.5x zoom and lens shift The W501 can project a 100” diagonal image from any distance between 3.03m and 4.54m. The Lens Shift system can be used to adjust the vertical position of the projected image within the range detailed in the diagrams below. When replacing existing projectors, the 1.5x zoom and Lens Shift systems greatly increase your installation flexibility.

DICOM simulation mode Designed specifically for larger meeting rooms and lecture theatres, the W501 includes a special DICOMsim mode that has been specially tuned for viewing greyscale images, perfect for viewing X-rays and scans during medical training.* *The W501 is not suitable for use in medical diagnosis.

Clear, focused Images DarkChip3™ from Texas Instruments, combined with Eco+ dynamic lamp technology produce a stunning 15,000:1 contrast ratio for pin sharp graphics and crystal clear text. Crisper whites, ultra-rich blacks makes images come alive and text easier to read - ideal for business and education presentations.

Amazing colours

The W501 incorporates BrilliantColor™ technology to produce stunningly bright images with perfectly balanced, life-like colours.

System integration and control

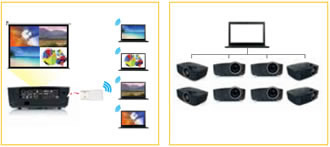

Using the free Crestron Roomview software, multiple W501 can be monitored over LAN and also provide the user with an email message alert in case an error occurs or a lamp fails. Cut up to 30% from your energy bills using 24-hour automated power scheduling to ensure that projectors power off when not in use.

The web browser interface and full support for Extron’s IP Link, AMX dynamic device discovery and PJ-Link protocols, allow almost all aspects of the W501 to be controlled across a network, reducing installation costs and keeping you in control, wherever you are. While RS-232 connectivity ensures legacy support for existing control systems.

Easy lamp replacement In applications requiring smooth continuous operation, minimising service time is essential. The W501 lamp can quickly be replaced without the need to remove the projector from where it is installed.

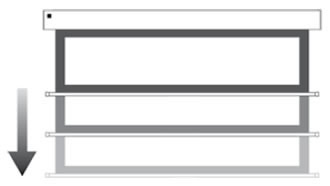

+12v Trigger Power on both your projector and screen at the touch of a single button. For ultimate convenience, connect an Optoma electric screen directly to your W501.

Extra features

• Direct & Signal Power ON - Start up time can be significantly reduced if standby mode is bypassed, eliminating the need to use the ‘Power’ button on the remote control or the projector keypad.
  - Direct Power ON switches the projector on when the power cable is inserted into an active power outlet
  - Signal Power On switches the projector on when an active VGA source is connected to the unit.

• Key pad lock – once enabled prevents unauthorised adjustments ensuring the projector can only be controlled via the remote control.

• Logo capture - customise your start up screen
