This is an archived page that is no longer updated or supported. It may contain faulty links and may not appear correctly on some devices. Just Projectors takes no responsibility for the accuracy of the information shown.
Optoma ML1500e Throw Distance Chart (Examples for common Sizes)
Image Size
Installation Distance
(Approx. To Lens)
60" (16:9) 1330x745mm
From 1.8m to 1.8m
80" (16:9) 1770x995mm
From 2.4m to 2.4m
100" (16:9) 2214x1245mm
From 3.0m to 3.0m
SPECIFICATIONS
Native Resolution: WXGA 1280 x 800
Brightness: 1500 ANSI Lumens
Maximum Contrast: 20,000:1
Weight: 1.4kg
Fan Noise: N/A
Warranty: 3 Years (+1 Year $119)
LED Warranty: 12months/1000hrs
LED Life Up To: 20,000hrs
FEATURES
- Off & Go
- PC Free - MS Office Reader
-
SD Card Reader
- HDMI Connection
- 2x 3W Stereo Speakers
- Optional Wireless
- iPad, iPhone Wireless(optional)
ML1500e Ultra-slim portable LED Projector
“PC-free” viewing - Built in media player and office viewer
6W Stereo audio with SRS WOW HD audio processing
Wireless presentations
Slim & Lightweight 1.4kg
Introducing the all new ML1500e ultra-slim portable LED projector. This powerful, lightweight and portable projector projects vibrant HD ready images up to an impressive 100”. Weighing only 1.4kg and supplied with a carry bag you can easily transport it between meetings.
Packed full of features the ML1500e incorporates a media player, native office viewer and built-in speakers with SRS WOW audio processing. It also includes an SD card slot, USB connection and wireless capabilities providing you with ultimate flexibility. Perfect for viewing Microsoft Office & Adobe PDF files, photos and videos.
Using the latest “Lamp-free” technology for exceptional colour fidelity, reliability and longevity, the Optoma LED ultra-slim portable projector is your perfect entertainment and business partner.
Media Player and Native Office Viewer
Play videos, photos, Microsoft Office & Adobe PDF files directly from an SD card or USB stick and view them directly on the projector without the need to connect the projector to a laptop, PC or DVD player.
Videos Sit back after a long day to enjoy your favourite movies… without the need for file conversion; the ML1000 directly supports all the most popular video & music file formats and being both HD-Ready and LED, you can also be sure of vibrant colours, depth and clarity that will not disappoint.
Wireless Presentations (Optional) Present from your phone or tablet using the free App: WiFi-Doc. Available for both Android and iOS devices, WiFi-Doc gives you the freedom to wirelessly share and present documents and photos stored on your mobile device. Creating a more connected and collaborative experience for everyone.
Instantly connect and display presentation material wirelessly from a PC, Mac or mobile device using the included mini WiFi dongle which connects discreetly to the USB port on your ML1000, bringing you seamless wireless connectivity in a highly portable package. Enjoy big-screen presentations streamed to your projector, cable-free.

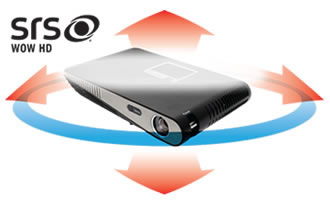

Audio WOW - SRS Wow HD™ Surround Sound Embrace the WOW factor with SRS WOW HD surround sound audio processing to create a more natural audio experience with a deep, rich bass response. Easy to set up without the need for costly external speakers the ML1000 offers exceptional sound quality with on-board 6W stereo audio.
SRS WOW HD Features
Stereo enhancement which improves dynamic audio performance
Sculpted bass response for maximum thump from the on-board speakers
More natural audio with a wider sound field
Ultra Compact Weighing only 1.4kg, the ML1000 is ultra light and compact. Coupled with the included carry case make it ideal for presentations on the go.

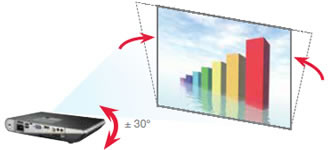

Auto Keystone Digital keystone correction helps ensure that the projected image will always fit the area on which you are projecting.
3D Ready Using the inherent speed of DLP® technology, Optoma 3D Ready projectors can output video and images at an astonishing rate of 120Hz, allowing you to show full screen, full colour, stereoscopic 3D. Useful for both professionals and educators alike, the ML1000 brings both teaching and design to a whole new level of immersion and excitement.
Colour Guarantee We are so confident that the ML1000 image colour quality will remain as good as the day you bought it that Optoma will guarantee it for five years.
Photos Insert the SD card straight from your phone or camera to instantly share memories with small or large groups, without the need for extra cables. Alternatively leave a slideshow with audio running in the background before kicking off a meeting, to whet your audiences’ appetite and stimulate discussion.
Presentation and Documents
With native support for Microsoft Office and Adobe PDF files, you can simply save your work onto an SD card* or USB memory stick* and you are ready to go.
*SD Card & USB memory stick not included. Connection to some devices may require additional cables, available separately.
LED Technology Using the benefits of LED technology, the ML1000 LED projector uses individual Red, Green and Blue LED modules to create the projected image without the need for a colour wheel.
LEDs increase efficiency and have an increased lamp life up to 20,000 hours. Saving you both time and money; while leaving you certain that your projector will be fully operational for many years to come
Bright, Vibrant Images The ML1500e produces bright, vibrant images with deeper saturation, bursting with life. This is due to Due to the exceptional colour fidelity created by LED technology; In many situations the perceived brightness of an LED projector can be up to twice the brightness of an equivalent lamp-based projector.
Instant On/Off Quickly setup and pack up with instant power On/Off. LED technology allows the projector to be a full brightness in seconds.
Digital Signage Built-in digital signage function. Perfect for digital signage applications such as advertising and museum demos.
Specifications
ML1500e Specification
Display Technology
Single 0.45” WXGA DMD Chip DLP® Technology by Texas Instruments
Native Resolution
WXGA 1280 x 800
Brightness1 (Bright Mode)
1500 LED Brightness*
Contrast
20,000:1
Noise Level (Eco mode)
30dB
Weight (kg)
1.4
I/O Connectors
HDMI, VGA (YPbPr/RGB), Composite, Audio In 3.5mm, Audio Out 3.5mm, SD card slot, 2 x USB-A reader/wireless, micro USB
Carry bag, AC power cord, HDMI cable, remote control, battery, quick start card
RoHS
Compliant
3D Support
3D Ready - The 3D features of Optoma projectors can only be used with compatible 3D content. Typical applications include use with 3D educational or 3D design and modelling systems.
Native office viewer, media player, LED light source, optional wireless presenting
Supplied Accessories
Remote
Case
Rear Panel
Optional Accessories
Extended Warranty For Projectors
All Programs come with:
- GM Multimedia Extended Warranty ID Number (must be retained)
- GM Multimedia claim instructions and terms & conditions
- Does not cover consumable items or accessories such as projector globes or remotes
SPECIFICATIONS
• Deliver presentations wirelessly from your notebook or desktop PC
• With 802.11b/g/n Wireless Connectivity
• Windows / Mac Compatible.
• Android tablet / iPad Compatible.
• Notebook/desktop PC requires an existing wireless connection.
• Not suitable for full motion video
Premium HDMI Digital AV Cable - For 4K, 1080P & 3D Projectors
1 Metres
$19.95
2 Metres
$29.95
3 Metres
$39.95
5 Metres
$49.95
10 Metres
$79.95
15 Metres
$99.95
20 Metres
$149.95
High Speed HDMI CAT2 cable
Type A to Type A Male-to-Male High Speed cable with Ethernet Channel
Designed to support the features of HDMI V2.0 and previous versions
Features include 4K (50/60Hz) Video, 3D, Deep Colour, Audio Return Channel
High Speed HDMI performance with a dedicated Ethernet channel.
Shieled cable construction for optimum RF & EMI Protection
Gold Plated terminals
12 Month Warranty *We recommend keeping the length short for 4K under 10m - especially for 60hz
Premium VGA Monitor Cable
5 Metres
$29.95
10 Metres
$59.95
15 Metres
$69.95
20 Metres
$89.95
30 Metres
$110.95
Heavily shielded coaxial RGB cable giving you a crisper display at higher resolutions!
Features UL Approved Cabling
Filters included on both ends cutting down on noise
Maintains stronger signals using a shielded cabling run.
Comes in 15pin D-sub format with Male to Male conectors
