| BENQ MP776ST DLP Short Throw Multi Purpose PROJECTOR |
|
 |
 |
|
 |
 |
For the current BenQ Range Click here |
 |
 |
Active Learning is the Key to Educational Success!
Interactive whiteboards are one of the best education tools available, promoting student participation, higher information retention, and outright learning fun.
 |
Optimizing interactive whiteboard use is BenQ‘s Short-Throw Projector Series. With a unique aspherical lens, BenQ short-throw projectors can be ceiling-mounted as close as 1 meter inches from the whiteboard, preventing disruptive shadows from being cast on the board.
|
| New "It" Technology for Education |
 |
Go 3D with DLP® Link!
3D instruction will be the latest trend in education, opening up new opportunities in teaching methods for educators and students alike. BenQ projectors and DLP Link are taking teaching to a whole new dimension of effectiveness and enjoyment…at no extra costs. And unlike the traditional 3D projector system, which requires two perfectly aligned projectors to transmit two separate video feeds in order to deliver a 3D projection, MP776ST has mastered 3D display so as to require only one projector equipped with Front Project 3D DLP Link technology. |
 |
|
| Enjoy Superb Readability and Breathtaking Colors with BenQ! |
 |
Sharpen Up with High Contrast Ratios
MP772 ST boasts high contrast ration with 2400:1. High contract ratios translate to razor-sharp detail definition and a broader range of subtle color differences, which makes text is sharper, cleaner, and easy to read and in turn grab students’ attention and interest. |
 |
Vivify Your World with BrilliantColor™
BenQ projectors, the first to adopt BrilliantColor Technology, with BrilliantColor deliver unsurpassed color range, depth, and vibrancy far beyond the conventional color space to capture hard-to-produce vivid yellows, cyan, and magenta. BrilliantColor and BenQ breathe life into every image!
 |
 |
Customize with 3D Color Management
Exclusive BenQ 3D Color Management empowers you with the freedom to fine-tune color intensity to meet your preference. 3D Color Management lets users independently adjust the hue, grain, and saturation levels of all six color wheel tones (red, green, blue, cyan, magenta, and yellow) without colors compromising each other. |
| |
Excel with VIDI™ Superior Image Projection
To ensure the best possible image quality for all presentations no matter the setting or content, BenQ worked closely with Philips and Texas Instruments to create VIDI™ -- a sophisticated lamp lighting technology that dynamically adapts lamp output to each image/scene with millisecond precision so as to optimize brightness, color correction, and dark detail definition.
|
| Maintenance Savings! |
 |
DLP Projector Filter-Free Design
With numerous students shuffling about, it’s no wonder schools are extremely prone to dust. Unlike LCD projectors that require costly filters to keep dust out, BenQ DLP projectors are no filters required! |
 |
Remote Maintenance with Crestron® RoomView®
BenQ is proud to introduce Crestron–supported RoomView network service for school. MP776ST is Crestron RoomView-supported to provide IT personnel and projector managers simplified real-time, facility-wide central access and control over a single projector or groups of projectors simultaneously via a single station. |
| |
No Color Decay: Reliable Picture Quality
With numerous students shuffling about, it’s no wonder schools are extremely prone to dust. Unlike LCD projectors that require costly filters to keep dust out, BenQ DLP projectors are no filters required!
|
| Thoughtful Designs |
 |
Wall Color Correction
Don’t worry if you don’t have a projector screen at home! BenQ has studied the most commonly used paint colors and developed easy-to-use Wall Color Correction Technology so that you can project anywhere and still get the precise color performance you need.
 |
 |
Build-in Speakers
With build-in two 5W speakers with the MP776 ST, not only do you get the vivid visual performance, you get the same audio satisfaction, too! |
 |
A Keystone-Perfect View for All Your Projections
With the automatic keystone adjustment, a perfect square is all you’ll see. So go ahead and say goodbye to misshaped images, graphics, and charts! |
|
Specifications
Native Resolution |
XGA (1024 x 768) |
Projection System |
DLP® technology by Texas Instruments® |
Brightness |
3500 ANSI lumens |
Lamp |
280W, 2000/3000 hours (Normal/Economic mode) |
Contrast Ratio |
2400:1 (Full on/Full off) |
Weight |
7.7 lbs (3.5kg) |
Noise Level |
34/29 dB (Normal/Economic mode) |
Resolution Support |
VGA(640 x 480) to UXGA(1600x1200) |
Dimensions |
11.4 x 3.7 x 10.9 inch (290 x 94 x 278.6 mm) with Lens |
Image Size |
61” to 300” |
Throw Ratio |
0.61:1 (81"@1M) |
Zoom Ratio |
Fixed |
Lens |
F=2.6, f=6.9 mm |
Display Color |
Full 16.7 million color palette |
Aspect Ratio |
4:3 Native, 16:9 Selectable |
Horizontal Frequency |
31-93 kHz |
Vertical Scan Rate |
48-86 Hz |

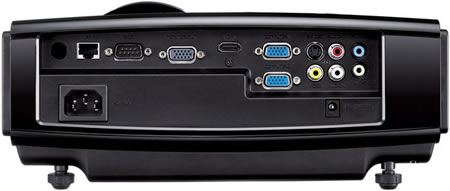

Input Terminals |
PC:
Analog RGB: D-sub 15 pin x 2(shared with Component)
A/V:
HDMI V1.3 x 1
S-Video: Mini Din 4 pin x 1
Composite Video: RCA x 1
Audio:
Stereo Mini Jack x 1
Audio L/R : RCA x 2 |
Output Terminals |
PC:
D-sub 15 pin x 1
Variable Audio Out : Stereo Mini Jack x 1
12V Trigger
Audio:
5W x 2 |
Video Compatibility |
NTSC, PAL, SECAM |
Auto Switching Power Supply |
90 to 264 VAC, 50/60 Hz |
Power Consumption |
390W, Standby < 1W |
On-Screen Display Language |
Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Hungarian/ Italian/ Janpanese/ Kroean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (24 Languages) |
Functions |
BrilliantColorTM
VIDITM
3D Color Management
Crestron LAN Control
Auto Keystone
Closed Captioning
Digital Zoom (x2)
Variable Audio Out
Quick Cooling
Quick Auto Search
Blank
Panel Key Lock
Auto Off
Security Password
HDTV Compatible
High Altitude Mode
"Q?" Hot Key for FAQ
3D Ready
Freeze |
Accessories (Standard) |
Quick Start Guide
Manual CD
Remote Control w/battery
VGA Cable
Power Cord |
Accessories (Optional) |
RS232 Cable
Spare Lamp Kit
Soft Carry Case |
Control Terminals |
Serial Connector : RS232 9 pin x 1
RJ45 x 1 |
Keystone Adjustment |
Auto Keystone; Manual Vertical +-30 Degree |
HDTV Compatibility |
480i, 480p, 576i, 576p, 720p, 1080p |
Picture Modes |
Dynamic Mode
sRGB Mode
Presentation Mode
Cinema Mode
User 1 Mode
User 2 Mode |
