                          |  BENQ MP512 DLP Multi Purpose PROJECTOR  |




                                 |
                                  |
                                  |
                                                                   |


                                  |
                                  |



                                  For the current BenQ Range Click here |


                                  |
                                  |





                                  Kick back and enjoy pictures projected at 26dB with the BenQ MP quietness series   projectors. Listen carefully! You may hear even hear the music of   silence!

                                    A Well-Defined Posterior – A Spectator’s   Delight
                                  MP512’s lines are soft and curvaceous; there are no sharp   edges anywhere on the exterior. The full-bodied design of the MP512 also   represent the myriad of functions that come standard with this model; whether   it’s for business, education, family entertainment, or computer games, the MP512   does it all. The most outstanding feature of the MP512 design is on the   projector’s posterior. The set of raised lines along the sides of the projector   flare out from the back and produce the visual effect of giving lift and extra   body.


                                      Whisper Quiet Design

  |





                                               |
                                                |



                                                       |



                                                          Anti-Vibration Equals Added   Quietness
                                                        Inside, our quiet-running cooling fan also includes a   noise-absorbing sponge while rubberized components dampen vibration that can   cause noise. Outside, high elasticity rubber stops resonance with table tops in   its tracks.  |


                                                |



                                                Designed in Every   Detail
                                                Silent Engineering means that we look everywhere for   improvements. We've re-designed our color wheel for maximum absorption of noise   and vibrations. We've also added a damper fixed between the MP512's color wheel   and bracket for added reduction in noise and vibration. |


                                        |





                                       |
                                      Low-Obstruction Ventilation Design
                                      We've designed for a smoother flow   of air through the MP512. This lowers heat and allows exhaust fans to run at   lower speeds for lower noise |

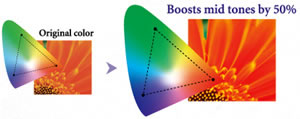

                                      BrilliantColor
Texas Instruments’ advanced on-chip   BrilliantColor™ technology boosts mid-tone colors, increasing overall brightness   and producing a more vibrant picture
  |
                                        |




                                       |
                                      3D Color Management
                                      3D color management lets users   fine-tune the hue, saturation, and gain of primary colors to achieve the exact   picture quality desired.  |

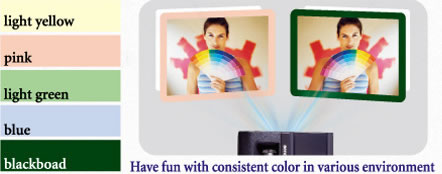

                                                                    Wall Color Correction
                                  Wall color correction   provides optimized viewing experience for different surfaces, such as a   classroom blackboard, that might be used to display content instead of a regular   projector screen.

                                  Panel Key Lock
                                    This handy feature will help you keep presentations glitch-free by preventing accidental button presses from activating the associated function.

                                    Quick Auto Search
                                    The MP512 will automatically scan for attached video sources, sparing you the hassle of manually locating them. Just plug in the source and almost instantly your show is ready to go.

                                    Closed-captioning Support
                                    Display subtitles in video content without the need for an external closed-captioning device. Perfect for viewing in noisy environments, language learning, and other situations where a transcript of onscreen dialog is desirable.



                                   |



                                  Specifications


                                      Native Resolution  |
                                      SVGA (800 x 600)  |


                                      Projection System  |
                                      DLPTM technology by Texas   Instruments®  |


                                      Brightness  |
                                      2200 ANSI lumens  |


                                      Lamp  |
                                      185W, 3000/4000 hours(Normal/Eco)  |


                                      Contrast Ratio  |
                                      2500:1 (Full on/Full off)  |


                                      Weight  |
                                      4.9 lbs (2.2 kg)  |


                                      Noise Level  |
                                      31/26 dB (Normal/Economic mode)  |


                                      Resolutions Supported  |
                                      VGA(640 x 480) to SXGA(1280 x 1024)  |


                                      Dimensions (WxHxD)  |
                                      10 x 3.5 x 8.4 inch (255 x 90 x 214 mm)  |


                                      Image Size  |
                                      25” to 300”  |


                                      Throw Ratio  |
                                      2.0:1  |


                                      Zoom Ratio  |
                                      Fixed  |


                                      Lens  |
                                      F= 2.6 f=22mm  |


                                      Display Colours  |
                                      Full 16.7 million colour palette  |


                                      Aspect Ratio  |
                                      4:3 Native /16:9 selectable  |


                                      Horizontal Frequency (KHz)  |
                                      31 - 82 kHz  |


                                      Vertical Scan Rate  |
                                      48 - 85 Hz  |


                                      Projection Position  |
                                      Front/Rear, Table/Ceiling  |


                                      Input Terminals  |
                                      PC :
                                        Analog RGB: D-sub 15 pin x 1

                                        A/V :
                                          Component   Video: D-sub 15 pin (Shared with Analog RGB connector)
                                          S-Video: Mini Din 4   pin x 1
                                          Composite Video: RCA x 1
                                          CONTROL:
                                        RS232 9 pin Type 1  |


                                      Output Terminals  |
                                      PC :D-sub 15 pin X 1  |


                                      Video Compatibility  |
                                      NTSC, PAL, SECAM  |


                                      Auto Switching Power Supply  |
                                      100 to 240 VAC, 50 to 60 Hz  |


                                      Power Consumption  |
                                      Max 280W, Standby Max 5W   |


                                      On-Screen Display Language  |
                                      English/ French/ German/ Italian/ Spanish/ Russian/   Traditional Chinese/ Simplified Chinese/ Japanese/ Korean/ Swedish/ Dutch/   Turkish/ Czech/ Portuguese / Thai/ Polish  |


                                      Preset Modes / Application Modes  |
                                      PC Input:
                                        Dynamic Mode
                                        Presentation Mode
                                        sRGB
                                        Cinema Mode
                                        User 1 Mode
                                        User 2 Mode
                                        A/V Input   :
                                        Dynamic Mode
                                        Standard Mode
                                        Cinema Mode
                                        User 1 Mode
                                        User 2   Mode  |


                                      Features  |
                                      BrilliantColorTM
                                        3D Color Management
                                        Wall   color correction
                                        Quick Auto Search
                                        Time Controller
                                        Presentation Timer
                                        Closed Caption
                                        Standby D-Sub Output
                                        Baud Rate Change
                                        Resolution   Reminder
                                        Panel Key Lock
  "Q?" Hot Key for FAQ
                                        Power On/Off Ring   Tone
                                        11 sets of Picture Mode
                                        Auto Phase Adjustment
                                        Blank @ ECO   mode
                                        Quick Cooling
                                        Auto Off
                                        Security Password
                                        High Altitude   Mode  |


                                      Accessories (Standard)  |
                                      Quick start guide
                                        Manual CD
                                        Remote control   w/battery
                                        VGA cable
                                        PWR cord  |




                                      Supplied Accessories

  |


                                      Remote  |


                                       |





                                      | Optional Accessories  |
                                        |



                                                                                |

                                      |

                                        [
  |
                                       Extended Warranty
                                           |




    Program Coverage:
    - LCD & DMD pixels are covered only as per original manufacturer's pixel terms & conditions
    - Does not cover Cords, Power Adapter
    - Does not cover consumable items such as projector globes  |


                                      | + 3 Year On-Site Extended Warranty (up to 5 years total)  |
                                      $120 |


                                      | + 2 Year On-Site Extended Warranty  |
                                      $90 |


                                      | + 1 Year On-Site Extended Warranty  |
                                      $75 |



                                                                                |

                                      |
                                         |

                                         Premium VGA Monitor Cable (15HDM/15HDM)    |







                                          Aus Wide Delivery: $15

                                       |



                                         Heavily shielded coaxial RGB cable giving you a crisper display at higher resolutions!




                                            | .  |
                                            Features UL Approved Cabling  |


                                            | .  |
                                            Filters included on both ends cutting down on noise  |


                                            | .  |
                                            Maintains stronger signals using a shielded cabling run.  |


                                            | .  |
                                            Comes in 15pin D-sub format with Male to Male conectors  |


                                            |   |
                                              |



                                         |






                                       |

                                       |
                                      BenQ Projector Soft carry bag 4G.01203.001  |



  |


                                                                              Optional Carry Bag for these BenQ   Projectors
                                        MP510, MP511, MP511+, MP512, MP512ST,MP522,MP522ST |






                                                                                |

                                      |
                                         |

                                       Viewsonic  WPG-350  Wireless Presentation Gateway   |


                                          Pick Up Avail.


        |


                                      - Upgrade any Projector To Wireless
                                        - Fully compatible with both Windows and Mac® OS
- Supports resolutions up to 1024x768 and full-motion
                                          video up to 1080p
- Presentation remote for total conference control
- Equipped with VGA pass-through for an extra display |



                                                                                |

                                      |
                                         |

                                          BenQ D-SUB VGA - HDTV Component Video Adapter Cable   |



                                            Insured Delivery: $13
        Pick Up Avail.


                                          |


                                        - 15 pin D-sub to Component Cable.
    - Connect to a HDTV Set Top box, DVD player, or games console
    - Converts to Component inputs for a higher quality picture.
    - Works in conjuction with Benq projectors.  |



                                                                                |

                                      |
                                       |

                                         Grandview Universal Projector Ceiling Mount   |



                                            Insured Delivery: $16
          Pick Up Avail.


                                          |


                                        -Direct to ceiling mount
-Suits most projectors with 3 or 4 mounting holes      - GVMBC = BLACK
    - GVMWC = WHITE
  |



                                                                                |

                                      |
                                         |

                                         Grandview GVMBE & GVMWE Extension Pole for Grandview Mount.   |



      Insured Delivery: $16
      Pick Up Avail.


  |


                                       - Suites the above Grandview projector mount
- Offers either a 500 or 1000mm drop.
- Available in white, silver and black      - GVMBE = BLACK
    - GVMWE = WHITE

- (extension pole only, can only be used with above Hang It Ceiling mount)  |


                                      |   |
                                        |

                                    |

                                                          |






                      |
