Quick Facts: |
|
Epson EH-TW5300 Throw Distance Chart (Examples for common Sizes) |
Image Size |
Installation Distance
(Approx. To Lens) |
92" (16:9) 2030x1140mm |
From 2.5m to 3.0m |
100" (16:9) 2130x1200mm |
From 2.7m to 3.3m |
110" (16:9) 2435x1370mm |
From 3.0m to 3.6m |
120" (16:9) 2580x1450mm |
From 3.2m to 3.9m |
|
SPECIFICATIONS
Native Resolution: WUXGA 1920 x 1080 16:9
Brightness: 2200 ANSI Lumens
Maximum Contrast: 35,000:1
Weight: 2.9kg
Fan Noise: 27db
Warranty: 2 Years (+1 Year $100)
Lamp Warranty: 12 months / 750 hours
Lamp Life Up To: 7,500hrs
|
FEATURES
- 2x HDMI Connection
- MHL Compatible
- Horizontal & Vertical Keystone
- 3D Capable(3D glasses required)
- Frame Interpolation
- 2D to 3D Conversion
- USB stick reader (jpeg only)
- 5W Speaker Inbuilt
|
Epson EH-TW5300 Reviews: (Aka Home Cinema 2040) |
|

|
"This Epson is bright enough to use as a general Home Entertainment projector. That translates to having enough horsepower to be used in less than ideal rooms, with some ambient light present. Right off the bat, it’s really great for sports which is a typical use in such rooms, be it a living room, bonus room, or spare bedroom. And don’t forget, it’s small enough, light enough, and has a built in speaker, so that you can take it outside for those nighttime summer movie festivals – or whatever else you like.
At the same time, it’s not so bright that it can’t be used in a fully darkened room, aka, a home theater or cave. That is a problem for some very bright projectors. Versatile!
" |
|

Performance |
     |
Features |
     |
Ease Of Use |
     |
Value |
     |
|
"The Home Cinema EH-TW5300 has the same smooth, natural, balanced picture found on the EH-TW5200, as well as the same inexpensive lamp replacements. However, it also includes a number of features (Frame Interpolation, Detail Enhancement, 2D to 3D conversion) normally found only on more expensive projectors. And gamers will be thrilled to hear that it has less input lag than most other projectors, marking a significant improvement for Epson and making the EH-TW5300 an excellent gaming machine." |
|
KEY FEATURES & BENEFITS
Amazing Colour Brightness – Up to 3x brighter colours than 1-chip DLP projectors*.
High Definition 1080p – For Full HD movies, games and more — up to 300" on virtually any wall or screen.
Wide Ranging Connectivity – Connect to virtually any device.
Mobile High Definition Link (MHL) – Simply connect your MHL compatible smart device with an MHL cable to enjoy content from your smartphone or tablet, including movies, games and more.
Detail Enhancement – Makes DVDs and standard definition content come alive.
Frame Interpolation – For smoother, sharper and more realistic action scenes.
Exciting 3D Adventures – Delivers eye-popping 3D entertainment at home with RF 3D glasses (sold separately).
2D-to-3D Conversion – Easily transform 2D images to spectacular 3D for unlimited 3D content.
Low Cost of Ownership – Long life, cost efficient lamps and a High Efficiency Filter extends the life of your projector and allows for hassle free maintenance.
New Home Screen – A new simple home screen, puts all the most commonly used functions at your fingertips.
Easy Setup – Getting started is easy with image adjustment tools and a built in 5W speaker.
2 Year Projector Warranty – Enjoy peace of mind.
3LCD Technology
All Epson projectors are based on 3-chip LCD technology for amazing colour, incredible detail and solid reliability. 3LCD’s 3-chip architecture dedicates an entire chip to process each primary colour – red, green and blue, continuously. Unlike single-chip technology that delivers colour sequentially, you get full-time colour. The result is vibrant, realistic images and video all delivered with 3LCD’s true-to-life colour.
3x Brighter Colours with Epson*
Brilliant image quality requires high colour brightness (colour light output), and Epson® 3LCD projectors have 3 x Brighter Colours than leading competitive projectors*. One brightness measurement (lumens) is not enough. A projector's specification needs to show both high colour brightness and high white brightness. If colour brightness is lower than white brightness, images may be dark, dull and lose detail. If not provided, be sure to ask for a projector's colour brightness specification.
* Compared to leading 1-chip DLP business and education projectors based on NPD data, July 2011 through June 2012. Colour brightness (colour light output) measured in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions.
Amazing Full HD 1080p Entertainment
1080p resolution ensures an amazing, larger-than-life HD experience, while high colour brightness delivers bright, vibrant image quality – whether it’s a blockbuster movie, live sporting event or videogame.
Project on virtually any wall or screen
Turn your garage into a man cave, host exciting backyard movie nights, or enjoy the big game; Project up to 300" on virtually any wall or screen. |
 |
Wide Ranging Connectivity
Connect from virtually any device, making your entertainment simple and more accessible.
MHL — The latest in connectivity
Turn your projector into a smart display with instant access to movies, games and more:
Works with MHL-enabled smartphones and tablets
Use the projector remote to control MHL-enabled devices
Supports Full HD 1080p video and 7.1 audio
Simultaneously charge your MHL-enabled device when it’s plugged into the projector |
 |
Detail Enhancement
Makes DVDs and standard definition content come alive via its mixed colour separation techniques and imaging simulation. It delivers crisp, clear images with super high-quality resolution. It also sharpens blurry images that have been enlarged by a general upscaling process.
Frame Interpolation
Film is encoded on Blu-ray at 24 frames per second. FineFrame deconstructs and reconstructs these sources for a 1080p frame rate output of up to 120Hz, virtually eliminating flicker and frame-to-frame judder. The 4:4 pulldown function also makes corrections for improperly encoded sources, and features a reverse 2:3 pulldown detection and correction function.
Exciting 3D Adventures
Enjoy thrilling 3D adventures right in the comfort of your living room. With RF 3D glasses (sold separately), the EH-TW5300 puts you right in the middle of the action.
 |
Rechargeable RF 3D Glasses (Optional)
Enjoy 3D adventures from any seat in the house. Line of sight is not required with the included RF 3D glasses. Rechargeable for up to 40 hours of battery life, these innovative glasses have a 3-minute quick-charge feature for up to 3 hours of battery life. |
2D-to-3D conversion
Transform any 2D movie, from the latest science-fiction adventure to your favourite classic, to spectacular 3D. Or, watch the big game in exciting 3D. The TW5300 makes it easier than ever with convenient 2D-to-3D conversion. With just the touch of a button, you can watch your favourite shows and movies in eye-popping 3D. There are no special discs required. And, the possibilities are endless.
Low Cost of Ownership
With an increased lamp life in ECO mode of 7,500 hours, it is now easier and more economical than ever to run your home theatre projector. The TW5300 projector also utilises a low lamp price and makes use of a new High Efficiency Filter; extending the life of your projector and allowing for hassle free maintenance.

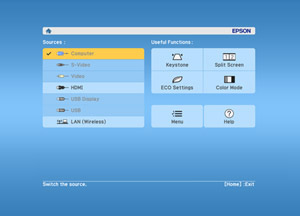

New Home Screen
A new simple and intuitive home screen puts all the most commonly used functions at your fingertips, making it easier than ever to find the functions you need.
You can also customise the home screen, adding the functions you use most so they’re always easy to find.
Built in Speaker
A built in 5W speaker makes watching movies on the go hassle free |
 |
Connectivity Panel
|
Specifications
PRODUCT NAME |
Epson EH-TW5300 |
PRODUCT CODE |
V11H707053 |
WHAT'S IN THE BOX |
|
|
EH-TW5300 Projector, 3m Power Cable, Remote Control, 2 x AA Batteries, Manual, Projection Software CDROM |
TECHNOLOGY |
|
Projection System |
RGB liquid crystal shutter projection system |
LCD Panel |
0.61-inch wide panel (D9, C2Fine, 10Bit) |
OPTICAL |
|
Zoom |
1 - 1.2 (Optical) |
Screen Size |
34" to 332" [0.91 to 9.11 m] (Zoom: Wide)
34" to 332" [1.09 to 10.94 m] (Zoom: Tele) |
Projection Distance |
60" screen 1.62 - 1.95 m |
Throw Ratio |
1.22 (Zoom: Wide), 1.47 (Zoom: Tele) |
Projection Lens F Number |
1.58-1.72 |
Projection Lens Focal Length |
16.9 mm-20.28 mm |
Focus Method |
Manual |
IMAGE |
|
Colour Light Output |
2,200 Lumens |
White Light Output |
2,200 Lumens |
Resolution |
1080p |
Native Aspect Ratio |
16:9 |
Contrast Ratio |
35,000:1 |
Lamp Hours |
Normal: 4,000 Hours
Eco: 7,500 Hours |
Lamp Type |
200 W UHE |
Keystone Correction (With Std Lens) |
Vertical: -30 to +30 degrees
Horizontal: -30 to +30 degrees |
Colour Reproduction |
Up to 1.07 billion colours |
Colour Processing |
10 bit |
CONNECTIVITY |
|
Input: Video |
1 x RCA (Yellow) |
Input: Computer |
1 x D-sub 15-pin (RGB) |
Input: Digital |
2 x HDMI (1 x MHL) |
Input: Audio |
1 x RCA (Red/White), 1 x HDMI |
Input: Control |
1 x USB Type B |
Wireless Connectivity |
- |
Output: Audio |
1 x Stereo mini-jack |
Speaker Output |
5W |
ADVANCED FEATURES |
|
MHL - Mobile High Definition Link |
Yes |
3D Formats |
Top-and-Bottom, Side-by-Side |
2D to 3D Conversion |
Yes |
Detail Enhancement |
Yes |
Frame Interpolation |
Yes |
AV Mute |
Yes |
Direct Power On |
Yes |
Security |
Kensington® – style lock provision Padlock & Security cable hole |
Colour Modes |
2D: Dynamic, Bright Cinema, Natural, Cinema
3D: 3D Dynamic, 3D Cinema |
GENERAL |
|
Dimensions D x W x H |
249 x 297 x 119 mm |
Weight |
Approx. 2.9kg |
Lamp Warranty |
1 Year or 750 Hours* |
Projector Warranty |
2 Years |
Power Consumption: Lamp on |
291 W |
Power Consumption: Standby |
0.28 W |
Noise Level |
Normal / Eco: 37 / 27 dB |
|
|
