Epson EB-2247U LCD High Brightness Full HD Projector
|
|
|

 |



|

|
FOR THE CURRENT RANGE CLICK HERE
|
Quick Facts: |
|
Epson EB-2247U Throw Distance Chart (Examples for common Sizes)
Throw Ratio: 1.39-2.23:1 |
Image Size |
Installation Distance
(Approx. To Lens) |
83" (16:10) 1790x1120mm |
From 2.5m to 3.9m |
98" (16:10) 2110x1320mm |
From 3.0m to 4.7m |
118" (16:10) 2540x1590mm |
From 3.6m to 5.6m |
|
SPECIFICATIONS
Native Resolution: WUXGA 1920 x 1200 16:10
Brightness: 4200 ANSI Lumens
Maximum Contrast: 15,000:1
Weight: 3.2kg
Fan Noise: 37 / 28db (eco)
Warranty: 3 Years (+1 Year $129)
Lamp Warranty: 12 months / 750 hours
Lamp Life Up To: 12,000hrs |
FEATURES
- Vertical & Horizontal Keystone
- Powerful 16W Speaker
- 1.6x Zoom
- 2x HDMI Connection
- MHL Compatible
- USB to laptop Connection
- Instant Off
- Presentation Wireless - Included
- WiDi and Miracast Compatible |
Epson EB-2247U Corporate Multimedia Projector
The Epson EB-2247U is a revolutionary combination of high brightness for lit rooms, high zoom for installation flexibility, long lamp life for low cost of ownership and fantastic wireless connectivity. All this backed by a 3 year warranty and a compact chassis combines for a great solution for any bright meeting/conference room.
KEY FEATURES & BENEFITS
- 3 x Brighter Colours and Reliable Performance* – 3LCD, 3-Chip Technology. Look for both high colour brightness and high white brightness.
- Amazing Colour Brightness – 4,200 lumens colour and 4,200 lumens white brightness.
- Brilliant Full High Definition Resolution – Enjoy clear and sharp image quality of full high definition content without any distortion with WUXGA (1920 x 1200) resolution, which is suitable for presentations, videos, digital signage and more.
- Miracast – Project your smartphone or tablet screens without a cable connection.**
- Wireless LAN Enterprise Security – Connect projectors in a secure wireless network environment.**
**May not work with rights of certain streaming apps e.g. Netflix etc
- Epson iProjection – Wirelessly display and control from your iPhone®, iPad® or iPod Touch®, Android™, and Chromebook devices**
- Low Cost of Ownership – Long life, cost efficient lamp and a high efficiency filter extends the life of your projector and allows for hassle free maintenance.
- Auto Power on – Simply plug-in HDMI, USB or VGA cable to turn the projector on.
- Built in Speaker – Presenting is easy with a built in speaker.
- 3 Year Projector Warranty – Enjoy peace of mind.
High Brightness
The Epson EB-2247U has been designed with a lights on 4200 lumen brightness which eliminates the need to dim or turn off room lighting. The high brightness design is matched with a high contrast of 15,000:1 so you still get good black levels and deep shading ensuring a rich powerful image in a lit room.
3LCD technology
All Epson projectors are based on 3-chip LCD technology for amazing colour, incredible detail and solid reliability. 3LCD's 3-chip architecture dedicates an entire chip to process each primary colour – red, green and blue, continuously. Unlike single-chip technology that delivers colour sequentially, you get full-time colour. The result is vibrant, realistic images and video all delivered with 3LCD's true-to-life colour. |
 |
 |
Brilliant high definition image up to 300"
The EB-2247U is designed for High Definition content including video, small text and even fine lines or complex graphs. With a WUXGA resolution of 1920 x 1200 the EB-2247U will display your presentation flawlessly with a sharp clear image.
|
Collaborative Presenting
Multiple users can connect simultaneously to one projector using EPSON iProjection software which allows you to display four individual PC screens simultaneously over the network (wired or wireless), with up to 50 users connected to the same projector. You can drag and drop participants into or out of one of the four quadrants. This feature is a great tool for meetings or classroom projects where multiple users want to present and compare their screens. You can also connect up to four remote projectors at the same time and show the same multi-screen image; another great tool for remote meeting setups.
With the EPSON iProjection App, you can even display and control content from your iPhone®, iPad®, Android™, and Chrome devices. Just turn on the projector, use the Epson iProjection App to scan the on-screen QR code, and share content on the big screen. |
 |
V/H keystone
The EB-2247U features both vertical and horizontal keystone correction so is the perfect choice even if you are having to place or install the projector up high, down low or off to the side. |
 |
Auto power on feature
The projector starts automatically upon connecting a VGA*, HDMI**, or USB cable to the device itself. This feature means you no longer have to use the power on button because startup is activated with cable insertion.
*VGA auto power on is available with Computer 1 only
**HDMI auto power on is available with HDMI1 only |
 |
New home screen
The EB-2247U features a new more intuitive home screen. This new design offers quick and easy access to a variety of useful functions. Also, all input source information can be seen at a glance. Wireless connections can be made easily because all the information you need is right there on the screen. |
 |
 |
EasyMP Multi-PC projection
The EasyMP Multi PC Projection application makes it possible to connect with up to 50 computers and partition the screen for split screen projection.
The moderator can select up to 4 of the connected devices and project their screens from the projector, maintaining control and preventing interference with the projected screen. |
Split Screen
Split Screen allows you to display content from two inputs simultaneously, side by side, on a single screen. With three layout options you can display video and presentation materials, and run video on both screens.
Longer lamp life
The Epson EB-2247U is an economical projector to run even is a heavy usage environment. With a lamp priced in at only $79rrp it has a class leading lamp price. On top of that it has a long lamp life to you have long intervals between changing lamps. With a 5,500 hour life on high brightness mode and up to 12,000 hours on economic mode the EB-2247U is the perfect choice to keep costs down. |
 |

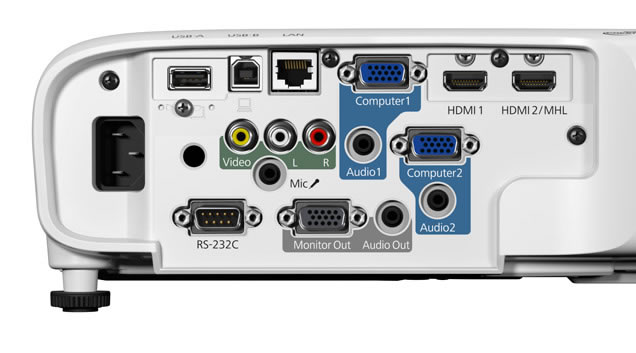

Connectivity Panel

|
Specifications
PRODUCT NAME |
EB-2247U |
PRODUCT CODE |
V11H881053 |
WHAT'S IN THE BOX |
|
|
Projector, 1.8m power cable, 1.8m computer cable, remote control, 2 x AA batteries, |
TECHNOLOGY |
|
Projection System |
Epson 3LCD, 3-chip technology |
LCD Panel |
0.63-inch (D10) |
OPTICAL |
|
Zoom |
1 - 1.6 Optical |
Screen Size |
30" to 300" [0.83 to 8.54 m] (Zoom:Wide)
30" to 300" [1.36 to 13.86 m] (Zoom:Tele) |
Projection Distance |
60" screen 1.79 m - 289 m |
Throw Ratio |
1.39 (Zoom: Wide), 2.23 (Zoom: Tele) |
Projection Lens F Number |
1.50 - 1.90 |
Projection Lens Focal Length |
20.3 mm - 32.5 mm |
Focus Method |
Manual Focus |
Offset |
10.0:1 |
IMAGE |
|
Colour Light Output |
4,200 Lumens |
White Light Output |
4,200 Lumens |
Resolution |
WUXGA |
Native Aspect Ratio |
16:10 |
Contrast Ratio |
15,000:1 |
Lamp Hours |
Normal/Eco: 5,500 Hours/12,000 Hours |
Lamp Type |
210W UHE |
Keystone Correction |
Vertical: -30 to +30 degrees
Horizontal: -30 to +30 degrees |
CONNECTIVITY |
|
Input: Video |
1 x RCA (Yellow), 2 x Component (via D-sub 15-pin) |
Input: Computer |
1 x D-sub 15-Pin (RGB), 1 x USB 2.0 type B |
Input: USB Memory Device |
USB Type A |
Input: Three-In-One USB Display |
1 x USB 2.0 type B |
Input: Digital |
2 x HDMI (1 x MHL) |
Input: Audio |
2 x RCA (Red/White), 2 x Stereo mini jack |
Input: Control |
1 x USB 2.0 type B, RS232C |
Input: Epson USB Document Camera |
1 x USB 2.0 type A |
Wireless LAN |
Included (Built in) |
WiDI/Miracast |
Included |
Speaker Output |
16W |
ADVANCED FEATURES |
|
Epson Projector Management |
Yes |
Epson iProjection |
Yes |
PC Free Presentations |
Yes |
USB Plug 'n Play |
Yes |
AV Mute Slide |
Yes |
Split Screen |
Yes |
Instant Off |
Yes |
Auto Power On |
Yes |
Direct Power On/Off |
Yes |
Security |
Kensington®-style lock provision
Padlock
Security cable hole
Optional Wireless LAN Unit Lock
Password protect function |
Colour Modes |
Dynamic
Presentation
Cinema
sRGB
Blackboard |
GENERAL |
|
Dimensions D x W x H (excluding feet) |
282 x 309 x 90 mm |
Weight |
3.2kg approximate |
Compatible Lamp Model |
ELPLP96 |
Lamp Warranty |
12 months or 750 hours* |
Projector Warranty |
3 Years |
Power Consumption: Lamp on |
Normal/Eco: 330W/225W |
Noise Level |
Normal/Eco: 37/28dB |
|
|
|
Optional Accessories |
|
|
Extended Warranty For Projectors
|
All Programs come with:
- GM Multimedia Extended Warranty ID Number (must be retained)
- GM Multimedia claim instructions and terms & conditions
- Does not cover consumable items or accessories such as projector globes or remotes |
[More Information] |
|
|
|
|
|
|
Universal Flush Projector Ceiling Mount FB-1 *Recommended* |
White - $149 |
|
Black - $149 |
|
|
|
SPECIFICATIONS
Available in BLACK (FB-1B) and WHITE (FB-1W)
• Swivel: 360°, Adjustable roll, pitch and yaw.
• Rigid Steel construction.
• Durable powder-coated finish (Black or White).
• Supports up to 10kgs.
• Mounting hardware included.
• User manual included.
• All bracket models come standard with 4 x mounting arms.
|
FEATURES
- Direct to ceiling mount (150mm)
-
Suits most projectors with 3 or 4 holes
|
 |
