Quick Facts: |
|
Epson EB-2155W Throw Distance Chart (Examples for common Sizes) |
Image Size |
Installation Distance
(Approx. To Lens) |
83" (16:10) 1790x1120mm |
From 2.5m to 4.0m |
98" (16:10) 2110x1320mm |
From 3.0m to 4.7m |
118" (16:10) 2540x1590mm |
From 3.6m to 5.7m |
|
SPECIFICATIONS
Native Resolution: WXGA 1280 x 800 16:10
Brightness: 5000 ANSI Lumens
Maximum Contrast: 15,000:1
Weight: 4.5kg
Fan Noise: 39 / 29db (eco)
Warranty: 3 Years (+1 Year $129)
Lamp Warranty: 12 months / 750 hours
Lamp Life Up To: 10,000hrs |
FEATURES
- Vertical & Horizontal Keystone
- Powerful 16W Speaker
- 1.6x Zoom
- 2x HDMI Connection
- MHL Compatible
- USB to laptop Connection
- USB reader (JPEG, GIF, BMP, AVI)
- Instant Off
- Presentation Wireless - Included
|
Epson EB-2155W Corporate Multimedia Projector
The powerful EB-2155W is engineered for a bright vibrant image. With a HD resolution and 5000 lumens brightness the EB-2155W is perfect in a well lit environment and with a selection of wired inputs and inbuilt wireless is a very versatile machine. The added flexibility of a 1.6x zoom and both horizontal and vertical keystone correction means the EB-2155W is very flexible for tricky installations.
KEY FEATURES & BENEFITS
- 3 x Brighter Colours and reliable performance* – 3LCD, 3-Chip Technology. Look for both high colour brightness and high white brightness
- Crisp Clear Resolution – WXGA image resolution (1280 x 800)
- Versatile Connectivity – Easily integrate with any system with HDMI and MHL
- Endless Wireless Functionality – Wi-Fi **Not for full motion video
- Gesture Presenter – Simply move your hand in front of the presentation
- Split Screen – simultaneously project two images, video or still, side by side, from two different sources
- USB Display Function – Project via a simple USB cable connection without having to change the monitor output setting on the PC
- Automatic Setup – The Automatic Screen Fit function adjusts focus, zoom, horizontal and vertical keystone all at the touch of a button
- Remote Network Monitoring and Control – Plus Message Broadcasting and built-in schedule functions with EasyMP® software / Multi-PC Projection
3x Brighter Colours with Epson*
Brilliant image quality requires high colour brightness (colour light output), and Epson® 3LCD projectors have 3 x Brighter Colours than leading competitive projectors*.
One brightness measurement (lumens) is not enough. A projector‘s specification needs to show both high colour brightness and high white brightness. If colour brightness is lower than white brightness, images may be dark, dull and lose detail. If not provided, be sure to ask for a projector’s colour brightness specification.
*Compared to leading 1-chip DLP business and education projectors based on NPD data, July 2011 through June 2012. Colour brightness (colour light output) measured in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions.
3LCD technology
All Epson projectors are based on 3-chip LCD technology for amazing colour, incredible detail and solid reliability. 3LCD's 3-chip architecture dedicates an entire chip to process each primary colour – red, green and blue, continuously. Unlike single-chip technology that delivers colour sequentially, you get full-time colour. The result is vibrant, realistic images and video all delivered with 3LCD's true-to-life colour. |
 |
 |
Brilliant high definition image up to 300"
Featuring native resolution up to WXGA (1280 x 800), the Epson EB-2000 series delivers high quality images and crisp, sharp text without any distortion.
Images can be projected on a large screen with no information left out. This applies to video output devices such as PCs and smart devices with their ever increasing image quality and higher definition and accommodates a variety of content including 3D CAD, digital broadcasts, Blu-ray, and internet movies. |
High brightness
Even though its light weight and compact size enables it to be carried from room to room, the projector is capable of highly visible images thanks to its high brightness (up to 5,000lm) and superior 15,000:1 contrast ratio. Room lights don't have to be dimmed to see bright and clearly projected images, allowing meeting participants to concentrate better for improved meeting productivity.
Auto V/H keystone and screen fit
In cases where the image extends beyond the frame of the screen or whiteboard you just have to push the "Screen Fit" button and the image frame automatically matches up with the edges of the screen. |
 |
Epson iProjection App
Display and control content from your iPhone, iPad or iPod touch, Android and Chrome devices with the Epson iProjection App. This free application allows road warriors to travel light and present from their mobile devices. The app is easy to use and intuitive menu options bring your content to the bigger screen. |
 |
Auto power on feature
The projector starts automatically upon connecting a VGA*, HDMI**, or USB cable to the device itself. This feature means you no longer have to use the power on button because startup is activated with cable insertion.
*VGA auto power on is available with Computer 1 only
**HDMI auto power on is available with HDMI1 only |
 |
Gesture presentation
Present smarter with newly added ‘gesture presentation’ function. Simply move your hand in front of the arrows, and make your presentation more engaging and realistic with the audience. |
 |
Split Screen
Split Screen allows you to display content from two inputs simultaneously, side by side, on a single screen. With three layout options you can display video and presentation materials, and run video on both screens.
New home screen
New home screen offers quick and easy access to a variety of useful functions. Also, all source information, no matter what the source input is, can be seen at a glance. Wireless connections can be made easily because all the information you need is right there on the screen. |
 |
 |
EasyMP Multi-PC projection
The EasyMP Multi PC Projection application makes it possible to connect with up to 50 computers and partition the screen for split screen projection.
The moderator can select up to 4 of the connected devices and project their screens from the projector, maintaining control and preventing interference with the projected screen. |
EasyMP Monitor
With EasyMP Monitor, Epson's network monitoring and control software, a single PC can see which projectors are available and if they are running efficiently, even across the biggest of networks. This series can be configured remotely, with instant email alerts for pre-defined critical indicators such as non-functioning devices or overheating lamps. Each projector's serial number can also be accessed remotely via LAN/serial connection.
Wireless LAN Enterprise security
The EB-2000 series projectors now include ‘WPA-Enterprise security' mode to connect in robust integrated network environment; compatible with WPA, WPA2-PSK and WPA2-EAP security protocols.
PC Free Presentations With USB Meadia Reader
Easily present basic files from a memory stick without the need for a media player or computer. Image files and even video can be presented directly from a memory stick for extra versatility and portabilty. For best results format the stick file format to Fat16/32. File format and size limits apply see manual for more details. |
 |
Longer lamp life
The long 10,000H* lamp life saves time and money by reducing the frequency of costly lamp replacements.
*Power Consumption: ECO mode |
 |

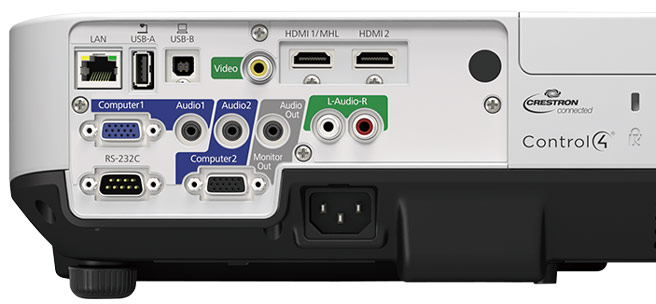

Connectivity Panel

|
Specifications
PRODUCT NAME |
Epson EB-2155W |
PRODUCT CODE |
V11H818053 |
EAN |
9314020623783 |
TECHNOLOGY |
|
Projection System |
Epson 3LCD, 3-chip technology |
LCD Panel |
0.59-inch panel |
OPTICAL |
|
Zoom |
1-1.6 (Optical Zoom) |
Screen Size |
29" to 280" [0.85m to 8.45 m] (Zoom: Wide)
29" to 280" [1.40m to 13.71 m] (Zoom: Tele) |
Projection Distance |
60" screen 1.79m - 2.92m |
Throw Ratio |
1.38 (Zoom: Wide), 2.24 (Zoom: Tele) |
Projection Lens F Number |
1.51 - 1.99 |
Projection Lens Focal Length |
18.2mm - 29.2mm |
Focus Method |
Manual Focus |
Offset |
10:0 |
IMAGE |
|
Colour Light Output |
5,000 Lumens |
White Light Output |
5,000 Lumens |
Resolution |
WXGA |
Native Aspect Ratio |
16:10 |
Contrast Ratio |
15,000:1 |
Lamp Hours |
Normal/Eco: 5,000/10,000 Hours |
Lamp Type |
300W UHE |
Keystone Correction |
Vertical: -30 to +30 degrees
Horizontal: -30 to +30 degrees |
CONNECTIVITY |
|
Input: Video |
1 x RCA (Yellow) |
Input: Computer |
2 x D-sub 15-Pin (RGB), 1 x USB 2.0 type B |
Input: USB Memory Device |
1 x USB Type A |
Input: Three-In-One USB Display |
1 x USB 2.0 type B |
Input: Digital |
2 x HDMI (1 x MHL) |
Input: Audio |
1 x RCA (Red/White), 2 x Stereo mini jack |
Input: Control |
1 x USB 2.0 type B, 1 x RS232C |
Input : HDBaseT |
NA |
Input: Epson USB Document Camera |
1 x USB 2.0 type A |
Network I/O: |
1 x RJ45 (100Mbps) |
Wireless Connectivity |
Included |
WiDI/Miracast |
NA |
Output: Video |
1 x D-sub 15 pin (black moulding) |
Output: Audio |
1 x Stereo mini jack |
Speaker Output |
16W |
ADVANCED FEATURES |
|
EasyMP Network & Control |
Yes |
EasyMP Network Projection |
Yes |
PC Free Presentations |
Yes |
USB Plug 'n Play |
Yes |
AV Mute Slide |
Yes |
Instant Off |
Yes |
Auto Power On |
Yes |
Direct Power On/Off |
Yes |
Security |
Padlock & Security Cable Hole
Kensington®-style lock provision
Wireless LAN Unit Lock
Password protect function |
Colour Modes |
Dynamic, Presentation, Cinema, sRGB, Blackboard, DICOM SIM |
GENERAL |
|
Dimensions D x W x H (excluding feet) |
291 x 377 x 101 mm |
Weight |
4.5kg (approximate) |
Compatible lamp model |
ELPLP95 (New) |
Lamp Warranty |
12 months or 750 hours* |
Projector Warranty |
3 Years |
Power Consumption: Lamp on |
Normal/Eco: 420/350W |
Power Consumption: Standby |
0.5W (communication off) |
Noise Level |
Normal/Eco: 39/29dB |
|
|
