| Quick Facts: |
                            |


                              | BenQ W1120 Throw Distance Chart (Examples for common Sizes) T/R 1.15-1.5:1 |


                              | Image Size  |
                              Installation Distance
                                (Approx. To Lens) |


                              | 92" (16:9) 2030x1140mm  |
                              From 2.4m to 3.0m |


                              | 100" (16:9) 2130x1200mm  |
                              From 2.5m to 3.2m |


                              | 110" (16:9) 2435x1370mm |
                              From 2.8m to 3.6m |


                              | 120" (16:9) 2580x1450mm |
                              From 2.9m to 3.8m |

                              |


                           SPECIFICATIONS
                            Native Resolution: WUXGA 1920 x 1080 16:9
                            Brightness: 2200 ANSI Lumens
                            Maximum Contrast: 15,000:1
                            Weight: 3.3kg
                            Fan Noise: 29 / 27db (eco)
                            Warranty: 2 Years (+1 Year $119)
                            Lamp Warranty: 6months/750hrs
                            Lamp Life Up To: 7,000hrs   |
                          FEATURES
                                - Rec. 709 Colour Calibration
                                -  Flawless All Glass Optics
                                - 1.3x Zoom
                            - 10% Vertical Lens Shift
                            - Horizontal & Vertical Keystone
                            - 2x HDMI connections
                            - MHL Compatible
                            - Powerfull 10W Speaker
                            - 3D Capable(3D glasses required)
                            - 12 Volt Trigger


                             |

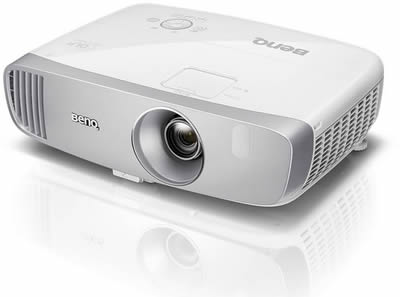

                      BenQ W1120 1080p Home Projector (AKA HT2050A)
                      The W1120 brings a new generation of home theatre technology  into your home at a reasonable price. Experience amazing colour accuracy with  the REC.709 colour standard used for filming Hollywood movies. The W1120 has a  very wide coverage of the REC.709 standard at a staggering >96% providing  true to life colour accuracy. With both horizontal and vertical keystone and 10%  vertical lens shift the W1120 is also flexible enough to be up high down low or  even off to the side with a squared up image. Topped off with a lamp life up to  7000 hours makes the W1120 cheap to keep.

                      key features
  -  Spectacular High Brightness, Full HD 1080p Visual Performance


  - 10% Lens Shift for Extra Installation Freedom


  - Short-Throw Projection (100''@2.5m)


  - Enhanced Chamber Speaker (Powered by MaxxAudio) with Audio Enhancer


  - Ultra-Modern Design & Low Acoustic Noise of 27dBA


Superb Big-Screen Audiovisual Experience
                      BenQ W1120 CineHome series projector brings big-screen Full HD visuals to your living room, with >96% Rec.709 accuracy for authentic cinematic color and short throw for 100” pictures from just 2.5m away without setup hassle. Offering CinemaMaster Audio+ 2 for immersive AV experiences, W1120’s ultra-low input lag and special Game Mode enable epic gaming.
                      Theater-Like Image Quality


                            |
                          See the Wonders of CinematicColor™
                            Bringing out optimal colors for accurate and enhanced images, CinematicColor™ technology delivers Rec.709 HDTV color coverage, 6X speed RGBRGB color wheel, and high native ANSI contrast ratio to ensure incredible image performance with detailed, sharp, and crisp visuals for your home cinema enjoyment.  |




                          Authentic Rec.709 Color Accuracy
                            Rec.709 is the international HDTV standard that guarantees cinematic colors the director intended. With a 6X speed RGBRGB color wheel, W1120 achieves >96% Rec.709 accuracy to authentically reproduce refined colors of original content.  |
                            |



                      Spectacular Full HD 1080p Visual Performance
                      Treat your eyes to the brilliance of W1120’s Full HD 1080p visuals, with amazing detail clarity and sharpness for the finest in-home cinematic experience.


                                              Unparalleled Audiovisual Experience


                            |

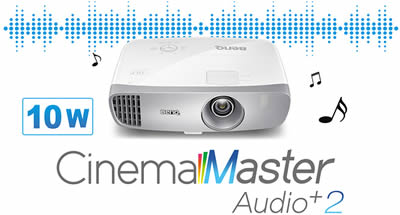

                          Advanced CinemaMaster Audio+ 2 for Massive Sound
                            Upgraded with dramatically wider frequency range for deeply resonant bass and soaring highs, BenQ CinemaMaster Audio+ 2 combines exclusive EQ algorithms for pure stereophonic clarity and exotic materials such as magnesium and rubidium alloys to produce pure vocals, delicate details, and sensual sound quality without distortion or noise.  |




                          Perfect Sound Modes to Fit Any Occasion
                            Custom-tuned sound modes adjust audio characteristics to deliver ideal audiovisual experiences for any type of entertainment, as if you were there live.

                              • Cinema Mode: Immersive bass and high-frequency performance for authentic real-world cinema presence.
                              • Game Mode: Powerful bass and crisp highs to feel heart-pounding excitement of intense gameplay.
                              • Music Mode: Smoothly balanced performance for immersive live reproduction of music and concerts.
                              • Sports Mode: Enhanced mid-frequency and vocals to jump into sports action without missing any detail from announcers.  |
                            |


                      Ultra-Fast Response for Smooth Gaming
                      W1120 brings heart-pounding game action to your living room with 16.67ms low input lag and microsecond DMD response time for ultra-smooth gaming experiences without unwanted motion blur and image lag.







                          Fast Setup with Hassle-Free Installation
                            Short Throw for Big Screens in Any Space
                            Maximize big-screen thrills in minimum space with W1120’s short throw projection, requiring as little as 2.5m to project stunning 100” pictures.  |
                            |


                          Vertical Lens Shift Assist
                            Countering the trapezoid effect when the projector must be placed off-center, such as simple placement on top of a table, the vertical keystone function adjusts the image for a professionally Vertical Lens Shift flexibility allows images to be moved up and down without sacrificing image quality for easy tabletop setup or mounting installation.  |
                            |


                          2D Sideways Keystone
                            Horizontal and vertical keystone correction eliminates trapezoid effects when projecting from a corner or a side table to free up valuable space for active games or comfortable lounging.  |
                            |


                      One-Stop Wireless Home Entertainment
BenQ QCast Mirror HDMI Wireless Dongle enables instant wireless video from smart devices.

                      BenQ DLP® Projectors
                        Perfectly Long Lasting Picture Quality with DLP Projection Technology
                      Digital Light Processing (DLP), awarded 2015 Academy Award of Merit (Oscar® statuette), is the leading projection technology used in 90% of world’s digital cinemas and 100% of IMAX theaters. With DLP dominating the worldwide projector market with over 50% share, BenQ is today the #1 bestselling DLP
                                              Long Lasting
                      The incredibly durable micro-mirrors of the DLP chip and the nearly-sealed DLP engine design mean that BenQ DLP Projectors stand the test of time without any loss in picture quality. Eliminating dust buildup and heat damage, BenQ projectors shine year after year and look as good as new with a simple lamp change.

                      Razor-Sharp
                      Critically acclaimed for industry-leading high contrast, BenQ DLP Projectors also produce the most crisply defined sharpness for crystal-clear details and legible text by maximizing the fill ratio of individual pixels and employing exclusive BenQ SmartEco™ Technology.





                         |



                        Specifications




                                | Display |
                                  |


                                | Projection System |
                                DLP |


                                | Resolution |
                                1080p (1920 x 1080) |


                                | Resolution Support |
                                VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced Blanking |


                                | Brightness (ANSI lumens) |
                                2200 ANSI Lumens |


                                | Contrast Ratio (FOFO) |
                                15000:1  |


                                | Display Color |
                                1.07 Billion Colors |


                                | Native Aspect Ratio |
                                16:9 |


                                | Light Source |
                                Lamp |


                                | Light Source Wattage |
                                240W |


                                | Light Source Life |
                                Normal 3500 hours, Economic 5000 hours, SmartEco 7000 hours |


                                |   |
                                  |


                                | Optical |
                                  |


                                | Throw Ratio |
                                1.15 - 1.5 (100" @ 2.5m) |


                                | Zoom Ratio |
                                1.3x |


                                | Lens |
                                F/# = 2.59 - 2.87, f = 16.88 - 21.88 mm |


                                | Lens Shift |
                                Vertical : +10% |


                                | Keystone Adjustment |
                                2D, Vertical & Horizontal +/- 30 degrees |


                                | Projection Offset |
                                105%±2.5% |


                                | Clear Image Size (Diagonal) |
                                60"~180"  |


                                | Image Size |
                                30''~300'' |


                                | Horizontal Frequency |
                                15 - 102KHz |


                                | Vertical Scan Rate |
                                23 - 120Hz |


                                |   |
                                  |


                                | Picture |
                                  |


                                | Picture Mode |
                                Bright / Vivid TV / Cinema  / Game / User 1 / User 2 / ISF Night / ISF Day / (3D) |


                                | Color Wheel Segment |
                                6-Segment (RGBRGB) |


                                | Color Wheel Speed |
                                6x (50Hz), 4x (60Hz) |


                                | Rec.709 Coverage |
                                96% |


                                |   |
                                  |


                                | Audio |
                                  |


                                | Speaker |
                                Chamber Speaker 10W x 1 |


                                |   |
                                  |



Interface |
                                  |


                                | PC (D-Sub) |
                                1 |


                                | Composite Video in (RCA) |
                                1 |


                                | Component Video In |
                                1 |


                                |  HDMI |
                                 2 ( 1.4a/HDCP1.4) |


                                | USB Type A |
                                1 USB-1 (2.0/ Power Supply)  |


                                | USB (Type mini B) |
                                1 (Service) |


                                | Audio in (3.5mm Mini Jack) |
                                1 |


                                | Audio L/R in (RCA) |
                                1  |


                                | Audio out (3.5mm Mini Jack) |
                                1 |


                                | RS232 (DB-9pin) |
                                1 |


                                | DC 12V Trigger (3.5mm Jack) |
                                1 |


                                | IR Receiver |
                                2 (Front/Top) |


                                | Security Bar |
                                1 |


                                |   |
                                  |


                                | Special Feature |
                                  |


                                | ISF Night/ Day |
                                Yes |


                                | CinemaMaster Audio+2 |
                                Yes |


                                |   |
                                  |


                                | Compatibility |
                                  |


                                | HDTV Compatibility |
                                480i, 480p, 576i, 567p, 720p, 1080i, 1080p |


                                | Video Compatibility |
                                NTSC, PAL, SECAM, SDTV |


                                | 3D Compatibility |
                                Frame Sequential: Up to 720p
                                  Frame Packing: Up to1080p
                                  Side by Side: Up to 1080i/p
                                  Top Bottom: Up to 1080p  |


                                |   |
                                  |


                                | Environment |
                                  |


                                | Power Supply |
                                AC100 to 240V, 50 to 60 Hz |


                                | Typical Power Consumption |
                                353W/110V  |


                                | Standby Power Consumption |
                                < 0.5W |


                                | Acoustic Noise (Typ./Eco.) |
                                29 / 27 dB  |


                                | Operating Temperature |
                                0~40℃ |


                                |   |
                                  |


                                | Dimension and Weight |
                                  |


                                | Dimensions (W x H x D)(mm) |
                                380.5 x 121.7 x 277 mm |


                                | Net Weight (Kg/ lbs ) |
                                3.3 kg (7.27lbs) |


                                |   |
                                  |


                                | Accessories (Standard) |
                                  |


                                | Carton |
                                Yes |


                                | Remote Control w/ Battery |
                                Yes (RCV012) |


                                | Power Cord (by region) |
                                Yes |


                                | User Manual CD |
                                Yes |


                                | Quick Start Guide |
                                Yes |


                                | Warranty Card (by region) |
                                Yes |


                                | Lens cover |
                                Yes |


  |


                         |
