BENQ SW921+ DLP HD High Brightness Projector |
|
|

|
  |
For the current BenQ Range Click here |
 |
Quick Facts: |
|
BenQ SW921+ Throw Distance Chart (Examples for common Sizes) T/R: 1.12 - 1.8:1 |
Image Size |
Installation Distance
(Approx. To Lens) |
83" (16:10) 1790x1120mm |
From 2.1m to 3.2m |
98" (16:10) 2110x1320mm |
From 2.4m to 3.7m |
118" (16:10) 2540x1590mm |
From 2.9m to 4.5m |
|
SPECIFICATIONS
Native Resolution: WXGA 1280 x 800 16:10
Brightness: 5200 ANSI Lumens
Maximum Contrast: 3,000:1
Weight: 4.9kg
Fan Noise: 36 / 33db (eco)
Warranty: 2 Years (+1 Year $135)
Lamp Warranty: 6months/750hrs
Lamp Life Up To: 2,500hrs |
FEATURES
- 2x HDMI Connection
- 1.6x Zoom
- MHL Compatible
- Vertical Keystone Correction
- Horizontal Keystone Correction
- 2.5% Vertical Lens Shift
- Powerful 20W Speaker
- 3D Capable(3D glasses required)
- Optional Wireless
|
BenQ SW921+ WXGA 5200lumen projector
The new SW921+ offers a sharp HD resolution and a brilliant 5200 lumen brightness perfect for large venues or installations that have to cope with a lot of light. It comes with both horizontal and vertical keystone correction so can be installed off centre. As well as a fairly short installation distance so can achieve a 2 metre wide picture at a mere 2.3 metre distance. It also is equoted with a 1.6x optical zoom for extra flexibility so for the same example of a 2 metre width can go as far as 3.6 metres distance.
Installation Projector with 5200lm, WUXGA | SW921+
Proficient Corporate Integration and Installation Flexibility
To integrate seamlessly into the IT infrastructure of enterprise-class corporations, BenQ’s SW921+ is purpose-built to deliver crisp, high-brightness projection and maximum system flexibility to minimize renovation costs. Equipped with comprehensive features to assist installation, the SW921+ is designed for efficient projector mounting and optimization with minimal labor time and resources.
Superb Image Quality
Vivid Clarity in Ambient Environments
The SW921+’s 5,200 lm high brightness allows presenters and participants to conduct presentations in comfortably lit medium-sized conference rooms, with uncompromised debate, collaboration, note taking and interaction to achieve the most productive meetings. The high luminance provides professional picture quality for installers to satisfy stringent corporate standards. |
 |
High Contrast for Clear Text
The SW921+ delivers industry-leading levels of contrast and pixel fill factor, producing the truest blacks and exemplary image sharpness for unmatched readability in presentations and documents. High fill factor sharpens images for increased clarity on black and white documents and colorful images alike while reducing eye strain. |
 |
Powerful Flexibility for Efficient Installation

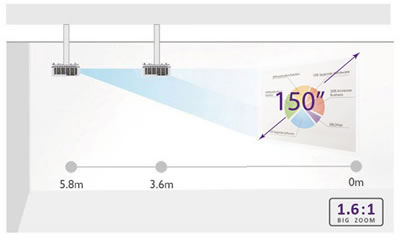

1.6x Optical Zoom for Efficient Upgrades
Big Zoom facilitates corporate adoption of new projection technology by making use of existing ceiling mounts and restricted spaces to deliver large-scale projected images. The 1.6x optical zoom feature allows SW921+ to project images between 30” to 300” within an ideal range of distance from the screen, avoiding costly renovation or lengthy installation downtime. |
 |
Digital Image Shrink
Digital image shrink allows installers to shrink the image to 75% of the original size in 0.5% increments via OSD menu, offering presenters an effortless way to precisely align projected images of any size fit well within the desired frame.
Vertical Lens Shift for Precise Installations
Lens shift compensates for minor miscalculations and misalignment during projector installation. Conveniently placed adjacent to the lens, this control enables vertical lens movement by 105%-107.5% within the projector chassis for perfectly aligned pictures without distortion. |
 |
Advanced Image Calibration for Ideal Projection Alignment
The SW921+ is equipped with a two-dimensional keystone correction range of ±30o on both horizontal and vertical axes to counteract the trapezoid effect when the projector must be installed off-center. Installers can use Corner Fit control to adjust each corner independently for perfectly aligned image geometry.
Remote Control and Projector ID Designation for Smooth Control
Installers and IT managers can assign a specific remote control ID to each projector, avoiding signal interference and unintentional changes when multiple projectors are installed in a venue. |
 |
Central Lens Design for Precise Installation Alignment
BenQ's symmetrically centered lens design allows easy installation without special calculations or adjustments. |
 |
Upper Lamp Door for Simplified Lamp Maintenance
A quick-release lamp door provides IT managers convenient access for efficient lamp maintenance without removing the projector from ceiling-mounted installations. |
 |
Network Control and Management Protocol Compatibility
Comprehensive LAN Control Compatibility
The SW921+ is widely compatible with leading projector control systems including Crestron, AMX and PJ-Link for network control via LAN, making it simple to integrate into corporate network infrastructures. The SW921+ also supports RS-232 for reliable long-distance Installations, up to 15 meters, for situations without LAN infrastructure. |
 |
Wireless Presentation
MHL Connectivity to Present from Mobile Devices
MHL connectivity allows presenters to instantly share presentations and business documents directly from mobile devices via MHL cable or dongle. Also, the onboard USB port supplies 5V 1.5A power to HDMI dongles while making uninterrupted presentations. |
 |
Enduring Efficiency and Corporate Maintenance
Long-Lasting DLP Prevents Color Decay and Conserves Energy
Equipped with the durability of the digital micro-mirror device combined with a nearly-sealed projection engine design to prevent dust image, the DLP-powered SW921+ resists color decay and image degradation. This preserves picture quality even after thousands of hours of commercial use.
Modern Industrial Design
The sleek and minimalist silver-white industrial design perfectly complements modern office décor.
|
Specifications
Display |
|
Projection System |
DLP Single 0.65” WXGA |
DMD type |
DC3 DMD Chip |
Resolution |
1280 x 800 pixels |
Brightness |
5200 ANSI Lumens |
Contrast Ratio |
3,000:1 |
Display Color |
30 Bits (1.07 billion colors) |
Aspect Ratio |
Native 16:10 (5 aspect ratio selectable) |
Light Source |
Lamp, 370W |
Light Source Life* |
2000/2500 hours (Normal/Eco mode) |
|
|
Optical |
|
Throw Ratio |
1.12~1.8 |
Zoom Ratio |
1.6X |
Lens Control |
Manual Zoom and Focus |
Lens Shift |
Manual lens shfit, V: +2.5% |
Keystone Correction |
2D keystone, V: ±30 degree; H: ±30 degree |
Projection Offset** |
105% |
Projection Size |
30’’~300’’ |
|
|
Audio |
|
Built-in Speaker |
20W (10Wx2) |
|
|
Special Feature |
|
Security(anti-theft) |
Security Bar / Kensington anti-theft lock slot |
Feature |
Digital Shrink, Projector/ Remote Control ID Setting, LAN Control |
|
|
Connectivity |
|
I/O Port |
Computer In x1
Monitor out (D-sub 15pin,Female) x1
Composite Video(RCA) x1
S-Video in x1
HDMI In (one with MHL) x2
Audio in(mini jack) x1
Audio out (mini jack) x1
LAN Port(RJ45 for Network control) x1
USB TypeA(5V/1.5A power) x1
USB Type Mini B x1
RCA Audio in- L/R x1
12V Trigger x1
RS232 x1
IR Receiver(Front) x1
IR Receiver(Top) x1
Microphone jack x1 |
|
|
Compatibility |
|
Resolution Support |
VGA(640 x 480) to UXGA(1600 x 1200) |
Horizontal Frequency |
15~102KHz |
Vertical Scan Rate |
23 - 120Hz |
HDTV Compatibility |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
Video Compatibility |
NTSC, PAL, SECAM |
|
|
Power |
|
Power Consumption (Max/Normal/Eco) |
Max 594W. Normal 500W. Eco 400W |
Standby Power Consumption |
Normal < 0.5W. Network < 3W. |
Power Supply |
100 ~ 240V AC |
|
|
Dimension and Weight |
|
Product Dimensions (WxHxD) |
411.4 x 118.4 x 267.5mm |
Product Weight |
4.9kg |
|
|
Operation Condition |
|
Noise Level (Normal/Eco) |
36/33 dBA |
Operating Temperature |
0o ~ 40o C |
|
|
Accessories |
|
Accessories (Standard) |
Power Cord
Remote control (RCA011)
Lens cover
AAA Batteryx2
User Manual CD
Quick Start Guide
Warranty card(by sku)
VGA (D-sub 15pin) Cable |
Accessories (Optional) |
Spare Lamp Kit P/N: 5J.JDP05.001
3D Glasses P/N: 5J.J9H25.001
Ceiling mount |
OSD |
|
On Screen Display Language |
Arabic/ Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/ Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages) |
|
Supplied Accessories
|
Remote |
|
|
|
|
Optional Accessories |
|
|
Extended Warranty For Projectors
|
All Programs come with:
- GM Multimedia Extended Warranty ID Number (must be retained)
- GM Multimedia claim instructions and terms & conditions
- Does not cover consumable items or accessories such as projector globes or remotes |
[More Information] |
|
|
|
|
|
|
Universal Flush Projector Ceiling Mount FB-1 *Recommended* |
White - $149 |
|
Black - $149 |
|
|
|
SPECIFICATIONS
Available in BLACK (FB-1B) and WHITE (FB-1W)
• Swivel: 360°, Adjustable roll, pitch and yaw.
• Rigid Steel construction.
• Durable powder-coated finish (Black or White).
• Supports up to 10kgs.
• Mounting hardware included.
• User manual included.
• All bracket models come standard with 4 x mounting arms.
|
FEATURES
- Direct to ceiling mount (150mm)
-
Suits most projectors with 3 or 4 holes
|
|
 |
