BENQ MW705 DLP HD Widescreen Projector

Presentations Made Easy

Brilliantly powerful yet simple to use, the BenQ MW705 business projector turns your bright ideas into effective presentations. Its sleekly modern design quietly delivers 4000 lumens bright image and with the ease of one-touch controls, even for wireless streaming makes presenting a breeze. Look no further, the MW705 is smartest professional projection solution.

key features

• WXGA (1280x800) resolution

• 4,000 ANSI lumens

• Dual HDMI, MHL x 1

• H + V keystone image adjustment

• Optional wireless presentation on the go

Powerfully Bright and Whisper Quiet

Easy QCast Wireless Streaming

The MW705 features a convenient integrated docking port to house the optional BenQ QCast wireless streaming dongle, providing seamless wireless integration for easy, effective, cable-free presentations. All-new one-touch controls for EcoBlank and QCast wireless streaming on both, the remote and projector keypad make it easy to pause presentations by blanking the screen or to quickly launch QCast wireless Full HD 1080p streaming.

High Contrast

A high contrast ratio ensures that text, images, graphs, charts and videos are projected with optimal clarity and enhanced sharpness, especially for numerical data. The MW705 is intended for demanding presenters who want their content to be clearly seen by every person in the audience.

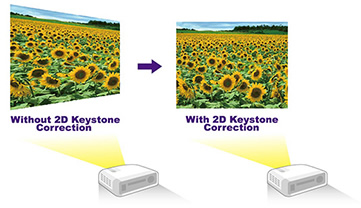

2D Keystone Geometric Correction 2D keystone correction provides installation flexibility by correcting the trapezoid effect via horizontal and vertical adjustments up to ±30 degrees. With it, the projector can be placed off center, allowing the presenter to stand in front of the screen without blocking the image. The projector can also be placed anywhere on a u-shaped tabletop without moving the table or putting a stand in the center.

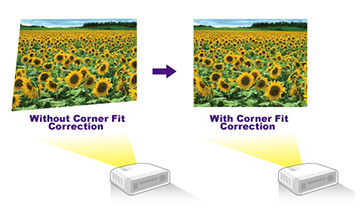

Corner Fit Geometric Correction Corner fit Geometric Correction is a flexible and convenient way to align the picture perfectly on the screen by independently adjusting each corner of an image.

MHL Connectivity

With MHL, you can use an Android smartphone or tablet to deliver presentations, business proposals and other content to instantly share your ideas. Turn small screen into big screen by mirroring documents, photos, videos and any other content in your smart device on the projection screen. Once connected, the smart device will be charged by the projector so it will never run out of battery power while presenting.

Various 3D Format Supported

MW705 is standard-equipped with DLP Link™-supported 3D projection to offer you the same amazing 3D effects seen in 3D movies. The 3D formats supported by the MW705 are 3D field-sequential, 3D frame packing, 3D top-and-bottom and 3D side-by-side. Furthermore, this incredible projector can be connected to a Blu-ray DVD player for even more stunning visual quality.

SmartEco Mode

The SmartEco Mode, which cleverly adjusts the lamp power to maximize power saving by delivering the best contrast and brightness performance using only as much light as needed.

No Source Detected Mode

The automatic switch to Eco Blank Mode after the projector is turned on for over three minutes without a display source, eliminating unnecessary energy waste and prolonging the life of the projector lamp.

Multi-Function Connectivity

Specifications

Projection System DLP Native Resolution WXGA (1280x800) Brightness* (ANSI Lumens) 4000 ANSI Lumen Contrast Ratio 13000:1 Display Color 1.07 Billion Colors Lens F=2.56~2.68, f=22.04~24.14mm Aspect Ratio Native 16:10 (5 aspect ratio selectable) Throw Ratio 1.55~1.7 (Wide 87"±3% @ 2.9m) Image Size (Diagonal) 60" ~ 180" Zoom Ratio 1.1x Lamp Type 240W Lamp Mode (Normal/Economic/SmartEco/LampSave/LumenCare)* 2500/4000/6000/7500(80%~30%) hours Keystone Adjustment 2D, Vertical & Horizontal ± 30 degrees; Auto vertical keystone ± 30 degrees Projection Offset Vertical: 100% ±5% Resolution Support VGA(640 x 480) to UXGA(1600 x 1200) Horizontal Frequency 15K-102KHz Vertical Scan Rate 23-120Hz Interface Computer in (D-sub 15pin) x1( integrate with component) HDMI x2 (HDMI with MHL2.0 x1 internal for Qcast, HDMI x 1) Monitor out x 1 Composite Video in (RCA) x 1 S-Video in x 1 Audio in (Mini Jack) x 1 Audio in (L/R) x1 Audio out (Mini Jack) x 1 Speaker 2W x 1 USB (Type A) x 1 (1.5A power supply) RS232 (DB-9pin) x 1 IR Receiver x2 (Front+Top) Dimensions (W x H x D mm) 13.03 x 4.5 x 9.69 inches (331.0 x 114.4 x 246.2mm) - without foot 13.03 x 5.09 x 9.69 inches (331.0 x 129.4 x 246.2 mm) - with foot HDTV Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p Video Compatibility NTSC, PAL, SECAM 3D Support and Compatibility Frame Sequential: Up to 60Hz 720p Frame Packing: Up to 24 Hz 1080p Side by Side: Up to 24Hz 1080p Top Bottom: Up to 60Hz 1080p Audible Noise (Normal/Economic Mode) 31/28 dBA (Normal/Economic mode) On-Screen Display Languages Arabic/ Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/ Spanish/ Swedish/ Turkish/ Thai/ TraditionalChinese (28 Languages) Picture Modes **Dynamic / Presentation / sRGB / Cinema / (3D) / User 1 / User 2 Accessories (Standard) Power Cord (by region) Remote Control w Battery VGA cable User Manual CD QSG Lens Cover Warranty Card (by region) Accessories (Optional) Spare Lamp Kit P/N: 5J.JEC05.001 Video Streaming Dongle - QCast P/N: 5J.JCK28.A01 Ceiling mount kit P/N: 5J.JAM10.001 3D Glasses P/N: 5J.J9H25.001 Power Supply AC100 to 240V, TBD A, 50 to 60 Hz Power Consumption 350W(Normal), 261W(Eco), Standby <0.5W Weight 6.61 lbs (3Kg)

Supplied Accessories

Remote

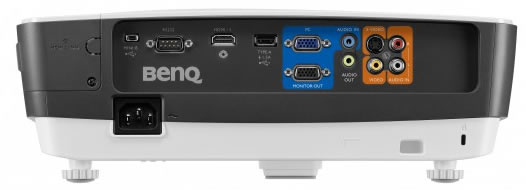

Rear Panel
