BenQ MW612 DLP Multipurpose Projector

BenQ MW612 Projector for Daily Presentations

The BenQ MW612 combines a detailed HD resolution and a vibrant 4000 lumen brightness making it perfect for high detail presentations in a lit room. With easy connectivity using the two HDMI ports or the VGA port the MW612 can plug into any modern tablet or laptop. Or you can add on a QP20 wireless dongle for easy screen mirroring. The MW612 also features a high contrast level of 20,000:1 producing deep black levels and shading.

BenQ MW612 Wireless Meeting Room WXGA Business Projector

• Optional Accessories: QCast/QCast Mirror
• High Brightness of WXGA 4000 ANSI Lumens
• Wireless Presentation via Simple Screen Mirroring Optional


Brightness & High Contrast

Vivid Clarity in Bright Medium-Sized Conference Rooms

4,000 lumens of high brightness enable comfortable lights-on presentations to promote discussion, collaboration, and note-taking in larger meeting rooms with bright lights accommodating up to 20 participants. The high luminance lets even participants seated furthermost clearly see the slides and boosts picture quality with vibrant color for pictures and videos as well as crisp text and fine details.

High Contrast for Clear Text

With industry-leading contrast and pixel fill factor, BenQ projectors produce the truest blacks and unmatched readability with every character, graph, and chart crisply defined. High fill factor increases clarity for black and white or color images and reduces eye strain for presenters and audiences to stay focused on the content.

Full HD Wireless Presentation Capability

BenQ projectors integrate with wireless solutions to eliminate cables for maximum mobility and presentation flexibility, enabling easy content sharing from any mobile or laptop device in BYOD work settings for enhanced teamwork in truly interactive and collaborative meetings.

* Optional QCast and QCast Mirror dongles enable wireless presentation.

Integrated 1.5A USB Type-A Power Output In addition to conveniently charging any mobile device, built-in 1.5A USB Type A power output empowers accessories such as wireless HDMI dongles without need for separate power adapters. Universal Multi HDMI & VGA Connectivity Dual HDMI inputs in addition to dual VGA inputs are purpose-engineered to host multiple presenters and their laptop or mobile devices without taking time to take turns. Multiple inputs enable meeting participants to collaborate instantly without complicated adapters or time-consuming IT support.

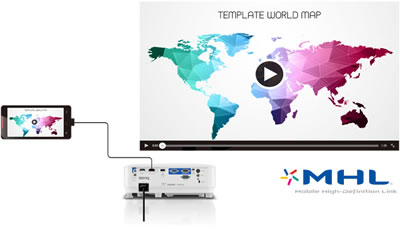

MHL Connectivity MHL connectivity lets Android smart devices mirror documents, photos, videos, or any other content via MHL cable to share ideas and presentations, while charging the mobile device at the same time. In addition, MHL powers compatible wireless dongles such as QCast for wireless presentations without additional USB power cables.

Power Saving, Eco Friendly Optimization

The BenQ Eco Cycle System eliminates electricity waste, reduces power-up wait time before and after meetings and minimizes maintenance for lower total cost of ownership.

Eco Cycle System

A. SmartEco™ Mode: SmartEco™ Mode analyzes input content to determine the brightness required for optimal color and contrast performance, conserving up to 70% lamp power while delivering the finest image quality without compromise.

B. Eco Blank Mode: When the projector detects no source content, Eco Blank Mode automatically actives after 3 minutes of inactivity to eliminate distractions and save energy.

C. Auto Power Off: BenQ business projectors power down after 20 minutes of inactivity to eliminate energy waste and concerns for teachers of leaving the equipment on.

Quick Tips: Eco Blank Mode and SmartEco Mode can be activated directly using the remote control.

0.5W in Standby Mode

When inactive, BenQ business projectors keep power consumption to a minimum with 0.5W standby power, maximizing energy savings when the projector is connected but not in use.

LampSave Mode

Fewer lamp replacements and maintenance translates into an overall lower cost of ownership. LampSave Mode adjusts lamp power dynamically according to content to extend projector lamp life up to 50% compared to normal mode.

Specifications

Display   Projection System DLP Resolution WXGA(1280x800) Resolution Support VGA(640 x 480) to WUXGA_RB(1920 x 1200) Brightness (ANSI lumens) 4,000 Lumens Contrast Ratio (FOFO) 20,000:1 Display Color 30 Bits (1,07 billion colors) Native Aspect Ratio Native 4:3(5 aspect ratio selectable) ‎ Light Source Lamp Light Source Wattage 240W Light Source life* Normal 4000 hours Eco 10000 hours SmartEco 8000 hours‎ Lampsave 15000 hours     Optical   Throw Ratio 1.55-1.7 Zoom Ratio 1.1:1 Lens F = 2.56 ~ 2.68 f = 22 ~ 24.1 mm Keystone Adjustment 1D, Vertical +/- 30 degrees Projection Offset** 100%±2.5% Clear Image Size (Diagonal) 60"~180" Image Size 30"~300" Horizontal Frequency 15K~102KHz Vertical Scan Rate 23~120KHz     Audio   Speaker 2W x 1     Interface   PC (D-sub) 1 Monitor out (D-sub 15pin) 1 S-Video in (Mini DIN 4pin) 1 Composite Video in (RCA) 1 HDMI 2 (1.4a one share with MHL) USB Type A 1 (power supply, 5V, 1.5A) USB Type Mini B 1 (Download & Page up/down ) Audio in (3.5mm Mini Jack) 1 Audio out (3.5mm Mini Jack) 1 RS232 (DB-9pin) 1 IR Receiver 2(Front/Top) Security Bar 1     Compatibility   HDTV Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p Video Compatibility NTSC, PAL, SECAM     Environment   Power Supply AC100 to 240 V, 50 to 60 Hz‎ Typical Power Consumption 320W(Normal ) Standby Power Consumption <0.5W Acoustic Noise (Typ./Eco.) 34/29 dBA (Normal/Eco mode) ‎ Operating Temperature 0~40℃     Dimension and Weight   Dimensions (W x H x D)(mm) 296 x120 x221 Net Weight (Kg/ lbs ) 2.3Kg

Supplied Accessories Remote Rear Panel
