Projection Perfect for Every Occasion

The BenQ MH684 is just what you need to perfect your presentation in all settings. Boasting 3500 ANSI lumens and 13000:1 high contrast ratio, this Full HD 1080P projector also offers vertical and horizontal 2D keystone correction for diverse display options to keep your presentations lookin’ great!

key features

• 3500ANSI Lumen High Brightness

• 13000:1 High Contrast Ratio

• Blu-ray Full HD 3D support

• MHL Mirror the Screen of Smart Device

• Wireless Presentation via Your Smart Device by QCast(optional)


Brilliant Image Performance

Full HD 1080P

Showcase Full-HD content in sharp, 1080P definition and enjoy Blu-ray, video games and HD broadcasting in beautiful, high-contrast quality without downscaling or

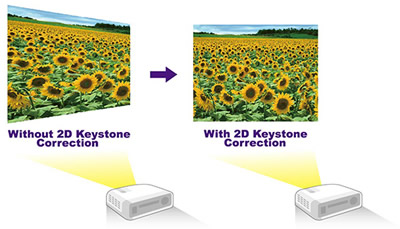

2D Keystone 2D keystone correction enhances installation flexibility by correcting the trapezoid effect via horizontal and vertical adjustments up to ±30 degrees. With it, the projector can be placed off center and the presenter can stand in front of the screen without blocking the image. The projector can also be placed anywhere on a u-shaped tabletop without moving the table or putting a stand in the center.

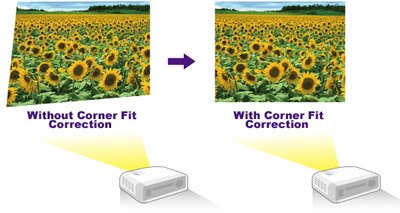

Corner Fit Corner fit is a flexible and convenient way to align the picture perfectly by adjusting each corner of an image independently.

MHL Connectivity

With MHL, you can present your business proposals and share your ideas instantly using your Android smart device. Turn small screen into big screen by mirroring documents, photos, videos and any other content in your smart device onto the projection screen. Once connected to the projector, the smart device will be electrically charged so you don’t run out of battery power while presenting.

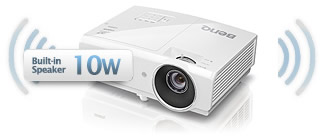

Built-in 10W Speaker Power The MH684 comes with enhanced audio support for your classroom, delivering crisp-clear audio performance with built-in 10W speaker power. Now, teachers can teach with ease and students can learn more effectively.

SmartEco Mode

The SmartEco Mode, which cleverly adjusts the lamp power to maximize power saving by delivering the best contrast and brightness performance using only as much light as needed.

No Source Detected Mode

The automatic switch to Eco Blank Mode after the projector is turned on for over three minutes without a display source, eliminating unnecessary energy waste and prolonging the life of the projector lamp.

Multi-Function Connectivity

Specifications

Projection System‎ DLP ‎ Native Resolution‎ 1080P (1920x1080) ‎ Brightness (ANSI Lumens)‎ 3500 AL ‎ Contrast Ratio‎ 13000:1 ‎ Display Color‎ 1.07 Billion Colors ‎ Lens‎ F=2.59~2.91, f=16.87~21.87mm ‎ Aspect Ratio‎ Native 16:9 (5 aspect ratio selectable) ‎ Throw Ratio‎ 1.15-1.49(Wide 95” ±3% @ 2.42m) ‎ Image Size (Diagonal)‎ 60"~180" ‎ Zoom Ratio‎ 1.3:1 ‎ Lamp Type‎ 240W‎ Lamp Mode (Normal/Economic)*‎ 3000/4500/6500 hours ‎ Keystone Adjustment‎ 2D, Horizontal +/- 30 degrees, Vertical +/- 30 degrees ‎ Projection Offset**‎ 120%±5% ‎ Resolution Support‎ VGA(640 x 480) to WUXGA(1920 x 1200)*RB-Reduced blanking ‎ Horizontal Frequency‎ 15~102KHz ‎ HDTV Compatibility‎ 480i, 480p, 576i, 576p, 720p, 1080i, 1080p ‎ Video Compatibility‎ NTSC, PAL, SECAM ‎ Interface‎ Computer in (D-sub 15pin) x1 Monitor out (D-sub 15pin) x 1 Composite Video in (RCA) x 1 S-Video in (Mini DIN 4pin) x 1 HDMI x2 (HDMI with MHL2.0 x1, HDMI x 1) MHL x 1(HDMI with MHL2.0) Audio in (RCA) x 1 Audio in (Mini Jack) x 1 Audio out (Mini Jack) x 1 Speaker 10W x 1 USB (Type mini B) x1 (Download) USB (Type A) x1 (Charger) RS232 (DB-9pin) x 1 IR Receiver x2 (Front+Rear) ‎ Dimensions (W x H x D mm)‎ 314.2x116x216.3mm (include feet) 314.2x102x216.3mm (exclude)‎ Weight‎ 3.3 kg‎ Audible Noise (Normal/Economic Mode)‎ 34/29 dBA (Normal/Economic mode) ‎ Power Supply‎ AC100 to 240 V, 50 to 60 Hz‎ Power Consumption‎ 310 W(Normal), 250 W(Eco), Standby <0.5W‎ 3D Support and Compatibility‎ Frame Sequential: Up to 60Hz 720p Frame Packing: Up to 24 Hz 1080p Side by Side: Up to 24Hz 1080pTop Bottom: Up to 60Hz 1080p‎ On-Screen Display Languages‎ Arabic/Bulgarian/Croatian/Czech/Danish/Dutch/English/Finnish/ French/ German/Greek/Hindi/Hungarian/Italian/Indonesian/Japanese/ Korean/Norwegian/Polish/Portuguese/Romanian/Russian/SimplifiedChinese/ Spanish/Swedish/Turkish/Thai/Traditional Chinese (28 Languages)‎ Picture Modes‎ **Bright / Presentation / sRGB / Cinema / (3D) / User 1 / User 2 ‎ Accessories (Standard)‎ Lens Cover Remote Control w/ Battery Power Cord (by region) User Manual CD Quick Start Guide Warranty Card (by region) VGA(D-sub 15pin) Cable‎ Power Management Function‎ Automatic power off after 20 minutes without adisplay source.‎
Supplied Accessories
Remote	Carry Bag

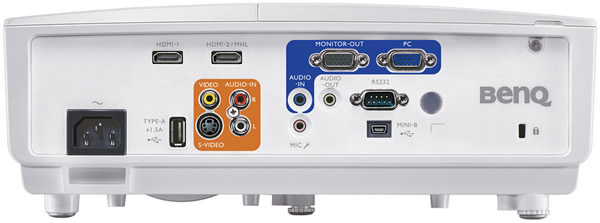

Rear Panel
