Mitsubishi EX200U DLP Multimedia PROJECTOR


Your Price: $850
Insured Delivery: $22
Pick Up Available





2.4kg weight, 2300lm brightness

The EX200U weighs in at a light 2.4kg for excellent portability, and offers an impressive projection brightness of 2300lm. Whether used in a meeting room or classroom, clear images are reproduced even in ambient light.

Wall Screen

Project natural colour images not only onto white or black boards, but light-yellow, blue, light-green or pink walls as well –– turning nearly any wall into a projection surface.

Direct Power Off

The EX200U has a Direct Power Off function, which immediately cuts all power, eliminating the annoying power-down time previously required before unplugging the projector. When the presentation is over, simply turn off the power, disconnect the projector, and you’re ready to go. A must-have feature for people that require mobility and have busy schedules.

Top-loading lamp

The projection lamp is installed in the upper section of the main body. Whether sitting on a shelf or suspended from the ceiling, lamp replacement is simple and easy*1, and there’s never a need to move the whole projector.
*1; A lamp replacement attachment is included to prevent the lamp from being dropped during replacement.

Long 4,000hr*2 Lamp Life

By increasing the estimated lamp life, the EX200U has the added advantages of lower maintenance and reduced operating costs.

*2; When used in low lamp mode. Maximum lamp life in standard mode use is 3,000 hours.
*3; Lamp life refers to the average time required for brightness to be reduced by half, and not the time specified in the warranty. Lamp service life may vary widely depending on the environment and conditions, and whether or not cleaning and other maintenance procedures are followed.

Stand-by Mode under 1W

Stand-by mode power consumption is less than 1W, offering increased energy savings and further contributing to environmental preservation.


Specifications
Model EX200U

Display technology

0.55" 1-Chip DMD, DDP2430/2431

Resolution

1024 x 768 (total 786,432 pixels)

Brightness (Maximum)

2300 ANSI lumens

Contrast Ratio

1250:1

Colour Wheel 6seg. Colour Wheel (R/G/B/W/Y/C)

Picture Size

40" ~ 300"

Zoom/Focus Manual Focus & Zoom Lens(Zoom Ratio 1.1:1) , without Zoom Trigger
Projection Lens  f=21.1~23.0 mm, F=2.6 ~2.8,  (3.8-4.2m@100")
Off set axis 11:-1 , Hd = 0.15m up @100"

Source lamp

185W / 3,000 hours (Normal mode)*
160W / 4,000 hours (Low mode)*

Computer compatibility

Resolution ; 640 x480 (Expand)  - 1024 x 768 (Real) - 1600 x 1200 (Compressed), Sync on green available

Video compatibility

NTSC / NTSC 4.43 / PAL (including PAL-M, N) / SECAM / PAL-60, Component Video: 480i/p (525i/p), 576i/p (625i/p), 720p (750p 50/60Hz), 1080i (1125i 60Hz), 1080i (1125i 50Hz)

PC input terminals

RGB: mini D-sub 15 pin x 2; Audio: Stereo mini jack x 2(3.5mm)

Video input terminals

Composite RCA x 1, S-Video x 1

Output terminals

RGB: mini D-sub 15 x 1; Audio: Stereo mini jack x 1 (3.5mm)

Communication terminals

RS-232C: 9pin x 1;

Scanning Rate [H] 31 - 92 kHz, [V] 48 - 85 Hz; [Dot clock] max.170 MHz
Audio Speaker 2W Mono
Power consumption 315W (less than 1W in Power Standby mode)
Power Supply AC100 ~ 240 V ±10%, 50/60 Hz

Fan noise

29dB(A) (Lamp low mode)

Dimensions (W x H x D)

282 x 110 x 233 mm (excluding all protrusions)

Weight

2.4 kg

Optional lamp

VLT-EX240LP

Included accessories

AC Power Cable, VGA Cable, Card Remote Control (with battery), User Manual, Safety Manual, Quick Startup guide

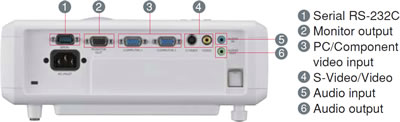

Rear Panel

Remote



Optional Accessories

Extended Warranty
All Programs come with:
- United ID Sticker (must be attached to product)
- United Certificate with Terms & Conditions

Program Coverage:
- LCD & DMD pixels are covered only as per original manufacturer's pixel terms & conditions
- Does not cover Cords, Power Adapter
- Does not cover consumable items such as projector globes
+ 3 Year On-Site Extended Warranty (up to 5 years total) $120
+ 2 Year On-Site Extended Warranty $90
+ 1 Year On-Site Extended Warranty $75

Viewsonic WPG-350 Wireless Presentation Gateway

Your Price:
$329

Pick Up Avail.

[More Info]

- Upgrade any Projector To Wireless
- Fully compatible with both Windows and Mac® OS
- Supports resolutions up to 1024x768 and full-motion video up to 1080p
- Presentation remote for total conference control
- Equipped with VGA pass-through for an extra display


Premium VGA Monitor Cable (15HDM/15HDM)

5 metres
$29.95
10 metres
$59.95
15 metres
$69.95
20 metres
$89.95
30 metres
$110.95


Aus Wide Delivery: $15

Heavily shielded coaxial RGB cable giving you a crisper display at higher resolutions!

. Features UL Approved Cabling
. Filters included on both ends cutting down on noise
. Maintains stronger signals using a shielded cabling run.
. Comes in 15pin D-sub format with Male to Male conectors

Click for more cables
Buy your new EX200U projector now, Contact Us today!
