Mitsubishi XD600U DLP Multipurpose Projector



XD560U








DISCONTINUED

FOR CURRENT MODELS CLICK HERE


XD600U XGA DLP Premium Projector

With its high brightness, superior colour reproduction, advanced connectivity, power saving features and super long lamp life, the XD600U from Mitsubishi Electric is the perfect blend of performance and cost efficiency.

XD600U Top

Exceptionally Quiet, Energy-efficient & Packed with High Quality

The new XD600U DLP® projector has everything you need in a mobile projector. This cost-saving and high performance XGA projector is prepared for both long and short-distance presentations, from boardrooms and classrooms to conference rooms and tradeshows.

  • Superbly user friendly, the XGA projector weighs in at less than 8 lbs. for high portability. Other convenient features include audio mix support with a built-in 10 watt speaker, visual PA support, closed caption capability and support for remote management and control via built-in RJ45 connectivity port
  • The high performance DLP projector is structurally airtight, eliminating the need for an intake filter under normal conditions and lowering costs. An increased estimated lamp life of up to 5,000 hours in low mode
  • Simultaneously send messages and important information in real-time to multiple projectors connected to the LAN using a control room computer equipped with projector-control software
  • A new high performance HD Diamond Lens provides super sharp images
  • Bring the impact of 3-D images to your presentation. The DLP projector is 3-D ready for content using field sequential formatting and special electronic shutter glasses
  • Amplify your voice in real time with the optional wireless microphone. The built-in 10 watt speaker and audio mixer eliminate the need for an external speaker

High Brightness Ideal for Large Meeting Rooms & Halls

Present with confidence at tradeshows, conferences or other larger venues. A high brightness level of 4500 lumens and a 2000:1 contrast level ensure that your presentation shows crisp and clear even in large meeting rooms and conference halls.

Mitsubishi Electric XD600U

For excellent performance in the boardroom or classroom, it's hard to go past the XD600U projector. With excellent brightness and colour quality, the XD600U delivers fantastic XGA images from any video or data source. Features include:

Superb Colour Reproduction - A combination of BrilliantColor™ technology, Color Enhancer™ and a five-segment colour wheel means image colour is reproduced with the utmost accuracy.

Long Lamp Life up to 5,000 hours - The XD600U is capable of running for up to 5,000 hours (in low mode), greatly lowering the cost of ownership.

Quiet 29dB(A)* Operating Volume - For presentations free of distraction from the projector.

High Powered Zoom Lens - With its specially calibrated zoom lens, the XD600U is capable of projecting a 1.5m diagonal image from as little as 1.7 metres away.

Network Connectivity - The built-in RJ-45 Ethernet connection provides users with remote control and management of the projector over a dedicated LAN system. The supplied ProjectorView Global+ software allows for the simultaneous control of multiple Mitsubishi projectors on the same network.

Visual PA system - Using the supplied projector control software, network administrators can send messages in real-time to multiple Mitsubishi projectors connected to the LAN. Ideal for broadcasting important information in schools or businesses.

Low Standby Power use - In keeping with Mitsubishi Electric's global green policies the XD600U uses less than 1W in standby mode (3W when connected to a network), for better energy efficiency that saves you money while making the projector more environmentally friendly.

Wide range of video and data inputs, including HDMI - Connect multiple devices to the projector at the same time - perfect for fixed installation units.

Filter free design - No filter to clean means less projector downtime for maintenance.

Top Loading Lamp - For easy lamp replacement when the projector is suspended from the ceiling, as the projector does not need to be removed from its mount.

Instant Shutdown - For quick pack up time when moving the projector between location.

Projector Screen Bundle




Specifications
Model XD600U
Display technology 0.7" 1-chip DMD, 12 deg. LVDS, DDP2230
Resolution 1024 x 768 (total 786,432 pixels)
Colour Wheel 5seg. Color Wheel (R/G/B/W/Y)
Brightness (Maximum) 4500 ANSI lumens
Contrast 2000:1
Zoom/Focus Manual Focus & Zoom Lens(Zoom Ratio 1.5:1) ,with Zoom Triger
Projection Lens f=20.6 ~30.1 mm, F=2.4-2.8,  (2.9-4.3m@100")
Off set axis 7.9:-1 , Hd=0.23m up @100"
Picture Size 40" ~ 300" (100"=3.3m)
Source lamp* 280W / 3,000 hours (Normal mode)
230W / 5,000 hours (Low mode)
Computer compatibility 640 x 480(Expand)  - 1024 x 768(Real) - 1280 x 1024 (Compressed), Sync on green available
Video compatibility NTSC/ NTSC 4.43/ PAL (including PAL-M, N) / SECAM/ PAL-60, Component Video: 480i/p (525i/p), 576i/p (625i/p), 720p (750p), 1080i (1125i 60Hz), 1080i(1125i 50Hz), (1080i(1250, 50Hz) is not available)
PC input terminals RGB:mini D-sub 15 pin x 2, HDMI x 1; Audio: Stereo mini jack x 2 (3.5mm)
Video input terminals Composite RCA x 1, S-Video x 1; Audio: Stereo RCA x 1
Output terminals RGB: mini D-sub 15 x 1; Audio: Stereo mini jack x 1 (3.5mm)
Communication terminals RS-232C: 8pin x 1, LAN (RJ-45) x 1
Audio Speaker 10W Mono
Power consumption 390W, less than 1W in Power Standby mode (3W with network connection)
Power Supply AC100 ~ 240 V ±10%, 50/60 Hz
Fan noise 29 dB(A) (Lamp low mode)
Dimensions (W x H x D) 345 x 129 x 270mm (excluding all protrusions)
Weight 3.6 kg
Optional lamp VLT-XD600LP
Included accessories AC Power Cable, VGA (D-sub) Cable, Remote Control (with battery), Quick Start Card, User Manual, Safety Manual, Lens Cap, Lamp Replacement Tool, Soft Carry Case
Supplied Accessories
Remote

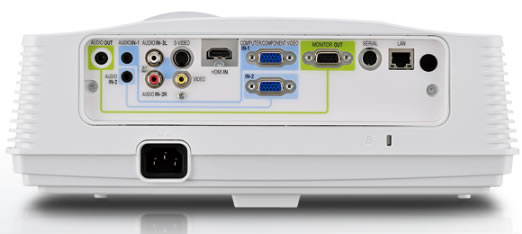

Rear Panel
XD550U Input



Optional Accessories

Universal Flush Projector Ceiling Mount FB-1 *Recommended*
White - $149
Black - $149

Projector Mount

SPECIFICATIONS
Available in BLACK (FB-1B) and WHITE (FB-1W)
• Swivel: 360°, Adjustable roll, pitch and yaw.
• Rigid Steel construction.
• Durable powder-coated finish (Black or White).
• Supports up to 10kgs.
• Mounting hardware included.
• User manual included.
• All bracket models come standard with 4 x mounting arms.

FEATURES
- Direct to ceiling mount (150mm)
- Suits most projectors with 3 or 4 holes
