Mitsubishi XD560U DLP Multipurpose Projector
|
|
|
 |
|
|
FOR CURRENT MODELS CLICK HERE
|
USB or PC-less Display
Connect to PC via USB cable or simply use a USB storage device for jpg or PTG files
|
Wireless Compatibility
Wireless presentations are possible when used with optional wireless dongle (not included)
|
LAN Display
Connect up to 4 computers and show all 4 sources simultaneously |
3D-Ready
Can render images in 3D (requires field sequential format, graphic card, shutter glasses) |
|
Feature Packed & A Great Value
For classroom or meeting room presentations, the portable XD560U DLP projector offers an excellent option. Crisp, clear image projection and convenient features make this ultra portable projector a great value.
- High 3500lm brightness
- 3000:1 contrast ratio with DarkChip3
- Crestron RoomView® compatible
- HDMI compatible
- PC-Less presentation support
- Amazing estimated lamp life up to 6000hrs (low mode)
 |
Delivers Rich, Vibrant Images
With 3500lm luminance, images are bright and can be seen clearly without lowering the light in the room. The newly introduced DarkChip3 ensures rich contrast with deep blacks with bright and vibrant colors.
Remote Management
Connect with up to 250 projectors. Crestron® RoomView compatibility gives you network control of power/on/off and message display and allows you to monitor lamp life. When using a control room projector with projector control software Visual PA lets you display messages on the network in real-time. The DLP projector supports closed caption functionality and AMX Device Discovery lets you manage devices easily. |
Projects with or without a PC
The versatile XD560U projector reproduces images from a computer, VGA, USB, LAN or wirelessly using a commercially available wireless dongle. Present slideshows or animation effects on the DLP projector by saving PowerPoint files converted to a special format onto a USB drive. Simply connect the device to the USB port and your slides are ready to view. |
 |
User-friendly Operation
Highly portable at just 7.7 lbs, the XD560U data projector makes presentations easy and worry-free. Power turns off automatically when no image signal is out for a predetermined period of time set by you. The DLP projector features a lamp life estimated to last up to 6000-hours (low mode) , making lamp changes few and far between. When it’s time to change the lamp out, the top-loading design makes the process fast and easy. No need for external speakers with the high volume10W built-in speaker, although an external speaker can be connected via the Audio Out terminal. |
|
|
Specifications
| Model |
XD560U |
Display technology |
0.55" 1-Chip DMD, 12deg.LVDS, DDP2431 |
Resolution |
1024 x 768 (Total 786,432 pixels) |
Brightness (Maximum) |
3500 ANSI lumens |
Contrast |
3000:1 |
| Colour Wheel |
5 segment colour wheel (R/G/B/W/Y)
|
Picture Size |
40" ~ 300" |
| Zoom/Focus |
Manual Focus & Zoom Lens (Zoom Ratio 1.6:1) |
| Projection Lens |
f= 16.0~25.6 mm, F=2.6 ~3.2, (2.9-4.7m@100") |
| Off set axis |
7.9:-1 , Hd=0.23m up @100" |
Source lamp |
230W / 3,000 hours (Normal mode)*
190W / 6,000 hours (Low mode)* |
Computer compatibility |
Resolution ; 640 x480(Expand) - 1024 x 768(Real) - 1600 x 1200 (Compressed); Sync on green available |
Video compatibility |
NTSC / NTSC 4.43 / PAL (including PAL-M, N) / SECAM / PAL-60, Component Video: 480i/p (525i/p), 576i/p (625i/p), 720p (750p), 1080i/p (1125i/p 60Hz), 1080i/p(1125i/p 50Hz), |

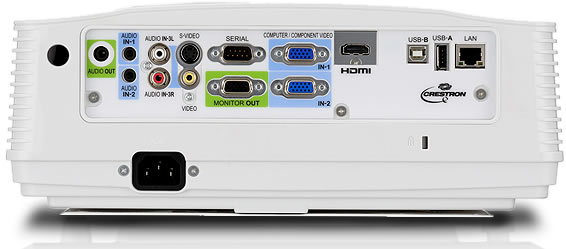

PC input terminals |
RGB:mini D-sub 15 pin x 2; Digital: HDMI x 1; Audio: Stereo mini jack x 2 (3.5mm) |
Video input terminals |
Composite RCA x 1, S-Video x 1 |
| Output terminals |
RGB: mini D-sub 15 x 1; Audio: Stereo mini jack x 1 (3.5mm) |
Communication terminals |
RS-232C; D-sub 9pin x 1, LAN RJ-45 x 1 (Projector Control); USB type-A ; Wireless Display, PC Less Presentation; USB type-B ; USB Display |
| Scanning Rate |
[H] 15 - 105 kHz, [V] 50 - 120Hz; [Dot clock] max.165 MHz |
| Audio Speaker |
10W Mono x 1 |
| Power consumption |
340W (maximum) / less than 0.5W in power saving mode (if LAN not connected) |
| Power Supply |
AC100 ~ 240 V ±10%, 50/60 Hz |
Fan noise |
28 dB(A) (Lamp low mode) |
Dimensions (W x H x D) |
325 x 113 x 258 mm (excluding all protrusions) |
Weight |
3.5 kg |
|
Optional lamp |
VLT-XD560LP |
Included accessories |
AC Power Cable, VGA Cable, Card Remote Control (with battery), User Manual CD, Quick Startup Guide & Safety Manual, Soft Carry Bag, Lens Cap |
Supplied Accessories
|
Remote |
|
|
|
|
| Optional Accessories |
|
Universal Flush Projector Ceiling Mount FB-1 *Recommended* |
| White - $149 |
|
| Black - $149 |
|
|
|
SPECIFICATIONS
Available in BLACK (FB-1B) and WHITE (FB-1W)
• Swivel: 360°, Adjustable roll, pitch and yaw.
• Rigid Steel construction.
• Durable powder-coated finish (Black or White).
• Supports up to 10kgs.
• Mounting hardware included.
• User manual included.
• All bracket models come standard with 4 x mounting arms.
|
FEATURES
- Direct to ceiling mount (150mm)
-
Suits most projectors with 3 or 4 holes
|
|
 |
