Mitsubishi XD490U DLP Large Venue PROJECTOR



DISCONTINUED

FOR CURRENT MODELS CLICK HERE


For a stunning visual experience in a compact projector, the XD490U XGA DLP® ultraportable projector features an amazing 2500:1 contrast ratio and an impressively bright 3000 ANSI lumens. That extra picture sharpness expands the range of applications for the XD490U. For eye catching displays, use it in your trade show booth or showroom. Or use it as a conference room projector for large multipurpose rooms or small meeting rooms. Conference room projectors require portability and flexibility it multiple spaces with ambient light. Its compact size means you can easily move it from room to room, or use it as a shared conference room projector among many locations. Digital keystone correction (horizontal and vertical) allows you to set up even in the most challenging presentation environments.

Video Projector or Data Projector, You'll See Our Color Technology at Work
The XD490U includes Texas Instruments' DDP3020 TrueVisionT Image Processing with BrilliantColorT, as well Mitsubishi's Color EnhancerT. BrilliantColorT for DLP technology uses a new color-processing algorithm to move beyond standard 3-color processing to a 6-color process that more accurately captures the true color common in video and natural scenes. The technology enables a greater than 50% brightness increase in mid tone images for video projectors. Color EnhancerT technology intelligently produces truer colors and smoother images for specific scene settings. From a fingertip control you can choose from a range of distinctive visual modes and customize your settings, whether you're using the XD490U as a data projector or video projector.

Engineered for Flexibility and Long-Term Value
Flexible video and data projector connection options give you operation flexibility. When you use a blackboard, Smartboard or wall as your screen, you can use the vertical lens shift and wall screen features to resize and reposition your images, and compensate for any color on the wall. Our filter-free design resists dust and dirt with no clogged filters to clean or change, reducing maintenance costs. Mitsubishi's Express Replacement Assistance (ERA) and 2-year warranty programs, up to 5,000 hours (low mode) of lamp life.

Features Benefits
Digital Keystone Correction (Horizontal and Vertical) Allows user to set up even in the most challenging presentation environments.
Virtual Lens Shift - PC Use Ability to shrink and adjust image up/down; ideal for blackboard or Smartboard applications.
Virtual Lens Shift - Video Use Allows user to adjust image up/down to avoid blackboards from wide screen formats.
Brilliant ColorT Allows for more vivid, rich colors while increasing mid-tones and superior black levels.
Color EnhancerT Allows the user to control the Brilliant ColorT technology to meet the most demanding color preferences. Mitsubishi Exclusive.
Wall Screen Support Ability to project images on color backgrounds such as beige, light blue, light green, pink and blackboard. Projector automatically adjusts for color tone.
Low Lamp Mode Extended lamp life and quieter noise operation.
Filter-Free No filter required, resistant to dust and dirt, no clogged filters. Reduced maintenance fees.
DVI Connector Allows true digital signal for both PC and video data sources


Specifications
Display
Imaging Technology 0.7", 1-Chip DMD, 12 deg. LVDS, Dark Chip 3T with DDP3020
Brightness/Lumens 3000 ANSI Lumens
Native Resolution 1024 x 768
Maximum Resolution 1280 x 1024
Viewable Size 40-300 inches diagonal
Contrast Ratio 2500 : 1 (on/off)
Color Wheel 5-segment (RGBWY)

Lens
Lens Throw Ratio 1.63 - 1.97
Zoom & Focus Adjustment Manual Focus & Zoom Lens

Compatibility
PC, MAC Compatibility Yes

Operation
Scanning Frequency [H] 15 - 100 kHz, [V] 50 - 95 Hz, [Dot Clock] max 140 MHz

Interface
NTSC, PAL, SECAM NTSC/NTSC 4.43/PAL (including PAL-M, N) / SECAM/PAL-60, Component Video; 480i/p (525i/p), 576i/p (625i/p), 720p (750p 50/60Hz), 1080i (1125i 60Hz), 1080i (1125i 50Hz), 1080i (1250i 50Hz)
Computer/Video Input Support RCA x 1 + S-VIDEO x 1
Computer Monitor Loop-Out Yes
RS-232 Communication Support RS-232C (8pin) x 1 (Direct command is available)
Audio Speaker/Audio Out 2 W Mono
USB Mouse Support USB (for mouse) x 1

Lamp
Lamp Life/Backlight 5000 hours (low mode)
Usage Replacement Lamp Replacement Lamp Bulb (VLT-XD400LP)

Physical
Weight 6.5 lbs. 2.9kg
Dimensions (W x H x D) 12.2" x 3.9" x 9.6"
Power Consumption 340W/3.5A
Power Requirements AC 100-240V, 50/60 Hz

Supplied Accessories:
AC Power Cable, AV Cable, RGB Cable, USB Cable, RS-232c Cable, Remote Control (with battery),
Quick Start Card, User Manual, Safety Manual

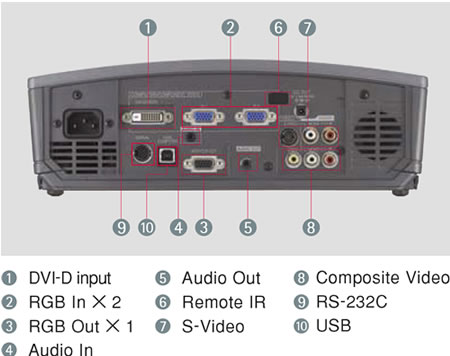

Rear Panel

Remote



Optional Accessories

Extended Warranty
All Programs come with:
- United ID Sticker (must be attached to product)
- United Certificate with Terms & Conditions

Program Coverage:
- LCD & DMD pixels are covered only as per original manufacturer's pixel terms & conditions
- Does not cover Cords, Power Adapter
- Does not cover consumable items such as projector globes
+ 3 Year On-Site Extended Warranty (up to 5 years total) $249
+ 2 Year On-Site Extended Warranty $179
+ 1 Year On-Site Extended Warranty $140

Viewsonic WPG-350 Wireless Presentation Gateway

Your Price:
$329

Pick Up Avail.

[More Info]

- Upgrade any Projector To Wireless
- Fully compatible with both Windows and Mac® OS
- Supports resolutions up to 1024x768 and full-motion video up to 1080p
- Presentation remote for total conference control
- Equipped with VGA pass-through for an extra display


Premium VGA Monitor Cable (15HDM/15HDM)

5 metres
$29.95
10 metres
$59.95
15 metres
$69.95
20 metres
$89.95
30 metres
$110.95


Aus Wide Delivery: $15

Heavily shielded coaxial RGB cable giving you a crisper display at higher resolutions!

. Features UL Approved Cabling
. Filters included on both ends cutting down on noise
. Maintains stronger signals using a shielded cabling run.
. Comes in 15pin D-sub format with Male to Male conectors

Click for more cables
Buy your new XD490U projector now, call 1300 739 131 or click to fill out our online form.
