| Mitsubishi XD280U DLP Multimedia PROJECTOR |
|
 |
|
 |
FOR CURRENT MODELS CLICK HERE |
 |
The XD280U XGA projector is a mobile projector that easily integrates into your educational network to become a true communications aide. Through central control software you can monitor projectors, switch inputs, and broadcast messages to the classroom. Simplified menu options put all the innovative features at your fingertips.
Easily Connect and Manage Your Data Projector Network
For the first time, this XGA projector combines these features that simplify and expand projector management:

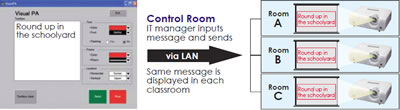

- Visual PA broadcasts news and important messages to all classrooms at once through a simple interface that accommodates messages up to 350 characters
- A simplified operating menu system gives you seven convenient menus, and one you can customize with your own choices for all the utility of your mobile projector right at your fingertips
- Connect two computers at the same time through the dual PC input or use the all digital HDMI port
- Works with ProjectorView Global+ software so you can connect multiple projectors to your LAN and monitor, power on/off, and switch image inputs
Enhance Your Presentations With XGA Projector Options
These features ensure that you deliver your message with flexible XGA projector resolution (1024 x 768) and more.
- Built-in 10 watt speaker and audio mixer projects multiple audio sources throughout the classroom
- Automatic subtitles appear on screen using the closed-captioned mode for language classes or to reinforce your audio message
- BrilliantColorTM six-color processing enables this data projector to produce a wider color spectrum
- 3000 ANSI lumens brightness, and 2000:1 contrast
Choose Permanent Install or Mobile Projector Setup
At about 7 lbs, the XD280U can be a portable projector, part of an A/V cart, or installed permanently. Easy top loading lamp is convenient in any setup and lasts a long 5,000 hours (low mode).
| Digital Input |
|
HDMI input for true digital connections from both PC or video sources. |
| Superior Color Reproduction |
|
Offers BrilliantColor® Technology that comes with 6 segment color wheels (R,G,B,Y,W,C) and newly designed dynamic lamp power control system to produce superior and more natural color reproduction. |
| Instant Shutdown |
|
Quick power down, no waiting period, easy to move form location to location. |
| 10W Speaker |
|
Includes a built-in powerful 10W speaker |
| RJ45 |
|
Supports remote management and connectivity |
| Wall Screen Support |
|
Ability to project images on color backgrounds such as beige, light blue, light green, pink, blackboard and whiteboard. Projector automatically adjusts for color tone. |
| Anti-theft Security Hook |
|
Built into the projector to prevent theft and any unauthorized removal of the projector. |
| Closed Caption |
|
Provides on-screen visual representation of text. |
| Audio Mixer |
|
Supports audio mixing of multiple inputs |
|
Specifications
| Display |
| Imaging Technology |
0.55" 1-Chip DMD, 12 deg. LVDS, DDP2230 |
| Brightness/Lumens |
3000 ANSI Lumens |
| Native Resolution |
1024 x 768 |
| Maximum Resolution |
1280 x 1024 |
| Viewable Size |
40"-300" wide |
| Contrast Ratio |
2000 : 1 (on/off) |
| Color Wheel |
6-segment (RGBWYC) |
| Lens |
| Lens Throw Ratio |
1.6 - 2.0 |
| Zoom & Focus Adjustment |
Manual Focus & Zoom Lens (Zoom Ratio 1.2:1) |
| Compatibility |
| PC, MAC Compatibility |
Yes |
| Operation |
| Scanning Frequency |
[H] 15 - 80 kHz, [V] 50 - 85 Hz
[Dot clock] max 110 MHz |
| Interface |
| NTSC, PAL, SECAM |
NTSC/NTSC 4.43/PAL (including PAL-M, N) / SECAM/PAL-60, Component Video; 480i/p (525i/p), 576i/p (625i/p), 720p (750p), 1080i (1125i 60Hz), 1080i (1125i 50Hz) |
| Computer/Video Input Support |
RGB: Mini D-sub 15pin x2
Video: RCA x1, S-VIDEO x1
Digital: HDMI x 1
Audio: Stereo mini jack (ø3.5mm) x1, RCA jack (L/R) x 1 |
| 12V Trigger |
N/A |
| Computer Monitor Loop-Out |
Yes |
| RS-232 Communication Support |
Mini DIN 8pin x 1 |
| Audio Speaker |
10W Mono |
| Audio Out |
Variable |
| USB Mouse Support |
N/A |
| Lamp |
| Estimated Lamp Life Rating |
6000 hours (low mode) |
| Usage Replacement Lamp |
Replacement Lamp (VLT-XD280LP) |
| Noise Level |
| Decibels |
33dBA (standard mode)
28dBA (low mode) |
| Physical |
| Weight |
7.3 lbs. |
| Dimensions (W x H x D) |
12.6" x 4.1" x 9.3" |
| Power Consumption |
330W |
| Power Requirements |
AC 100-240V, 50/60 Hz |
|
|
| Optional Accessories |
|
|
|
|
Viewsonic WPG-350 Wireless Presentation Gateway |
Pick Up Avail.
|
- Upgrade any Projector To Wireless
- Fully compatible with both Windows and Mac® OS
- Supports resolutions up to 1024x768 and full-motion
video up to 1080p
- Presentation remote for total conference control
- Equipped with VGA pass-through for an extra display |
|
|
|
Premium VGA Monitor Cable (15HDM/15HDM) |
Aus Wide Delivery: $15
|
Heavily shielded coaxial RGB cable giving you a crisper display at higher resolutions!
| . |
Features UL Approved Cabling |
| . |
Filters included on both ends cutting down on noise |
| . |
Maintains stronger signals using a shielded cabling run. |
| . |
Comes in 15pin D-sub format with Male to Male conectors |
| |
|
|
