Mitsubishi XD250U-ST DLP Short Throw Multimedia PROJECTOR


DISCONTINUED

FOR CURRENT MODELS CLICK HERE


XD250U-ST XGA Short Throw Projector
Engineered to provide large, eye-catching presentations even with limited space, the XD250U-ST data projector also offers excellent features and the longest lamp life from Mitsubishi Electric to date.

Features
Up to 6000 hour lamp life High 2600 lumens brightness and 2500:1 contrast ratio Ultra powerful short-throw lens 10 Watt speaker with "Audio Mix" feature BrilliantColorTM technology Visual PA message system Network control and management Auto Digital Keystone Correction (Vertical) Low operating cost - less than 1Watt in Standby mode HDMI and Dual PC input Password Lock Instant Shutdown Lightweight - only 3.4kgs

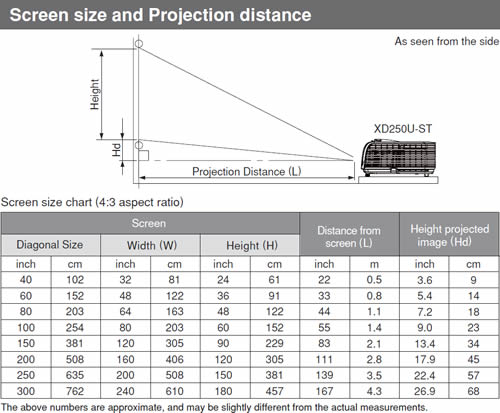

In the past, attempting to show large projected presentations in small rooms could prove quite difficult, as a projector would need to take up a lot of desk space in order to show a sufficiently large image. Thanks to the latest short throw projector from Mitsubishi Electric however, this problem is a thing of the past. Requiring only an 83cm distance to deliver a 1.5 m projection image, the XD250U-ST can be placed right at the edge of a table top, eliminating the loss of workspace commonly associated with conventional projectors. The XD250U-ST's lightweight and compact design also makes it ideal for sales presentations on the move or easy transfer between classrooms.

Great images in limited area isn't the only thing going for the XD250U-ST, as it also features an outstanding range of value-added functions. The built-in 10W speaker effectively eliminates the need for an external audio system in small rooms, while the "Audio Mix" feature allows the user to connect two audio inputs to the projector (e.g. a microphone and DVD player) and control each of the input volumes separately. The projector can be connected to a Local Area Network for remote monitoring and control, and the Visual PA feature allows messages to be simultaneously broadcast to multiple Mitsubishi projectors on the network. Low operatings costs are also a standout feature of the XD250U-ST, with a staggering lamp life of up to 6000* hours ensuring far fewer lamp changes, and a filter free design meaning less downtime for maintenance.

These are just a few of the many features found with the XD250U-ST. If limited space is getting in the way of your fantastic presentations, then check one out today.

Projector Screen Bundle




Specifications

Display technology

0.55" 1-Chip DMD, 12deg.LVDS, DDP2230

Native Resolution

1024 x 768 (total 786,432 pixels)

Brightness (Maximum)

2600 ANSI lumens

Contrast

2500:1

Zoom/Focus Manual Focus and Fixed Zoom
Projection Lens f=7.7 mm, F=2.8,  (1.4m@100")
Off set axis 7.9:-1 , Hd=0.23m up @100"

Picture Size

40" ~ 300"

Source lamp

2300W / 3,000 hours (Normal mode)*
190W / 6,000 hours (Low mode)*

Computer compatibility

Resolution ; 640 x480(Expand)  - 1024 x 768(Real) - 1280 x 1024 (Compressed), Sync on green available

Video compatibility

NTSC/ NTSC 4.43/ PAL (including PAL-M, N) / SECAM/ PAL-60, Component Video: 480i/p (525i/p), 576i/p (625i/p), 720p (750p 50/60Hz), 1080i (1125i 60Hz), 1080i(1125i 50Hz), (1080i(1250i, 50Hz)is not available)

PC input terminals

RGB: mini D-sub 15 pin x 2; HDMI x 1; Audio: Stereo mini jack x 1 (3.5mm)

Video input terminals

Composite RCA x 1, S-Video x 1; Audio RCA  (L/R) x 1, Stereo mini jack x 1 (3.5mm)

Output terminals

RGB: mini D-sub 15 x 1; Audio: Stereo mini jack x 1 (3.5mm)

Communication terminals

Serial (RS-232C) x 1, LAN (RJ-45) x 1

Audio Speaker 10W Mono,
Power consumption

330W, Less than 1W in standby (less than 3W when connected to network)

Power Supply AC100 ~ 240 V ±10%, 50/60 Hz

Fan noise

28dBA (Lamp low mode)

Dimensions (W x H x D)

325 x 118 x 251 mm (excluding all protrusions)

Weight

3.4 kg

Optional lamp

VLT-XD280LP

Included accessories

AC Power Cable, VGA Cable, Remote Control (with batteries), User Manual, Safety Manual,  Carry Bag



Rear Panel

Remote



Optional Accessories

Universal Flush Projector Ceiling Mount FB-1 *Recommended*
White - $149
Black - $149

Projector Mount

SPECIFICATIONS
Available in BLACK (FB-1B) and WHITE (FB-1W)
• Swivel: 360°, Adjustable roll, pitch and yaw.
• Rigid Steel construction.
• Durable powder-coated finish (Black or White).
• Supports up to 10kgs.
• Mounting hardware included.
• User manual included.
• All bracket models come standard with 4 x mounting arms.

FEATURES
- Direct to ceiling mount (150mm)
- Suits most projectors with 3 or 4 holes
