| SONY CINEZA VPLHS60 WEGA Home Theatre LCD Projector |
|
|
For Current Models Click Here |
CINEZA WIDESCREEN HOME PROJECTOR VPLHS60
Sony brings all the thrills and spills of the big screen experience into your home. Whether you are thinking about a dedicated Media Room or transforming your lounge room into a movie theatre, Sony makes it easy with the VPLHS60 Cineza Home Projector.
3 Panel LCD technology is used for superior performance in immense colour saturation, coupled with the new Advanced Iris Auto Function to deliver amazing Contrast of up to 10,000:1. Horizontal and Vertical Lens Shift allows the HS60 to be discreetly placed to one side, and still projects a neat image without loss of resolution, freeing up your coffee table for popcorn and drinks! In conjunction with an optional ceiling mount, this function can also be used to overcome any existing fittings in the centre of the ceiling space.
Sony's advanced video processing together with simple connectivity, ultra quiet operation and short throw lens make it the perfect choice for your personal movie experience at home! |
 |
In terms of image reproduction and colour saturation, video projectors have come a long way in a relatively short time - and, again, Sony has led the technological charge. Sony's home cinema video projectors utilise state-of-the-art 3-Panel LCD technology. This allows LINEAR COLOUR imaging - in other words, red, green and blue colours are produced independently and can therefore be displayed constantly. The result is more vivid colours and better control over contrast and brightness.
3-Panel LCD projectors are far more effective than single-chip projectors that rely on a spinning colour wheel. The 3-Panel LCD utilises continuous separate colour light paths of red, green and blue, resulting in superior colour saturation and reduced image flicker.
Cinema Black Mode
Cinema Black Mode is a feature of Sony's range of Home Cinema projectors. It allows the user to adjust the lamp drive wattage to either 'normal' or Cinema Black Mode to suit the ambient light conditions. Cinema Black Mode increases blackness and is ideal for viewing film sources.
Side Shot
Sony’s VPLHS3 features handy Side Shot technology. This image compensation feature allows the projector to be positioned off-centre, and the user can adjust the horizontal and vertical image planes to ‘square up’ the picture. The VPLHS60 uses a similar yet more superior function, Lens Shift, which allows the user even greater flexibility for projector placement.
Brightness and Contrast
The ANSI lumens measurement system is the standard for calculating light output - or brightness - from a projector source. An average figure is derived by measuring brightness at nine different points on the viewing surface. The higher the ANSI lumens figure, the brighter the on-screen image.
Contrast ratio is the measure of the difference of light from full white to full black while the projector is operating. The greater the contrast ratio, the brighter the images will appear and detail becomes more discernible. All Sony projector specifications are measured using the ANSI standard. |
|
Specifications
| Features
- 3 Panel LCD
- Widescreen LCD Panels: 1280x720 pixels
- 10,000:1 Contrast Ratio
- Auto Advanced Iris Function
- Horizontal/Vertical Lens Shift
- All Range Crisp Focus
- Real Colour Processing
- Ultra Quiet Operation - 23dB
- Ceiling Mountable
Optical
- Resolution: 1280 x 720 native pixel resolution
- Panel type: 0.73" LCD panel x 3 (each having 921,600 pixels)
- Contrast ratio: 1,700 - 10,000:1
- Projection system: 3 LCD panels with 1 lens
- Lens type: All Range Crisp Focus (ARC-F)
- Lens zoom range: 1.6 x manual zoom
- Lens shift: 1.0 x Screen Height (Up or Down) 0.5 x Screen Width (L or R) from dead centre
- Screen coverage: 40" - 200" (widescreen viewable area measured diagonally)
- Lamp type: UHP
- Lamp wattage: 135W UHP Lamp (LMPH130)
- Lamp life: 2000 - 3000 Hrs (Estimated)
- Fan noise level: 23 db due to efficient thermal design of body and silent fan technology
Signals
- Video: DTV - 480i,480p,576,575p,720p,1080i, 15khz RGB/Component, Progressive component, Y/C Video, Composite
- Computer: Up to 1280x768 @fV 60Hz, fH: 19 to 72 kHz, fV: 48 to 92 Hz
- Colour systems supported: PAL, PAL-M, PAL-N, NTSC, NTSC4.43 & SECAM
General
- Cabinet colour: Silver/Charcoal
- Power requirements: AC 100 to 240V, 50/60 Hz
- Power consumption: Max. 195 W, Standby 3W
- Expected Lamp Life: 2000-3000 hrs
- Low Fan Noise (dB): 23db
- Dimensions (W x H x Dmm): 348 x 135 x 360mm
- Weight: Approx 5.6kgs
Inputs/Outputs
- HDMI input: x 1
- 15-pin D-sub input: x 1
- Component video input: x 1
- S-video input: x 1
- Composite video input: x 1
- 12V minijack trigger input: x 1
hrow Distances
- Widescreen - 40": 1.2m - 1.8m
- Widescreen - 60": 1.8m - 2.7m
- Widescreen - 80": 2.4m - 3.7m
- Widescreen - 100": 2.9m - 4.6m
- Widescreen - 120": 3.5m - 5.5m
- Widescreen - 150": 4.4m - 6.9m
- Widescreen - 180": 5.3m - 8.3m
- Widescreen - 200": 5.8m - 9.2m
|
| Optional Accessories |
|
|
|
|

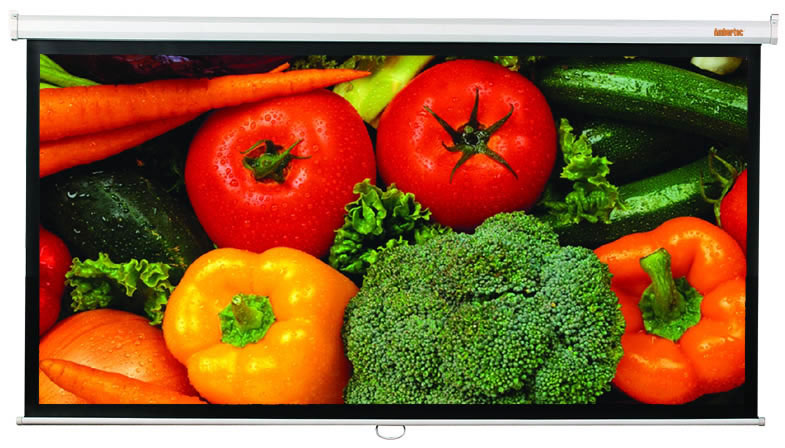

Amber 94" Pull Down Screen HDTV Format 16:9 |
With Projector Only
Normally $499
Delivery Add: $6
Pick Up Avail.
|
|
- Great for television, video's and data projection
- Designed especially for wide screen HDTV and Movies
- Matt White material for accurate colour reproduction.
- Black border for sharp image edges and sleek modern look.
- 2060mmW x 1160mmH Image size
- 1:1 Gain
- Check out the full range of screens here
|
|
|
|
|
Lindy Premium Gold Component Video Cable, 75ohm OFC Coax |
Aus Wide Delivery: $13
|
|
Premium quality AV cable for home theatre interconnects!
High quality interconnect cable with 3 RCA colour coded plugs each end. Designed to connect any source with component level RGB outputs to projectors, TVs or other display devices.
- 3 x RCA Male to 3 x RCA Male
- 24K gold plated connectors
- 99.99% Oxygen Free Copper
- Low loss "LPDE" dialectric
- Aluminium screening foil
- Cable colour: Blue
- 25 year warrant |
|
|
|
Extended Warranty
|
Program Coverage:
- LCD & DMD pixels are covered only as per original manufacturer's pixel terms & conditions
- Does not cover Cords, Power Adapter
- Does not cover consumable items such as projector globes |
| + 3 Year On-Site Extended Warranty (up to 5 years total) |
$299 |
| + 2 Year On-Site Extended Warranty |
$249 |
| + 1 Year On-Site Extended Warranty |
$209 |
| Buy your new VPLHS60 projector now, Contact Us today! |
|
|
|
