| Aten VS-491 4-port VGA Switch |
|
|
Insured Delivery: $16
|
4 Port Video Switch

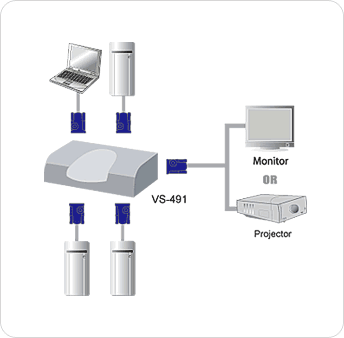

VS-491 is a video switch with 4 ports. It allows 4 independent computers to display their video outputs on a single monitor. Therefore, users will not need to buy monitors for each computer additionally.
Features:
- Electronic switching for greater reliability and durability.
- Displays the output of four computers on a single monitor.
- High resolution video - up to 1920 x 1440
- Long distance transmission - up to 65m
- DDC, DDC2,DDC2B Compatible
- Supports VGA, SVGA, XGA, UXGA and Multisync monitors.
- Computer selection via pushbutton switch
- Easy Installation - No Software Required
Specifications: |
| Connectors |
Video In |
4 x HDB-15 Female (Blue) |
| Video Out |
1 x HDB-15 Female (Blue) |
| Power |
1 x DC Jack |
| LEDs |
Selected Port |
4 |
| Port Selection |
1 x Pushbutton |
| Vido |
1920 x 1440 @ 60Hz |
| Signal Type |
VGA / SVGA / XGA / UXGA / Multisync |
| Cable Distance |
65 m [200'] |
| Power Consumption |
DC9V, 1.35W (Max.) |
| Environment |
Operating temperature |
0°C~50°C |
| Storage temperature |
-20°C~60°C |
| Humidity |
0 ~80% RH, NC |
Physical
Properties |
Housing |
Plastic/Metal |
| Weight |
0.18kg |
| Dimension ( L x W x H ) |
12 x 6.5 x 4.4cm |
|
|
|
