Easily switch between four HDTV devices using one HDTV display!
4 HDTV Sources + 1 HDTV Display = High Definition Convenience and Ease

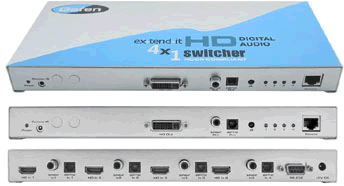

The ex.tend.it 4x1 HD Digital Audio Switcher enables effortless HDTV source switching using a single high definition display. A simple and reliable solution, it links any four HDTV sources (such as HD DVD players and satellite set tops) to one HDTV display. It completely eliminates the need to disconnect and reconnect multiple HDTV sources, saving time by providing a fundamental tool that brings it all together behind the scenes. When all three devices (the display plus the two sources) are connected to the 4x1 HD Digital Audio Switcher and powered on, you simply select which source you want to view on the display using the Switcher, the IR remote that comes with it, or any universal remote you program to work with the Switcher.
Fully HDCP Compliant
HDCP (high definition content protection) is a standard encoded into the video signal to prevent it from being pirated. If a source device is HDCP coded and is connected to a HDTV display or projector without the proper HDCP decoding mechanism, the picture is relegated to "snow" or in some cases, very low (480P) resolutions of the images. In order to see HDTV with HDCP compliance, the source, the display and any device in between must be equipped with DVI connections that can enable HDCP decoding, such as the 4x1 HD Digital Audio Switcher.
To use with HDMI (high definition multimedia interface) equipment, you will need to use our DVI to HDMI Adapter for the video only.

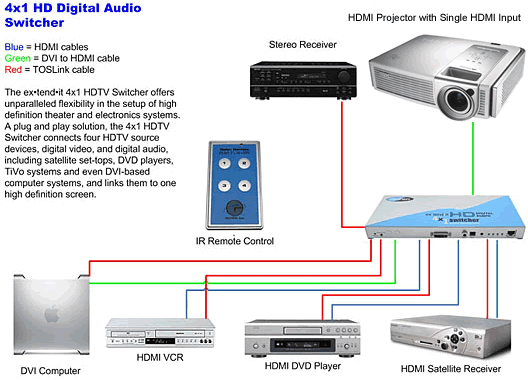

How it Works
Simply connect your display to the Switcher's DVI output and your digital audio device to the digital output. Then connect the four sources to the Switcher's HDMI inputs using the HDMI cables and TOS link cables that come with the Switcher. Once the sources, the Switcher and the display are all powered on and connected, you simply select which source you want to view and listen.
- Saves money on hardware - no need to purchase multiple high definition displays
- Saves space - a single high definition display works with both DVD players and satellite set tops
- Saves time - no need to disconnect and reconnect HDTV devices - everything is always connected and accessible
- Maintains high resolution video - beautiful, sharp HDTV resolutions up to 1080P are easily achieved. 4x1 HD Digital Audio Switcher conforms with HDMI 1.0 specifications for resolutions up to 1920 x 1200
- No loss of quality - the integrity of the high definition signal is preserved throughout the transmissions using high calibre HDMI cables that ensure the signal is maintained
- Operational flexibility - you can switch at the source, with the IR remote control or your own universal remote
- Compatible with all HDMI-equipped, HDCP-enabled HDTV devices
- Easy to install and simple to operate
- Package Includes: 4x1 HD Switcher, RMT-4IR Remote Control, Four 2-metre HDMI Cables, 5VDC Power Supply
Specifications: |
