BENQ SP831 DLP LARGE VENUE WIDESCREEN PROJECTOR



BenQ Logo


DISCONTINUED

For the current BenQ Range Click here


SP831 Reviews:
" Although the SP831 is incredibly powerful it is whisper quiet with an amazing noise level of just 31dB on economic mode and 33dB on high brightness mode. As an added bonus the they both include Vertical and Horizontal Keystone correction, allowing much more flexibility with placement. You can have it not only above or below the screen but also to either side.

We we're very happy with the image and even though they are this Powerful the colour reproduction is quite good, surprising even. In the higher brightness modes it does sacrifice some of it but for pubs wanting to show the footy some movies and even the home user with an unbearable amount of light in the room this unit will not dissapoint. "


Best big screen experience
Take presentations to a whole new level with the new BenQ SP831 data projectors. Made for any auditorium, colors and details are delivered with crystal-clear smoothness that'll even make video projectors blush. Plus, with its unique technology and brightness to spare at 4,000 stunning ANSI lumens, the WXGA projectors will never leave your audience in the dark.

Best Visual Experience
10-bit color - Instead of using 8-bit technology with only 16 million colors, the SP831 is able to process a full 10 bit of color data to distinguish and display more than 1 billion colors. The pictures are more lifelike and the color precision is better than ever.

Chroma & Luma Transition Enhancement

Color video signals such as NTSC, PAL or SECAM types all have luminance (luma) and chrominance (chroma) components. As the chroma signal bandwidth is usually narrower than luma signal bandwidth, color edges changes occur much slower than luma edges changes. In other words, a chroma signal transition occurs fairly slower than a luma signal transition. Consequently, chroma signal edges/transitions usually appear degraded. With Chroma & Luma Transition Enhancement, the SP831 sharpen the chroma signal transitions to give you razor-sharp video signals with no distracting picture blur.

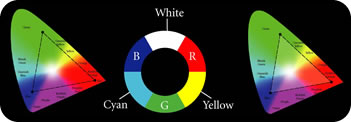

Six Segment Colour wheel

The BenQ SP831 features a six segment colour wheel giving it a much wider colour gamut to select from and much more vibrant and accurate colour. The units' 6 segment colour wheel also eliminates rainbow effects seen in its predecessors (PB8250, PB8260) and some older DLP models.

Independent Color Management

See colors the way they're meant to be. Through the power of 6 independent color adjustments, you can precisely fine-tune saturation levels of even a single color in any image.

Noise Reduction - Via a temporal noise filter, several frames are evaluated at once. Pixels that give rise to visual noise are then instantly identified and eliminated. Distortion resulting from too much compression is also corrected.

Detail Enhancement - Whether you're looking at moving or static images, the HQV Detail Enhancement technology identifies any blurred areas before processing and wiping them away. Contrast is then added automatically to making details stand out clearly.

BrilliantColorTM - True beauty comes from within. The revolutionary BrilliantColorTM enables higher brightness levels by boosting mid-tone colors - guaranteeing your presentations are more vibrant and precisely rendered.



WXGA (1280 x 768) - Don't just make a presentation, make an instant impact. With resolution this high, deliver presentations in widescreen with sharper images that not only wow your audience, but also stays true to what you see on your laptop.

4,000 ANSI Lumens - Never worry if you can't always be guaranteed a dark room. The lumens generated by the SP831 is so bright, it's more than enough to highlight your presentations.



Convenient Features

Split Screen - With a simple touch of a button, there's no fumbling around to show two presentation files simultaneously and clearly.

Digital Zoom - Want to really go into detail? There's no problem with the digital zoom. You can zoom in real close.

Offline Cooling - Simply unplug and pack up after each presentation. The built-in circuit system allows the cooling fan to continue operating even after it is unplugged.

2D Keystone - If it isn't possible to align the projector correctly with the screen, don't despair. You can adjust the shape of the projected image to ensure straight lines on all four sides.

Various Inputs - BenQ projectors are designed with you, the user, in mind. That's why you'll find, along with the clever features, multiple connecting devices for maximum compatibility.


Specifications
Native Resolution
WXGA (1280 x 768)
Projection System
DLP® by Texas Instruments
Brightness
4000 ANSI lumens
Lamp
300W, up to 3000/4000 hours (Normal/Economic mode)
Contrast Ratio
2000:1
Weight
4.5 kg
Noise Level
33/31 dB (Normal/ Whisper mode)
Resolutions Supported
640 x 480 to 1600 x 1200 - PC input. Up to 1080p - Video input
Dimensions (WxHxD)
375 x 115 x 277 mm
Image Size
25" to 300"
Throw Ratio
100" @ 3.45m (100"@11'4") 1.56 to 1.81:1
Throw Distance
Min: 1.00m; Max: 10.34m
Zoom Ratio
Manual Zoom, 1.16:1
Lens
F=2.4 to 2.58, f=22.32 to 26.06mm
Keystone Adjustment
Vertical +/-40 degrees
Horizontal +/-30 degrees
Colour
1.07 Billion
Aspect Ratio
15:9 Native
Horizontal Frequency (KHz)
24-82 KHz
Vertical Scan Rate
45-85Hz
Projection Position
Front/Rear, Table/Ceiling
Input Terminals
Analog RGB: D-sub 15 pin x 1
DVI-I (HDCP support)
RJ45 x 1
A/V Component Video: RCA x 1 set
S-Video: Mini Din 4 pin x 1
Composite Video: RCA x 1
PC Audio: stereo mini jack x 3
L/R audio = RCA set x 3
Output Terminals
Analog RGB: D-sub 15 pin x 1
L/R audio = RCA set x 1
Control Terminals
USB Connector : USB X1, Type mini B
Serial Connector: RS232 8 pin mini din
Wire control : mini jack x 1
Speakers
2 Watt Speaker x 2
Video Compatibility
PAL / NTSC / SECAM 480i/p, 576i/p, 720p and 1080i/p
Auto Switching Power Supply
100 to 240 V AC, 50 to 60 Hz
Power Consumption
Max 450W (Max. 80% at Economic Mode)
On-Screen Display Language
English/ French/ German/ Italian/ Spanish/ Russian/ Traditional Chinese/ Simplified Chinese/ Japanese/ Korean/ Swedish/ Dutch/ Czech/ Portuguese / Polish (15 languages)
Preset Modes / Application Modes
PC Input:
Presentation Mode
Blackboard Mode
Cinema Mode
Dynamic Mode
sRGB Mode
User1/User2/User3
A/V Input:
Cinema Mode
Dynamic Mode
Standard Mode
Blackboard Mode
Features
Spilt Screen
BrilliantColour
HQV*
3D Colour Management
Smart Source Detection
Off & Go (Offline cooling)
DVI (HDCP supported)
My Screen
2D Keystone
Auto Off
Password Lock
HD TV Compatible
Digital Zoom
3 User Modes
Panel Key Lock
Sleep Timer
Background Colour Selection
Digital Screen Shift
Color
Black and silver
Accessories (Standard)
User's manual
Quick Start Guide
Manual CD
Remote Control Batteries for R/C
VGA Cable
VGA to DVI Cable
Power cord
Supplied Accessories
Remote
Rear Panel

Optional Accessories
