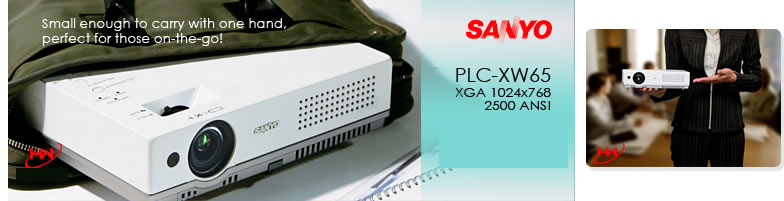

Sanyo PLC-XW65 LCD Ultra Portable Multimedia Projector








DISCONTINUED
FOR CURRENT SANYO PROJECTORS CLICK HERE

The smallest, lightest and brightest XGA LCD projector, the new Sanyo PLC-XW65 weighs in at only 1.6 kg. Suitable for mobile professional or travellers, the projector also features automatic keystone correction, automatic input signal detection, adjustable color mode, and more.

Small enough to carry with one hand
Offers simple setup
Automatic keystone correction
Automatic input signal detection
Micro-portable projector, net weight only 1.6 kg
Brightness 2,500 ANSI lumens
Contrast 500:1
Resolution in Pixels 1,024 x 768 (XGA)
Wide angle lens with 1.2 optical zoom allows flexible positioning (1.33 - 1.62 : 1)
Key Lock function, Pin Code Lock for security

Industry’s smallest and lightest* body (264.0 (W) x 55.0 (H) x 188.0 (D) mm and 1.6 kg) offers great portability. (not including protruding parts)

Brightness of 2500 lumens
With the compact, light-weight body, the projector provides a brightness of 2,500 lumens (PLC-XW65),2000 Lumens (PLC-XW60). This allows for clear projection even in a small meeting space or conference room.

1.2x Optical Zoom
PLC-XW60 is equipped with a zoom lens that allows screen size adjustment. The optical zoom hardly deteriorates the image quality. The short-focus type lens allows large screen image projections with a short throw distance. PLC-XW60 enables 100- inch screen projection at the shortest distance of 2.7 m.

Auto Vertical Keystone Correction
The PLC-XW60 and PLC-XW60 automatically compensates for keystone picture distortion.



NOTE: Correction range varies depending on operation settings such as lens shift ratio, lens zoom magnification and so on. On-screen image size after correction is smaller than that of original. The correction range is up to 20 degrees.

Wall or Blackboard (Green) Projection
In addition to the black board (green) mode, the PLC-XW65 and PLC-XW60 provides four color (red, blue, green, yellow) board modes, enabling easy projection* without using an ordinary screen.


* The projected image color may be different from input signal color.

Easy Setup
PLC-XW60 provides "Auto Setup Function" that corrects keystone shape distortion by searching for an input signal and detecting projector incline, reducing setup time.
Furthermore, the "Screen Guidance Function" allows projector set up according to the displayed guidance. This function provides beginning users an easy guide to projection.

Two D-Sub
The PLC-XW65 and PLC-XW60 have two D-sub input terminals. One of these can be switched and used as a monitor output terminal.

Power On Startup
The power turns on as soon as you connect the power cord. No need to press any buttons on the remote control or projector

Power Off & Go
No need to wait for the projector to cool down. The power cord can be disconnected right after your presentation.






Specifications
Panel 3 x 0.63 " TFT p-Si (4:3), micro lens
Lamp 175W UHP (LMP-123)
Brightness 2500 ANSI lumens
Lamp life 3500 h (eco mode) / 2000 h (normal mode)
Fan noise 30 dB (eco mode) / 34 dB (normal mode)
Standard lens F = 1.77 - 1.99 / f = 17.4 - 21.1 mm
Contrast ratio 500:1
Resolution in pixels 1024 x 768 (XGA)
Uniformity 85%
Colour system PAL, SECAM, NTSC, NTSC4.43, PAL-M, PAL-N
Connections Input 1: D-Sub15 (RGB)
Input 2: D-Sub15 (RGB) or Monitor Out
Input 3: RCA (Composite)
Audio: 3.5mm Stereo Jack for Computer
Audio: 2 x RCA (R/L mono) for video
Control Input Jack : Mini-DIN 8-pin (RS232 compatible)
Audio function 1W Mono
Keystone correction vertical +/- 20°
Up/down ratio 6:1 (Fixed U/D Ratio)
Zoom/focus 1.2x/manual focusing
Power consumption 188 W (eco mode) / 219 W (normal mode)
3.8 W (stand-by mode)
Voltage 100 - 240 V
Operating temperature 5°C - 35 °C
Storage temperature -10°C - 60 °C
Dimensions (W x H x D) 264 x 55 x 188 mm
Weight (Net) 1.6kg
Weight (Gross) 3.7kg
Packaging Dimensions (WxHxD) 382 x 195 x 380 mm
Standard accessories Remote control, Batteries, User manual (CD-ROM), Power cable, PIN code label, Carry bag, Lens cover, power cord
Rear Panel
