Sanyo PLC-XU106 High Brightness Digital LCD Projector


DISCONTINUED
FOR CURRENT SANYO PROJECTORS CLICK HERE

The PLC-XU106 delivers true XGA resolution at 4500 ANSI lumens, with 1000:1 contrast ratio using inorganic LCD panels, and it’s not much larger than a laptop – only 7.5 pounds. When it comes to versatility, there’s a go-anywhere (including ceiling mount) ability to this projector. One big reason is because it uses a 1.6X zoom lens. A lens like this can throw a crisp, bright 100” diagonal image from a distance of only 7.9 feet.

The PLC-XU106 automatically compensates for vertical (± 40 degrees) keystone picture distortion, along with adjustments for corner vertical and horizontal keystone. Auto Input Signal Search to automatically find an input signal, and a helpful Guidance Function on screen to assist in easy connection. The projector is also, equipped with LAN (RJ-45) input that allows for management and projector control via the Network. A versatile, projector when you need it.

POWER-OFF AND GO AND DARK-SURFACE PROJECTION CAPABILITY
No need to wait for the projector to cool down. You can disconnect the power cord right after your presentation without worrying about overheating. And speaking of presentations, for more effective presentations in rooms with dark-surfaced walls, the PLC-XU106 projector features the blackboard (green) mode, which automatically adjusts the white balance and gamma correction to project a detailed image without a screen.

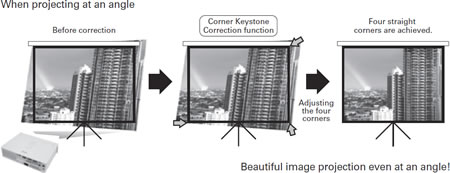

2D Keystone
The PLC-XU106 automatically compensates for vertical (± 40 degrees) keystone picture distortion, along with manual adjustments for corner vertical and horizontal keystone(± 30 degrees). The Corner Keystone Correction Function eliminates the trapezoidal image distortion that is caused by projection at an angle. Beautiful image projection is possible by adjusting the four corners using the buttons on the main unit or remote control to eliminate trapezoidal distortion.

USER-SPECIFIED START-UP SCREEN
To create a more professional presentation, logo and image files may be captured for display during the projector’s countdown start-up sequence.

SECURITY FEATURES
A PIN code lock provides a setting for security. The PLC-XU106 projector cannot be operated without a four-digit number.

VARIABLE AUDIO OUT
This convenient feature allows the user to control the audio level right from the projector. The centralization of video and audio controls from the projector helps in educational applications by ensuring the technical quality of the presentation and eliminating the fuss of separate outside audio controls.

360° Degree Tilt Angle
The PLC-XU116/ XU106 can project images while they are tilted 360 degrees around their horizontal axis in either direction - for more flexible setup.

NOTE: Be sure to set the lamp control to High and the fan control to MAX in the setting menu when the projector is inclined between +40 degrees and +140 degrees to the horizontal plane.
Wide 1.6x Zoom Lens
The wide-range 1.6x zoom lens lets you project a 100" image from as close as 2.4 meters from the screen, to as far away as 3.8 meters. That makes it a lot easier to find suitable places to set the projector up.



Specifications

Brightness
4500 lm
Resolution
XGA (1024 x 768)
Uniformity
85%
Panel System
0.8” TFT Poly x 3
Number of Pixels
2,359,296 (786,432 x 3)
Contrast Ratio (Full on / off)
1000:1
Image Size
40"-300"
Aspect Ratio
4:3
Projection Lamp (s)
275W
Scanning Frequency
H:15-100kHz, V:50-100Hz
Dot Clock
140MHz
dB Rating
30dBA (Eco)
Voltage
100-240V
BTU Rating
969 (Eco)
Power Consumption
284W (Eco)
Weight
7.5 lbs
Dimensions (inch)
13.2"x3.1"x10.1"
Projection Lens (inch)
F 1.7 - 2.5 f=0.76" - 1.19"
Throw Distance (feet)
3.05' - 37.7'
Zoom / Focus
Manual
Throw Ratio
1.15 - 1.85
Zoom Ratio
1:1.6
Up / Down Ratio
9:1
Power Lens Shift
No
Optional Lenses
No
Rear Screen Projection (L / R Reverse)
Yes
Ceiling Mountable (T / B Reverse)
Yes
Digital Keystone Correction
V +/- 40°, H+/- 30° (Auto V-Keystone)
Digital Zoom
16x - 1/4x
Digital Interface (HDCP Compatible)
No
Analog Interface
D-sub 15pin, S-Video, RCAx2
USB Port
No
RS-232 Control Carry and / or
Mini Din 9-pin
Speaker Output
1W
Audio Output
Stereo Mini (Variable)
PC Monitor Output
Yes
PC-Less Presentation
No
Wireless Presentation
No
Network Control / Admin
Yes
Custom Startup Screen
Yes
Detachable Input Panels
No
Shipping Case
Soft Case
Remote Control
IR Remote
Lamp Life * (hours Normal / Eco)
3000h (Eco)
