Sanyo PLC-WXU700A High Brightness Widescreen LCD Projector



DISCONTINUED
FOR CURRENT SANYO PROJECTORS CLICK HERE


A Great Match For Widescreen PC's
The wide XGA 1280 x 800 (16:10) resolution of the PLC-WXU700 makes it possible to project high quality HD images from virtually any location, The PLC-WXU700 achieves a high 3800 lumens of brightness thanks to a number of advanced technologies in its optical engine and a 275-watt lamp.

EASY NETWORK SETUP FROM USB ADAPTER
The PLC-WXU700 has an innovative wireless feature called “Easy Wireless Set Up” .This model can set up a wireless connection easily without installing a software from a CD-ROM. Just pass off the USB memory. Just connecting the PC and USB memory, the program in the PLC-WXU700 starts running automatically, and the image will be projected directly on the screen.

NETWORK ON WINDOWS VISTA®
Incorporating Window® Embedded CE 6.0 software, the PLC-WXU700 can be used as a network projector on any computer running Windows Vista®. The content on any PC monitor from a LAN can be transmitted wirelessly to the projector, eliminating a complicated setup with special programs or drivers. By opening Windows Vista Network Projector function on a PC, the computer will search for the projector and complete the connection with a single click

COMPLETE EASY AUTO SET UP FUNCTION
PLC-WXU700 provides "Auto Set Up Function" that corrects keystone shaped distortion by searching for an input signal and detecting projector incline, therefore reducing set up time. PLC-WXU700 automatically compensates for keystone picture distortion. Auto Keystone Correction, Auto Input Search and Auto PC Adjustment make it a really smart projector.

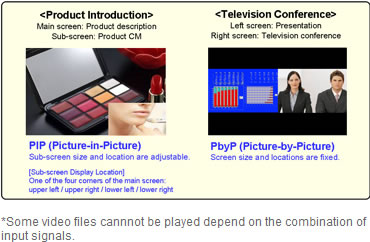

PICTURE IN PICTURE ( P IN P)AND PICTURE BY PICTURE ( P BY P) FUNCTION
Capable of projecting two images simultaneously by using either “P in P” and “P by P” functions. These functions are useful in video conferenceing and educational systems.

PROJECTING VIDEO PERFECTLY
High speed wireless and video streaming feature employs truly smooth video Wireless transmission speed has been further increased with industry’s 1st IEEE802.11n*2 high-speed wireless LAN capability and video streaming feature can be used to play a video from a hard drive on a computer with streaming.

Wide Range 1.6x Zoom
The wide-range 1.6x zoom lens lets you project a 100" image from as close as 2.5 meters (8.3 ft) from the screen, to as far away as 4.1 meters (13.5 ft), That makes it a lot easier to find suitable places to set the projector up.


Specifications

System RGB liquid crystal shutter projection system
LCD panel system
Size 0.74 inch x 3, Aspect Ratio 16:10
Pixel Count 1,024,000 (1280 x 800) x 3; Total pixels 3,072,000
Projection lens Manual Zoom (1 - 1.6x), f = 19.2 - 30.2 mm, F = 1.7 - 2.5
Light source 275W
Screen size (Projection distance) 40” – 300”; 1.0m (wide) - 12.1m (tele); 100”: 2.5m - 4.0m
Colour reproducibility Full color (16.77 million colors)
Contrast ratio (Full On/Full Off)*1 500:1*2
Brightness*1 3,800 ANSI lumens
Uniformity*1 85%
Audio output / Speaker 1W mono / 2.8cm (circular) x 1
Scanning frequency Horizontal: 15 - 100kHz, Vertical: 50 - 100Hz, Dot Clock: 140 MHz or less
Resolution (resizing) (when using RGB signal) 1280 x 800 dots (WUXGA and WSXGA resizing possible)
Input terminal
PC input Digital input; HDMIx1; Analog RGB input; D-sub 15 x2 (IN-1: Component input compatible)
Video input RCA (Video) x 1/ S-video x 1
Audio input RCA (L,R) x 1 / Stereo mini jack x 2
Video input/output Analog RGB output: D-sub 15-pin x 1 (also input: IN-2); Audio output: Stereo mini jack x 1
Controller input/output and Other Control port (RS232C); D-sub 9-pin x 1; Controller mouse: USB-B; Memory viewer: USB-A; Wired remote control connection
LAN
Wireless IEEE802.11b/g/n Draft 2.0
Wired RJ45 (100Base-TX/10Base-T)
Operating temperature 5 - 35°C
Power consumption 364W (High mode), 333W (Normal mode), 292W (Eco mode)
Standby: 15.0W (Normal mode), 10.5W (Eco mode)
Power source AC 100V (±10%), 50/60Hz
Dimensions (W x H x D) 334 x 78.4 x 257.5mm (not including protruding parts)
Weight 3.6kg
Main accessories Removable power cord x 1; Networking software (CD-ROM); D-sub to D-sub cable x 1; PIN Code label; Instruction manual; Wireless remote control x 1 (AAA battery x 2); Networking software x 1 (USB memory); Soft carrying bag; Lens cap x 1

Supplied Accessories
Remote
Case
None

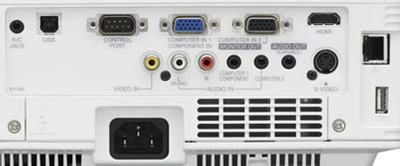

Rear Panel
