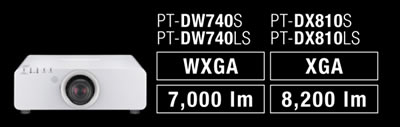

Bright 7,000 lm from Compact Body New lamp drive system has helped to make the body as compact as Panasonic’s PT-DW740 Series, while providing high brightness of 7,000 lm

RGB Booster significantly improves color reproduction

The RGB Booster achieves high image quality with levels of color reproduction and brightness that make each color stand out.It combines Panasonic’s proprietary Vivid Color Control technology with a newly engineered Lamp Modulation Drive System for a 1-chip DLP™ projector that produces bright and vivid colors.

Vivid Color Control This unique control technology optimizes the use of the color segment areas of the color wheel. It increases the brightness of each RGB color by minimizing the unallocated portions between the colors, to achieve truly vivid coloring. Lamp Modulation Drive System With the advanced lamp modulation technology, the projector is able to control the lamp intensity for each of the red, green, blue, and white segments of the color wheel separately. Because the actual light output is controlled in relation to each color segment, light usage is optimized and color balance is obtained without lowering the brightness. This results in bright vivid images with increased color fidelity.

Detail Clarity Processor Brings Depth and Clarity to Details

This advanced image-processing circuit analyzes the video signal frequency range for each scene by extracting data on the distribution of high, mid, and low-frequency components, and brings out fine details accordingly. The resulting images have a more natural, three-dimensional appearance with crisp, clear detail.

System Daylight View 2 for Enhanced Color Perception Image details are less clear when a projector is used in a room with the lights on. Panasonic’s System Daylight View 2 improves brightness perception by adjusting sharpness, gamma curves, and color corrections. This produces crisper, more stunning images with vivid colors even under bright conditions.

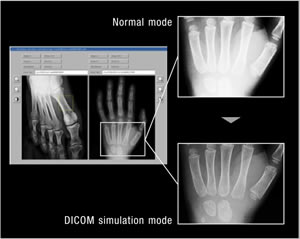

DICOM Simulation Mode* This imaging mode is similar to DICOM part 14, which is a medical imaging standard. It reproduces X-ray images with remarkable clarity. * This product is not a medical instrument. Do not use it for actual medical diagnosis. Rec. 709 Mode for HDTV Projection Optimal color reproduction can be achieved by selecting this mode, compliant with ITU-R Recommendation BT.709, when images from an HDTV source are projected.

Eco filter that needs no maintenance for up to 12,000 hours*

The original Eco Filter consists of two Micro Cut Filters (electrostatic filters), a pre-filter and a main filter, which use an ion effect to collect extremely small dust particles. The pre-filter has a honeycomb configuration and the main filter is pleated to achieve a large surface area that raises its dust collecting performance. Thanks to these features, the Eco Filter has a replacement cycle of up to 12,000 hours, * which reduces the hassle of maintenance. And, as an environmental consideration, the filter can be washed with water and reused.**

* The usage environment affects the duration of the filter.
** When washing with water, please follow the procedures listed in the operating instructions.
Also, we recommend replacing the filter with a new one after it has been washed and reused twice.
If the filter is not sufficiently clean after washing, replace it with a new one.

Dual-Lamp System Prevents Image Interruptions

The Dual-Lamp System eliminates the need to interrupt a presentation if a lamp should burn out (in dual-lamp operation mode). The Lamp Relay mode also operates the lamps alternately to enable 24/7 projector operation.

Flexible Installation

The wide adjustment range of the powered horizontal/vertical lens shift function assures convenience and versatility during installation. It lets you easily make adjustments with the remote control. The unit can also be rotated 360 degrees vertically. This means you can install it at any angle you want, to accommodate different installation conditions.

A Wide Range of Optional Lenses

Choose from a wide lineup of optional lenses for your system, including short-throw, long-throw zoom and fixed-throw lenses for rear projection use. The additional lenses make it easy to adapt your projector to the installation site. The lenses attach and detach with one-touch ease.

Lens-centered design

A lens-centered, symmetrical design provides ease of installation, eliminating the need for any special considerations when planning the installation site.

Easy replacement of Filter and Lamp

An Eco Filter is replaced from the side and lamps are replaced from the back panel. Both of them are replaced very easily even after the projector is installed on the ceiling.

Side-by-Side Function

The PT-DW740ES can simultaneously display images from two sources onto a single screen. For example, you can display a PC image on the left and a video image on the right. Taking advantage of the wide-screen projection, this function gives you a host of new application possibilities to explore.

* This function is not effective for some source combinations.

Versatile System Configurations Match a Variety of Applications

The wide-ranging terminals include 2 sets of RGB inputs (compatible with Y/PB/PR signals), an HDMI input,
and a DVI-D input. A serial input/output terminal (RS-232C compliant) that allows remote operation from a PC, similar to that of a wireless remote control, and a remote terminal for input switching by contact control and standby ON/OFF operation also make it possible to configure a remote operation system.

Easy Remote Monitoring and Control over a LAN

Web browser on a computer connected through a wired LAN system lets you remotely operate projectors and check their status. An e-mail messaging function can also notify you when a lamp needs replacement, and indicate the overall projector status.

In addition, Multi Projector Monitoring and Control Software is available for monitoring and controlling multiple Panasonic projectors from a single PC.

The wired LAN terminal is compatible with PJLink™ (class1), an open protocol that is used by many manufacturers, to enable integrated control of systems that contain different brands of projectors.

Crestron RoomView and AMX Device Discovery

The LAN terminal allows a computer connected to the network to use Crestron RoomView™ application software to manage and control system devices. Besides, The AMX Device Discovery technology is built in the PT-DZ770 Series.

Wireless Remote Control with a Maximum Operating Range of 30m (98ft)

Wireless Remote Control provides greater convenience for large conference rooms, lecture halls and gymnasiums with large audiences. Also, two signal transmission ports are provided to enable a large operating area.

Standby Mode: Eco*

The PT-DZ770 Series projectors have attained a low standby power level of 0.2 W** (standby mode: eco). It also helps to slash running costs, and reduces environmental impact.

* When the standby mode is set to eco, network functions such as power on over the LAN will not operate. Also, only certain commands can be received for external control using the serial terminal.
** For 120 V AC power supply. 0.3 W for 200-240 V AC power supply.

Made in Japan

The PT-DZ770 Series projectors are carefully manufactured at the Panasonic factory in Japan, under strict quality control. This is another, very important advantage of a Panasonic projector.

Other Valuable Features

3D color management system
HD IP conversion
Digital noise reduction
Dynamic sharpness control
Mechanical lens shutter
Direct Power Off allows unplugging the power cord right after use
