Panasonic PT-AX200E LCD Home Theatre PROJECTOR


DISCONTINUED




PT-AX200E Reviews:

"We liked the image being bright and contrasty with top notch colour reproduction. We tested on some DVD's and gave it a few rounds on the xbox 360 with good performance. The only qualms we had aside from the fact that this new unit wasn't terribly revolutionary is the smoothing technology panasonic have employed from the AX100. Though the intention is to make a more fim like image we find it makes it look a tad off focus."



Performance
Features
Ease Of Use
Value

Last fall, with the release of the PT-AX100U, Now comes the second generation of this design, the PT-AX200U. There is nothing revolutionary about this new model—it is simply a refinement of the outstanding AX100, with a few new features.

The most impressive attribute of the Panasonic AX200U is its beautiful rendering of HD DVD and Blu-ray. During this review the phrase "poor man's 1080p projector" kept coming to mind.




A Bigger Picture Brings Images to Life!
The PT-AX200 is ideal for watching sports events or playing video games in daytime conditions and surely for viewing movies in a dark room. Powerful 2,000-lumen brightness and new Light Harmonizer 2 technology make it easy for people to enjoy vibrant, dynamic images even if they don't have a special theater room. Panasonic’s advanced technologies improve color reproduction accuracy in movies, to deliver images with a refined “Hollywood picture quality,” making this projector ideal as the heart of a home cinema system.

2,000-Lumen Brightness—Brightest in its Class*1
Panasonic developed an extremely powerful lamp to realize an outstanding brightness of 2,000 lumens, brightest in its class.*1

Light Harmonizer 2 Brings Crisp Picture in Various Lightings
Together with the 2,000-lumens brightness, Panasonic’s Light Harmonizer 2 technology produces vivid and easy to see images even in the kind of bright lighting that makes images from other projectors look whitish, faded or lacking in detail. In addition, it has a built-in ambient light sensor (ALS) that measures the amount of light in your room to optimize the picture quality at different lighting conditions.*2 Light Harmonizer 2 circuit not only adjusts the gamma curve, but also controls iris setting, lamp power, and picture sharpness to maintain easy, comfortable viewing at all times.

Game Mode for Stress-Free Playing
The PT-AX200 features a “Game” mode that improves signal processing for better response, allowing you to play games with minimal stress. It also reveals gradation in saturated areas to show detail that are otherwise lost in very dark areas.

Cinema 1 Mode Offers Hollywood Picture Quality
Panasonic worked with experts in Hollywood—the movie capital of the world—to create the ideal image reproduction for viewing movies. This allows the PT-AX200 to deliver true Hollywood picture quality, with images that faithfully express the director’s artistic intent.

Pure Color Filter
The Pure Color Filter was born from Panasonic’s pursuit of optical technology that delivers true Hollywood picture quality. The light spectrum is adjusted to produce a level of light that maximizes the performance of the LCD panels, which expands the color range and produces truer blacks.

Smooth Screen Technology
Developed exclusively by Panasonic, this effectively reduces the black lines between pixels that mar picture quality. The highdefinition picture of the PT-AX200 is remarkably smooth and film-like, while remaining amazingly sharp and detailed.

Dynamic Iris
Dynamic Iris has been refined to provide deeper, richer blacks needed for true image reproduction with stunning smoothness. This technology adjusts the lamp power, iris, and gamma curve according to data obtained from frame-by-frame histogram analysis of the image brightness level.

Advanced Dynamic Sharpness Control
The new Advanced Dynamic Sharpness Control determines image areas that need to be sharpened at varying degrees by examining small changes in brightness levels within the image. This greatly reduces noise amplification and delivers clear and natural looking images.

2x Optical Zoom Lens
The 2x optical zoom lens provides a wide throw range that gives you outstanding setup flexibility, letting you enjoy large-screen viewing in different sized rooms. Position it on a table in front of you, suspend it from the ceiling, or place it on a bookshelf behind you. Vertical and Horizontal Lens Shift Adjust the positioning of the picture vertically and horizontally by simply operating a joystick. The shift range is 63% of the screen height for vertical adjustment, and 25% of the screen width for horizontal adjustment. Two HDMI Inputs Two HDMI inputs let you connect two devices, such as a BD player and game console, at the same time, using HDMI cables. This eliminates the need for an HDMI switcher. Simple, Convenient Remote Control The remote control is intuitively laid out for ease of use. The picture mode select buttons are divided into “Theater Room” and “Living Room” to separate the modes into those recommended for dark room viewing and bright room viewing respectively.




Specifications
Specifications
Projector System LCD System
Native Resolution RGB (Pixels - W x H) 1280 x 720 ( 1920 x 1080 pixels with compression)
Number of Pixels 1 2764800
Lines of Resolution (Video/TV) 720
Colour System PAL, PAL-M, PAL-N, PAL 60Hz, SECAM, NTSC, NTSC 4.43
Applicable PC Input Signals TBC
Lamp Power (Watts) 220
Lamp Brightness Max (ANSI Lumens - Single Lamp) 2000
Lamp Brightness Max (ANSI Lumens - Dual Lamp) -
Lamp Type/System UHM (TM) Lamp
Lamp Mode-Type/Lamp Life TBC
Lamp Mode-power/Brightness (Lumens) TBC
Contrast Ratio Up to 6000:1
Minimum Projection Size - Diagonal (mm) 1016
Maximum Projection Size - Diagonal (mm) 5080
Lens Shift Vertical, Horizontal
RGB Input Scanning Frequency Horizontal:30-70 kHz, Vertical: 50-87 Hz
Component Signal TBC
HDMI Input/Output Yes, Input Only
Video In Terminal RCA
Video Out Terminal(s) TBC
S-Video Terminal(s) Yes, 1, Mini DIN 4-pin
RGB1 Input Terminal D-sub HD 15-pin
RGB2 Input Terminal TBC
Optional Board Slot No
RS-232C/422 In Terminal Mini DIN 8-pin female
RS-232C/422 Out Terminal TBC
Remote 1 Input TBC
Remote 1 Output TBC
Remote 2 Input TBC
Optical Axis Shift Horizontal +/- 25%, Vertical +/- 63%
Horizontal Keystone Correction +/- (degrees) TBC
Vertical Keystone Correction +/- (degrees) 30
Panel Aspect Ratio 16:9 (Widescreen Standard), 4:3 (Compatible)
Aspect Ratio Format Switching TBC
Aspect Ratio Control Modes (PC mode) TBC
Aspect Ratio Control Modes (TV/AV modes) TBC
Projector Installation Ceiling/Desk, Front/Rear
Maximum Power Consumption (Watts) 290
Stand-by Power Consumption (Watts) 2 0.08
Operating Temperature Range - Minimum (degrees C) 0
Operating Temperature Range - Maximum (degrees C) 40
Operating Humidity Range 20% - 80%RH (non condensation)
Remote Control Standard
Height (mm) 112
Width (mm) 395
Depth (mm) 300
Weight (kg) 4.9

Supplied Accessories
Remote

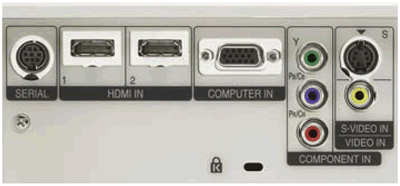

Rear Panel
