VIEWSONIC PJD6381 Short Throw DLP PROJECTOR |
|
 |
 |

 |
FOR CURRENT MODELS CLICK HERE |
Small budget-big presentations
The powerful PJD6381 120Hz 3D ready projector combines powerful features with RJ45 network capability. The projector offers an extreme short throw ratio – producing a 50" image at a distance of only 0.68 meter away. With its short throw lens, the PJD6381 saves space by allowing you to place it at the front of your table and still display large, crisp images. With 2700 lumens and a 3500:1 contrast ratio, your images look great in a classroom, boardroom or virtually any setting. All these features are packed into and attractive, compact design weighting only 2.68 Kg. Multiple preset presentation modes, an increased 40 degree digital vertical keystone correction and digital zoom ensure the best possible image regardless of location. Choose the PJD6381 for up to 6000 hours of lamp life*, low cost replacement lamps, filter-less design and a non- degrading DLP® light engine for the best warranty and low total cost of ownership.
Bright in virtually any setting with 2700 lumens
Packs 2700 ANSI lumens in just 2.68kg(5.9 lb), and with a high 2400:1 contrast ratio(typ.), your presentations are guaranteed to be vibrant even in the brightest office environment.
 |
3D Projection
The DLP-based PJD6211, PJD6221 PJD6241 PJD6251, and PJD6281 offer 120Hz fast refresh rate and are compatible with stereoscopic 3D technologies using Texas Instruments' DLP Link and Nvidia 3D-Vision solutions. These capabilities allow 3D pictures to be projected from a single beamer out-of-the-box without requiring any additional special polarizer, filter or screen.
(3D content, 3D glasses and appropriately equipped PC also required to display 3D images) |
 |
BrilliantColor™ technology
Latest BrilliantColor™ Technology delivers stunning all-digital clarity with life-like colour, sharp graphics and outstanding video. The sophisticated 6-segment colour wheel enriches the yellow colour performance that is key to accurate and vivid color reproduction.
Eco-mode extends lamp life 6000hrs
Extend the life of your lamp up to 6000 hours and reduce noise output. |
Network control through RJ-45
Remotely schedule, manage and monitor the projector and its lamp status. Use the unique integrated clock to perform commands even when the host PC is powered down.
Off to go
The direct off feature allows the busy presenter to simply unplug the projector and go without waiting for the usual cool down phase. This feature also protects lamp life from sudden power blackout.
Short-throw lens for large, stunning images in small spaces
The short throw lens enables large images to be projected from short distances in small rooms with short throw distances. A screen size of 1.8m is possible from just 1m.

|
Specifications
LCD |
|
Type |
|
0.55" Digital Micromirror Device (DLP™) |
|
|
Resolution |
|
1024x768, 1600x1200 compressed |
|
|
Lens |
|
Fixed len / Digital zoom / Manual focus |
|
Display |
|
Size |
|
30 - 300 inch (measured diagonally) |
|
|

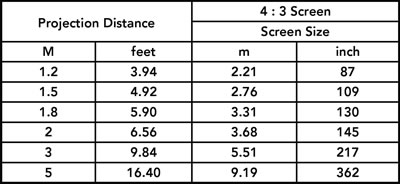

Throw Distance |
|
0.4 - 4.6m |
|
|
Lamp |
|
230watt (RLC-049) / 4000 hour rating / 6000hrs Eco mode |
|
|
Brightness |
|
2700 Lumens |
|
|
Contrast Ratio |
|
3500:1 |
|
|
Keystone Correction |
|
Vertical digital keystone correction:+/- 40 degrees |
|
|
Aspect Ratio |
|
4:3 (native) & 16:9 |
|
Audio |
|
Speakers |
|
5W x 2 |
|
Input Signal |
|
Video |
|
NTSC M(3.58MHz), 4.43MHz, PAL(B, D, G, H, I, M, N, 60), SD 480i and 576i(24fps, 25fps and 30fps), ED 480p and 576p(24fps, 25fps and 30fps), HD 720p, 1080i(24fps, 25pfs and 30fps) |
|
|
Sync |
|
H/V separated |
|
|
Frequency |
|
Fh: 31-100KHz; Fv: 50-120Hz |
|
Compatibility |
|
PC |
|
VGA TO UXGA |
|
|
Mac |
|
Up to 1152x864 (may require Mac Adapter) |
|
Connector |
|
RGB Input |
|
2 x 15-pin D-sub |
|
|
RGB Output |
|
1 x 15-pin D-sub |
|
|
Composite Video |
|
1 x RCA jack |
|
|
S-Video |
|
1 x 4-pin mini-DIN |
|
|
Audio |
|
Input: 2 x 3.5mm mini jack; Output: 1 x 3.5mm mini jack |
|
|
Control |
|
1 x RS-232(9 Pin D-sub) |
|
|
USB |
|
TYPE B(Firmware upgrade) |
|
|
Power |
|
12 V DC Connector |
|
Power |
|
Voltage |
|
90~240VAC(Auto Switching), 50 / 60Hz (universal) |
|
|
Consumption |
|
305W(Typical) / 1W(Stand by mode |
|
Controls |
|
Basic |
|
POWER, Keystone/ Arrow keys, Left/ BLANK, MENU/ EXIT, Right/ Panel key lock, AUTO, MODE/ ENTER, SOURCE |
|
|
OSD |
|
Picture: Brightness, contrast, color setting, keystone, aspect ratio, image, white intensity, gamma, 3D sync, 3D sync Invert.
Computer Image Picture: Brightness, contrast, color setting, keystone, aspect ratio, image, white intensity, gamma, 3D sync, 3D sync invert
Computer Image: Frequency, tracking, H position, V position.
Video Image: Saturation, sharpnes, tint.
Setting: Menu Position, projection, signal type, lamp hour, lamp hour reset, filter mode, filter hours, filter hours reset, power saving, auto source, ECO mode, high altitude, OSD timeout.
Advance: Blank screen, password word, screen capture, start up screen, text shot Digital zoom, DCR, close captions, brilliant color. |
|
Operating Conditions |
|
Temperature
Humidity |
|
0ºC - 40ºC (32ºF-104ºF)
10%-80% (non-condensing) |
|
Dimensions |
|
Physical |
|
280mm (W) x 114mm (H) x 217mm (D) |
|
Weight |
|
Net |
|
2.7 kgs |
|
Regulations |
|
|
|
CB, ROHS, WEEE, UL / cUL, FCC-B, ICES-003, IRAM(Argentina), NOMPSB, C-tick, CE, TUV, GOST-R, Hygienic, UKrSEPRO, CCC |
Supplied Accessories
|
Carry Bag |
Remote |
|
|
Optional Accessories |
|
|
|
Premium VGA Monitor Cable (15HDM/15HDM) |
Aus Wide Delivery: $15
|
Heavily shielded coaxial RGB cable giving you a crisper display at higher resolutions!
. |
Features UL Approved Cabling |
. |
Filters included on both ends cutting down on noise |
. |
Maintains stronger signals using a shielded cabling run. |
. |
Comes in 15pin D-sub format with Male to Male conectors |
|
|
|
|
|
Viewsonic WPG-350 Wireless Presentation Gateway |
Pick Up Avail.
|
- Upgrade any Projector To Wireless
- Fully compatible with both Windows and Mac® OS
- Supports resolutions up to 1024x768 and full-motion
video up to 1080p
- Presentation remote for total conference control
- Equipped with VGA pass-through for an extra display |
|
|
BenQ D-SUB VGA - HDTV Component Video Adapter Cable |
Insured Delivery: $13
Pick Up Avail.
|
- 15 pin D-sub to Component Cable.
- Connect to a HDTV Set Top box, DVD player, or games console
- Converts to Component inputs for a higher quality picture.
- Works in conjuction with Benq projectors. |
|
|
Universal flush ceiling mount (205) |
Insured Delivery: $16
Pick Up Avail.
|
• Swivel: 360°, Adjustable roll, pitch and yaw.
• Rigid Steel
construction.
• Durable powder-coated finish
(Black).
• Supports up to 10kgs.
• Mounting hardware included.
• User manual included.
• All bracket models come
standard with 4 x mounting
arms. |
|
Buy your new PJD6381 projector now, Contact Us today! |
|
|
|
