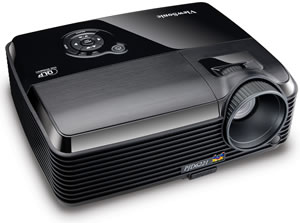

VIEWSONIC PJD6241 High Brightness Multipurpose DLP PROJECTOR |
|
 |
 |


|
FOR CURRENT MODELS CLICK HERE |
Digitally clear, dynamic presenations
The PJD6241 is the lightweight BrilliantColor™ projector that is a feature-rich performer delivering more vibrant colors and crisp, sharp images. With support for 120Hz frame rates, this high brightness projecter is ready for 3D business, education or gaming applications. Remotely manage and schedule your projector through the RJ-45 network control. Deliver a truly dynamic multimedia experience with the extensive input options, including two RGB inputs and one RGB output, and integrated 2x5-watt stereo speakers. Using less than 1 watt of power in standby mode, the PJD6241 is environmentally friendly as well. The conveniently placed lamp access and filter-free makes maintenance a breeze. Mount the PJD6241 on the ceiling for use in classrooms or meeting rooms.
 |
3D Projection
The DLP-based PJD6211, PJD6221 and PJD6241 offer 120Hz fast refresh rate and are compatible with stereoscopic 3D technologies using Texas Instruments' DLP Link and Nvidia 3D-Vision solutions. These capabilities allow 3D pictures to be projected from a single beamer out-of-the-box without requiring any additional special polarizer, filter or screen.
(3D content, 3D glasses and appropriately equipped PC also required to display 3D images) |
 |
BrilliantColor™ technology
Latest BrilliantColor™ Technology delivers stunning all-digital clarity with life-like colour, sharp graphics and outstanding video. The sophisticated 6-segment colour wheel enriches the yellow colour performance that is key to accurate and vivid color reproduction.
Closed captioning
Integrated closed captioning decoder for the hearing impaired. |
DLP™ Technology
Stunning all digital clarity delivers lifelike color, sharp graphics, and outstanding video.
Network control through RJ-45 LAN
Remotely schedule, manage and monitor the projector and its lamp status. Use the unique integrated clock to perform commands even when the host PC is powered down.
Eco-mode extends lamp life
Extend the life of your lamp up to 6000 hours** and reduce noise output.
Off-to-Go feature
The direct off feature allows the busy presenter to simply unplug the projector and go without waiting for the usual cool down phase. This feature also protects lamp life from sudden power blackout.
|
Specifications
LCD |
|
Type |
|
0.55" Digital Micromirror Device (DLP™) |
|
|
Resolution |
|
1024x768, 1280x1024 compressed |
|
|
Lens |
|
0.55" Digital Micromirror Device (DLP™) |
|
Display |
|
Size |
|
30 - 300 inch (measured diagonally) |
|
|
Throw Distance |
|
1.2 - 12.0m |
|
|
Lamp |
|
230watt (RLC-049) / 2500 hour rating (6000 hours on economic mode) |
|
|
Brightness |
|
3300 Lumens |
|
|
Contrast Ratio |
|
2800:1 |
|
|
Keystone Correction |
|
Vertical digital keystone correction: +/- 40 degrees |
|
|
Aspect Ratio |
|
4:3 (native) & 16:9 |
|
Audio |
|
Speakers |
|
5W×2 |
|
Input Signal |
|
Video |
|
NTSC M (3.58 MHz), 4.43MHz, PAL (B, D, G, H, I, M, N, 60), SD 480i and 576i (24fps, 25fps and 30fps), ED 480p and 576p (24fps, 25fps and 30fps), HD 720p, 1080i (24fps, 25pfs and 30fps) |
|
|
Sync |
|
|
|
|
Frequency |
|
Fh: 31-80KHz; Fv: 50-120Hz |
|
Compatibility |
|
PC |
|
VGA to SXGA |
|
|
Mac |
|
Up to 1024×768 (may require Mac Adapter) |
|
Connector |
|
RGB Input |
|
2 × 15-pin mini D-sub |
|
|
RGB Output |
|
1 × 15-pin mini D-sub |
|
|
Composite Video |
|
1 × RCA jack |
|
|
S-Video |
|
1 × 4-pin mini-DIN |
|
|
Audio |
|
1 × 3.5mm mini jack |
|
|
Control |
|
1×RS-232 (9 Pin D-sub) / RJ45 |
|
Power |
|
Voltage |
|
90~240VAC (Auto Switching), 50/60Hz (universal) |
|
|
Consumption |
|
250W (Typical) / <1W (Stand-by m |
|
Controls |
|
Basic |
|
POWER, Keystone/Arrow keys, Left/BLANK, MENU/EXIT, Right/Panel key |
|
|
OSD |
|
lock, AUTO, MODE/ENTER, SOURCE Picture: Brightness, Contrast, Color Setting, Keystone, Aspect Ratio, Image, White Intensity, Gamma, 3D Sync, 3D Sync Invert. Computer Image: Frequency, Tracking, H Position, V Position Video Image: Saturation, Sharpnes, Tint Setting: Manu Position, Projection, Signal Type, Lamp Hour, Lamp Hour Reset, Filter Mode, Filter Hours, Filter Hours Reset,Power Saving, Auto Source, ECO Mode, High Altitude, OSD Timeout Advance: Blank Screen, Password Word, Screen Capture, Start up Screen, Text Shot, Digital Zoom, DCR, Close Captions, Brilliant Color. |
|
Operating Conditions |
|
Temperature
Humidity |
|
0ºC-40ºC (32ºF-104ºF)
10% - 90% (non-condensing) |
|
Dimensions |
|
Physical |
|
280mm (W) x 114mm (H) x 218mm (D) |
|
Weight |
|
Net |
|
2.8 kgs |
Supplied Accessories
|
Carry Bag |
Remote |
|
|
Optional Accessories |
|
|
|
Premium VGA Monitor Cable (15HDM/15HDM) |
Aus Wide Delivery: $15
|
Heavily shielded coaxial RGB cable giving you a crisper display at higher resolutions!
. |
Features UL Approved Cabling |
. |
Filters included on both ends cutting down on noise |
. |
Maintains stronger signals using a shielded cabling run. |
. |
Comes in 15pin D-sub format with Male to Male conectors |
|
|
|
|
|
Viewsonic WPG-350 Wireless Presentation Gateway |
Pick Up Avail.
|
- Upgrade any Projector To Wireless
- Fully compatible with both Windows and Mac® OS
- Supports resolutions up to 1024x768 and full-motion
video up to 1080p
- Presentation remote for total conference control
- Equipped with VGA pass-through for an extra display |
|
|
BenQ D-SUB VGA - HDTV Component Video Adapter Cable |
Insured Delivery: $13
Pick Up Avail.
|
- 15 pin D-sub to Component Cable.
- Connect to a HDTV Set Top box, DVD player, or games console
- Converts to Component inputs for a higher quality picture.
- Works in conjuction with Benq projectors. |
|
|
Universal flush ceiling mount (205) |
Insured Delivery: $16
Pick Up Avail.
|
• Swivel: 360°, Adjustable roll, pitch and yaw.
• Rigid Steel
construction.
• Durable powder-coated finish
(Black).
• Supports up to 10kgs.
• Mounting hardware included.
• User manual included.
• All bracket models come
standard with 4 x mounting
arms. |
|
Buy your new PJD6241 projector now, Contact Us today! |
|
|
|
