VIEWSONIC PJD5351 Short Throw DLP PROJECTOR |
|
 |
 |

 |
FOR CURRENT MODELS CLICK HERE |
Small budget - big presentations
The powerful PJD5351 sets the stage for a new generation of versatile projectors equipped with BrilliantColor™ technology with short throw ratio – producing a 60" image at a distance of only 1.1 meter away. With its short throw lens, the PJD5351 saves space by allowing you to place it at the front of your table and still display large, crisp images. Weighing in at just 2.5kg with 2500 ANSI lumens and a 2400:1 contrast ratio (with DCR), it's easy to give multimedia lessons in the classroom or dynamic presentations in the boardroom. Multiple preset presentation modes, an increased 40 degree digital vertical keystone correction and digital zoom ensure the best possible image regardless of location. With up to 4000 hours of lamp life*, low cost replacement lamps, filter-less design and a non-degrading DLP® light engine, the PJD5351 is one of the lowest total cost of ownership projectors in the industry.
Short-throw lens for large, stunning images in small spaces
The short throw lens enables large images to be projected from short distances in small rooms with short throw distances. A screen size of 1.5m is possible from just 1.1m.

 |
BrilliantColor™ technology
Latest BrilliantColor™ Technology delivers stunning all-digital clarity with life-like colour, sharp graphics and outstanding video. The sophisticated 6-segment colour wheel enriches the yellow colour performance that is key to accurate and vivid color reproduction.
Eco-mode extends lamp life 4000hrs
Extend the life of your lamp up to 4000 hours and reduce noise output. |
Bright in virtually any setting
Packs 2,500 ANSI lumens in just 2.5kg, and with a high 2400:1 contrast ratio (with DCR), your presentations are guaranteed to be vibrant even in the brightest office environment.
Eco-mode extends lamp life
Extend the life of your lamp up to 4000 hours* and reduce noise output.
Off to Go feature
The direct off feature allows the busy presenter to simply unplug the projector and go without waiting for the usual cool down phase. This feature also protects the lamp from sudden power blackouts.
|
Specifications
LCD |
|
Type |
|
0.55" Digital Micromirror Device (DLP™) |
|
|
Resolution |
|
1024x768, 1280x1024 compressed |
|
|
Lens |
|
1.2x Fixed zoom / manual optical focus |
|
Display |
|
Size |
|
40 - 180 inch (measured diagonally) |
|
|
Throw Distance |
|
0.7 - 4.6m |
|
|
Lamp |
|
189 watt / 3000 hour rating |
|
|
Brightness |
|
2500 Lumens |
|
|
Contrast Ratio |
|
2400:1 (DCR) |
|
|
Keystone Correction |
|
Vertical digital keystone correction: +/- 40 degrees |
|
|
Aspect Ratio |
|
4:3 (native) & 16:9 |
|
Audio |
|
Speakers |
|
1×5W |
|
|
Amplifier |
|
1W at THD<10% |
|
Input Signal |
|
Video |
|
NTSC M (3.58 MHz), 4.43MHz, PAL (B, D, G, H, I, M, N, 60), SD 480i and 576i (24fps, 25fps and 30fps), ED 480p and 576p (24fps, 25fps and 30fps), HD 720p, 1080i (24fps, 25pfs and 30fps) |
|
|
Sync |
|
H/V separated |
|
|
Frequency |
|
Fh: 30-70KHz; Fv: 50-87Hz |
|
Compatibility |
|
PC |
|
VGA to SXGA |
|
|
Mac |
|
Up to 832×624 (may require Mac Adapter) |
|

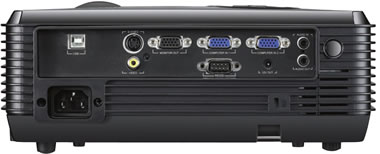

Connector |
|
RGB Input |
|
2 × 15-pin mini D-sub |
|
|
RGB Output |
|
1 × 15-pin mini D-sub |
|
|
Composite Video |
|
1 × RCA jack |
|
|
S-Video |
|
1 × 4-pin mini-DIN |
|
|
Component Video |
|
2 × 15-in mini -D-Sub (sharer with RGB) |
|
|
Audio |
|
Input: 1 × 3.5mm mini jack; Output: 1 × 3.5mm mini jack |
|
|
Control |
|
1×RS-232 (8 Pin Mini-Din) |
|
Power |
|
Voltage |
|
90~240VAC (Auto Switching), 50/60Hz (universal) |
|
|
Consumption |
|
242W (Typical) / <5W (Stand-by m |
|
Controls |
|
Basic |
|
Standby/On, input, menu |
|
|
OSD |
|
Display: Screen color, aspect ratio, keystone, position, phase, H. size, digital zoom
Picture: Preset mode: brightest, standard (Video) ,daylight, ViewMatch (PC), cinema, user 1/user 2, brightness, contrast, color, tint, sharpness, BrilliantColor™, color temp., save settings)
Source: Quick auto search
System setting (Basic): Language , projector position, auto power off, blank timer, panel key lock, timer controller, splash screen
System setting (Advanced): Quick cooling, high altitude mode, DCR, active VGA out, audio settings, menu settings, closed caption, lamp settings, security setting, reset all settings
Information: Current system status (source, preset mode, resolution, color system, equivalent lamp hour) |
|
Operating Conditions |
|
Temperature
Humidity |
|
0ºC-40ºC (32ºF-104ºF)
10% - 90% (non-condensing) |
|
Dimensions |
|
Physical |
|
264mm (W) x 96.4mm (H) x 225mm (D) |
|
Weight |
|
Net |
|
2.5 kgs |
|
Regulations |
|
|
|
CB, ROHS, WEEE, UL/cUL, FCC-B, ICES-003, IRAM (Argentina), NOMPSB, C-tick, EK, CE, TUV/GS, GOST-R, Hygienic, SASO UKrSEPRO, CCC |
Supplied Accessories
|
Carry Bag |
Remote |
|
|
|
