Panasonic PT-EZ590E Large Venue Full HD Projector
|
|
|
 |
|
FOR THE CURRENT RANGE OF PANASONIC PROJECTORS CLICK HERE
|
| Quick Facts: |
|
| Panasonic PT-EZ590E Throw Distance Chart (Examples for common Sizes) - Standard Lens (1.22-2.26:1) |
| Image Size |
Installation Distance
(Approx. To Lens) |
| 110" (16:10)
2370x1480mm |
From 2.9m to 5.4m |
| 130" (16:10)
2800x1750mm |
From 3.4m to 6.3m |
| 180" (16:10)
3880x2420mm |
From 4.7m to 8.8m |
|
SPECIFICATIONS
Native Resolution: WUXGA 1920 x 1200 16:10
Brightness: 5400 ANSI Lumens
Maximum Contrast: 10,000:1
Weight: 10.6kg
Fan Noise: 35 / 29db (eco)
Warranty: 3 Yrs (4K hrs Optical Block)
Lamp Warranty: 12months/1000hrs
Lamp Life Up To: 5,000hrs |
FEATURES
- 1.8x Powered Zoom
- 2x HDMI Connection
- Horizontal & Vertical Lens Shift
- Horizontal & Vertical Keystone
- Digital Link Compatible
- Optional Wireless
- Lens Options
|
 People choose Panasonic because our products are highly dependable and meet the needs of professionals and
educators. The versatile PT-EZ590 Series, for example, serves up immersive pictures in almost any situation,
plug-and-play, with uncommonly low running costs. Like you, Panasonic projectors are working hard to deliver
results of the highest quality.
 |
 |
 |
| More than 30 years of hard-won experience stands behind every Panasonic projector we make. Innovative technology guarantees uncommonly bright and vivid pictures even in well-lit rooms. |
Long-reach single-cable AV control, powered lens shift/zoom/focus, and wide compatibility with existing infrastructure simplify and streamline setup for permanent or portable installations. |
From dust-resistant construction to long-life UHM lamp, the PT-EZ590 Series is engineered for trouble-free operation with very low maintenance, saving you time and money. |
Compact and Stylish Projectors Deliver Up to 6,200 lm* Brightness
With up to 6,200 lm* of brightness, the PT-EZ590 Series produces brilliant images even in high levels of artificial light. Text is clear and legible while graphics and video are reproduced with natural vibrancy.
* PT-EX620/EX620L features 6,200 lm, PT-EW650/EW650L 5,800 lm,
PT-EZ590/EZ590L 5,400 lm, PT-EX520/EX520L 5,300 lm, and
PT-EW550/EW550L 5,000 lm of brightness. |
 |
Dynamic Contrast of 10,000:1* with Iris
High dynamic contrast of 10,000:1* is enabled by an iris mechanism, so that whites are brighter and blacks deeper with minimal loss of detail in dark images. The result is crisp and comfortable viewing.
* PT-EW550/EW550L and PT-EX520/EX520L feature 2,000:1 contrast.

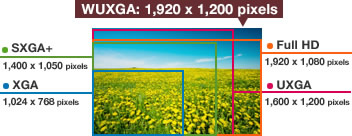

High WUXGA* Resolution for Lush Detail
With up to WUXGA* (1,920 x 1,200) resolution, the PT-EZ590 Series is capable of displaying Full HD video. The extra detail and depth engages viewers for a more compelling presentation.
* PT-EZ590/EZ590L features WUXGA, PT-EW650/EW650L/EW550/EW550L
WXGA, and PT-EX620/EX620L/EX520/EX520L XGA native resolution. |
 |
Daylight View Basic Ensures Vivid Images in Bright Rooms
Panasonic’s original Daylight View Basic uses a built-in sensor to measure ambient light and calibrates image-projection to suit, optimizing brightness and halftone color and sharpening details for easy-to-see pictures in well-lit environments.

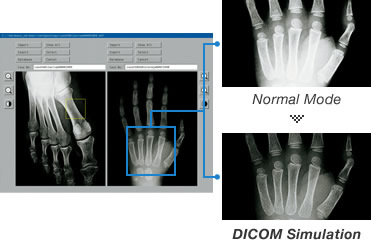

DICOM Simulation Mode* for Medical Presentations
This imaging mode is similar to the DICOM Part 14 medical imaging standard. It lends a film-like quality to X-ray images, making the PT-EZ590 Series suitable for training presentations related to medicine*.
* This product is not a medical instrument. Do not use for actual medical diagnosis. |
 |

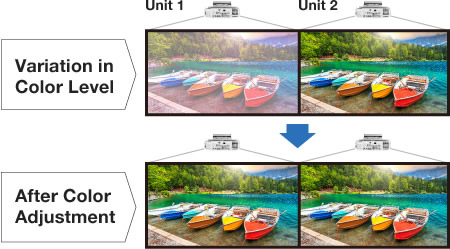

Colour Adjustment for Multi-screen Projection
This function corrects subtle variations in the color reproduction range of individual units set up for multi-screen projection, particularly in side-by-side configuration.
|
 |
Extended Lamp Replacement Cycle
PT-EZ590 Series projectors feature a lamp replacement cycle of up to 5,000 hours*.
This helps to lower operating costs, reduce labor, and minimize wastage by extending the operation period between lamp maintenance.
* With lamp power set to ECO. Up to 4,000 hours with lamp power set to NORMAL. |
 |

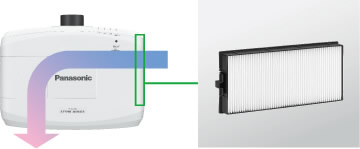

Dust-Resistant Cabinet and Extra-Long-Life Eco Filter
If dust gets inside the projector’s optical unit, brightness suffers. The PT-EZ590 Series protects against dust intrusion with a one-way airflow design and improved sealing for the lens block, air intake duct, and Eco Filter.
This electrostatic Micro Cut Filter captures the tiniest dust particles and requires no maintenance for 15,000 hours*1.
It also can be washed and reused*2. These dust-resistant projectors are designed to maintain brightness for longer in high-traffic environments while reducing servicing costs.
*1 Period varies depending on usage environment.
*2 Follow user manual procedures when servicing filter. Replacement recommended
after washing and reusing filter twice. If not sufficiently clean after washing, replacement is advised. |
 |

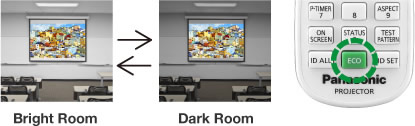

ECO Management Slashes Power Consumption
A variety of Eco Management functions are accessible via a button on the remote controller.
These include brightness optimization for ambient lighting conditions and lamp power reduction when no input signal is detected. |
 |
Easy-Access Lamp and Filter
To reduce hassle, the filter can be replaced via the side and the lamp from the top of the projector. There’s no need to remove the unit from its ceiling mount for periodic maintenance.

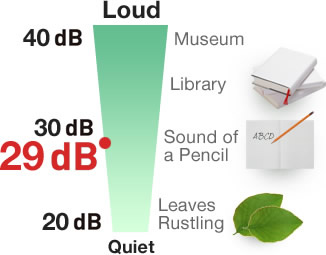

Quiet Operation in ECO Mode
The quiet design reduces operating noise to just 29 dB*, with the sound of the cooling fan hardly noticeable. This helps to keep the audience focused on your presentation.
* 35 dB with lamp power set to NORMAL |
 |

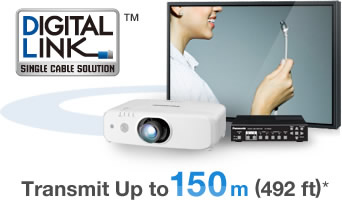

Installation Simplified with DIGITAL LINK
PT-EZ590/EZ590L, PT-EW650/EW650L, and
PT-EX620/EX620L feature a DIGITAL LINK connection that supports transmission of Full HD video, audio, and control signals through a single CAT 5e or higher STP cable for distances of up to 150 m (492 ft)*. An optional DIGITAL LINK Switcher or Digital Interface Box allows source devices to be connected and signals routed to the projector via one cable, saving installation cost and simplifying the AV system.
* 150 m (492 ft) transmission available in Long Reach Mode with optional
ET-YFB200G DIGITAL LINK Switcher only. Signal resolution is limited to
1080/60p (dot-clock frequency 148.5 MHz) and below. |
 |
Powered Lens Shift, Zoom, and Focus via Remote Control
The wide adjustment range of the powered horizontal/vertical lens-shift function assures convenience and versatility during installation. Zoom and focus are also easily adjusted via remote control.
Project onto Curved Surface
Horizontal, Vertical, and Corner Keystone Correction adjusts the image shape for clear visibility when projecting off-axis or from an unusual angle. Curved Screen Correction allows for the projection of natural, distortion-free images onto curved or cylindrical surfaces.
Lens-Centered Design
A symmetrical lens-centered design reduces installation complexity and makes these projectors easier to adapt to a wider range of installation sites.
Project Wirelessly with Optional Module
The optional ET-WML100 wireless USB module enables projection of a variety of media via Windows® PCs, iOS devices, or Android™ devices loaded with an appropriate app. Whether projecting from desk or ceiling, there’s no need for cables—and it’s also possible to display content from more than one device at a time in Multi-Live Mode. |
 |
Presenter Light Ver. 1.0 for Windows® PCs
- Stills, video, documents (including PDF and PowerPoint® files), and other media displayed on the PC screen can be wirelessly projected
- Images from up to four PCs can be projected simultaneously
VueMagic™ Pro* for iOS/Android™ Devices
- Selected still images and document formats (including PDF files) are supported
- Features Live Camera Mode and Annotate Mode
- Images from up to four devices can be projected simultaneously
* VueMagic™ Pro is a product of Pixelworks, Inc. For more information, please visit
vuemagic.pixelworks.com |
 |
Range of Optional Lenses
Choose from a selection of optional zoom lenses for your system. The additional lenses make it easier to adapt the projector to the installation site. Lenses attach and detach with one-touch ease.
Integrates into Existing AV Infrastructure
With support for PJLink™ Class 1, Crestron Connected, AMX, and RS-232C over wired LAN, any legacy unit can be swapped out for a
PT-EZ590 Series projector without disrupting existing control and management infrastructure. Emulation via RS-232C allows original settings to be preserved. In addition, Multi Monitoring and Control Software is available for monitoring and controlling multiple Panasonic projectors from a single PC.
Mechanical Lens Shutter
A mechanical lens shutter prevents light leakage when the projector is on standby or temporarily not in use, such as periods during meetings.
Note: PT-EW550/EW550L and PT-EX520/EX520L feature an AV Mute function instead of a mechanical lens shutter.
Multi Monitoring & Control Software
This software lets you control and monitor multiple projectors/displays at the same time over wired LAN. If a problem occurs, an alert is sent to the monitoring/controlling PC. Terminal panel is LED illuminated and control panel buttons backlit for easy operation in the dark.
Generous Connectivity
Connect any source device to the PT-EZ590 Series via its array of terminals including HDMI and DIGITAL LINK.
Other Valuable Features
- Power-saving Eco Standby Mode draws just 0.3 W*
- Direct Power Off enables safe projector shutdown via breaker switch
- Anti-theft measures include security bar, password protection, and personalized startup logo
- 10 W speaker
- Closed Captioning (NTSC, 480i YCBCR)
- Schedule Function
* When the Standby Mode is set to ECO, network functions such as Power On via LAN will not operate. Also, only certain commands can be received for external control using the serial terminal.
|
Specifications
| Model |
PT-EZ590 / EZ590L |
PT-EW650 / EW650L |
PT-EW550 / EW550L |
| Power supply |
100-240 V AC, 50/60 Hz |
| Power consumption |
484 W,
(444 W with
LAMP POWER set to NORMAL,
325 W with
LAMP POWER set to ECO),
(0.5 W when
STANDBY MODE set to ECO*1,
12 W when
STANDBY MODE set to NORMAL) |
461 W,
(424 W with
LAMP POWER set to NORMAL,
305 W with
LAMP POWER set to ECO),
(0.5 W when
STANDBY MODE set to ECO*1,
12 W when
STANDBY MODE set to NORMAL) |
461 W,
(424 W with
LAMP POWER set to off,
305 W with
LAMP POWER set to ECO),
(0.5 W when
STANDBY MODE set to ECO*1,
8 W when
STANDBY MODE set to NORMAL) |
| LCD panel |
Panel size |
16.3 mm (0.64 in) diagonal (16:10 aspect ratio) |
| Display method |
Transparent LCD panel (x 3, R/G/B) |
| Drive method |
Active matrix |
| Pixels |
2,304,000
(1,920 x 1,200) x 3,
total of 6,912,000 pixels |
1,024,000
(1,280 x 800) x 3,
total of 3,072,000 pixels |
| Lens |
PT-EZ590/
EW650/
EW550 |
1.8x powered zoom (throw ratio 1.22-2.26:1), powered focus F 1.6-2.2, f 17.1-31.7 mm |
PT-EZ590L/
EW650L/
EW550L |
Optional powered zoom/focus lenses and fixed-focus lens |
| Lamp |
320 W UHM lamp x 1,
lamp replacement cycle (lamp power: NORMAL/ECO): 4,000 hours/5,000 hours*2 |
| Screen size (diagonal) |
1.03-10.57 m (40-400 in), 16:10 aspect ratio |
| Brightness*3 |
5,400 lm
(lamp power: NORMAL,
Dynamic Mode, Iris: OFF,
Daylight View: OFF,
Auto Power Save: OFF) |
5,800 lm
(lamp power: NORMAL,
Dynamic Mode, Iris: OFF,
Daylight View: OFF,
Auto Power Save: OFF) |
5,000 lm
(lamp power: NORMAL,
Dynamic Mode, Iris: OFF,
Daylight View: OFF,
Auto Power Save: OFF) |
| Center-to-corner uniformity*3 |
90 % |
| Contrast*3 |
10,000:1
(lamp power: NORMAL, Dynamic Mode, Iris: ON,
Daylight View: OFF, Auto Power Save: OFF) |
2,000:1
(lamp power: NORMAL,
Dynamic Mode, Iris: ON,
Daylight View: OFF,
Auto Power Save: OFF) |
| Resolution |
1,920 x 1,200 pixels |
1,280 x 800 pixels*4 |
Scanning
frequency |
HDMI/
DIGITAL LINK |
fH: 15-90 kHz, fV: 24-100 Hz, Dot clock: 25-162 MHz, compatible with HDCP,
DIGITAL LINK not included on PT-EW550/EW550L. |
| RGB |
fH: 15-90 kHz, fV: 24-100 Hz, Dot clock: up to 162 MHz |
| YPBPR (YCBCR) |
fH: 15.73 kHz, fV: 59.94 Hz [480i (525i)]
fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i]
fH: 28.13 kHz, fV: 25 Hz [1080 (1125)/25p]
fH: 27.00 kHz, fV: 48 Hz [1080 (1125)/24sF]
fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p]
fH: 31.47 kHz, fV: 59.94 Hz [480p (525p)]
fH: 31.25 kHz, fV: 50 Hz [576p (625p)]
fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p]
fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p]
fH: 33.75 kHz, fV: 30 Hz [1080 (1125)/30p]
fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p] |
| Video/YC |
fH: 15.73 kHz, fV: 59.94 Hz [NTSC/NTSC4.43/PAL-M/PAL60],
fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM] |
| Optical axis shift |
Vertical |
±60 % from center of screen (powered) |
| horizontal |
±30 % from center of screen (powered) |
| Keystone correction range*5 |
Vertical ±25°, horizontal ±30° |
Vertical ±35°, horizontal ±35° |
| Installation |
Ceiling/floor, front/rear |
| Built-in speaker |
4.0 cm round shape x 1, output power 10.0 W (monaural) |
| Terminals |
HDMI IN |
HDMI 19-pin x 2 (Deep Color, compatible with HDCP),
audio signal: Linear PCM (Sampling frequency: 48 kHz/44.1 kHz/32 kHz) |
| RGB 1 IN |
BNC x 5 (RGB or YPBPR/YCBCR x 1) shared with VIDEO IN (S-video/composite video) |
| RGB 2 IN |
D-Sub HD 15-pin (female) x 1 |
| VIDEO IN |
Pin jack x 1 (composite video) |
| MONITOR OUT |
D-sub HD 15-pin (female) x 1 (RGB x 1) (compatible with RGB or YPBPR/YCBCR) |
| AUDIO IN |
Pin jack x 2 (L/R x 1), M3 x 2 (L-R x 2) |
| AUDIO OUT |
M3 x 1 (L-R x 1) for output (variable) |
| SERIAL IN |
D-sub 9-pin (female) x 1 for external control (RS-232C compliant) |
| REMOTE 1 IN |
D-sub 9-pin (female) x 1 for external control (parallel) |
| REMOTE 2 IN |
M3 x 1 for wired remote control |
| LAN |
RJ45 x 1 (for network connection, 10Base-T, 100Base-TX, compliant with PJLink™) |
DIGITAL LINK /
LAN |
RJ-45 x 1 (for network and DIGITAL LINK
(video/audio/network/serial control) connection,
100Base-TX, compliant with PJLink™,
HDCP compatible, Deep Color compatible) |
- |
| USB-A |
USB terminal for optional Wireless Module (ET-WML100) x 1,
DC output terminal for power supply (DC 5 V, up to 900 mA) x 1 |
| Operation noise*3 |
35 dB (lamp power: NORMAL), 29 dB (lamp power: ECO) |
| Filter |
x 1, recommended replacement cycle: 15,000 hours*6 |
| Mechanical shutter |
Yes |
- (AV mute) |
| Cabinet materials |
Molded plastic (PC + ABS) |
Dimensions
(W x H x D) |
PT-EZ590/
EW650/
EW550 |
498 x 145*7 x 398.3 mm (19-19/32 x 5-11/16*7 x 15-11/16 in) (with supplied lens) |
PT-EZ590L/
EW650L/
EW550L |
498 x 145*7 x 358 mm (19-19/32 x 5-11/16*7 x 14-3/32 in) (with supplied lens) |
| Weight*8 |
PT-EZ590/
EW650/
EW550 |
Approximately 8.4 kg (18.5 lbs) (with supplied lens) |
PT-EZ590L/
EW650L/
EW550L |
Approximately 7.7 kg (17.0 lbs) (without lens) |
| Operating environment |
Operating temperature: 0-45 °C (32-113 °F)*9,
operating humidity: 20-80 % (no condensation) |
| Supplied accessories |
Power cord (including power cord holder) x 1*10,
wireless remote control unit x1, batteries for remote control (AAA/R03/LR03 type) x 2,
software CD-ROM (Logo Transfer Software, Multi Monitoring & Control Software) x 1 |
|
|
|
| Optional Accessories |
|
|
Extended Warranty For Projectors
|
All Programs come with:
- GM Multimedia Extended Warranty ID Number (must be retained)
- GM Multimedia claim instructions and terms & conditions
- Does not cover consumable items or accessories such as projector globes or remotes |
[More Information] |
|
|
|
|
|
|
|
Panasonic Digital Link Adapter ET-YFB200G |
|
|
By combining the ET-YFB200G with a DIGITAL LINK-ready projector, video, audio and control signals can be transmitted over a single cable. This simplifies cabling and system upgrades, making it ideal for ceiling-mounted and other permanent installations.
Simple and Cost-Effective Multi-Output Switching
• 2 x DIGITAL LINK (based on HDBaseT™ technology) terminals output uncompressed HD digital video, audio, and command signals to two projectors/displays
• Long-distance DIGITAL LINK transmission of up to 150 m (492 ft)* through a single CAT 5e (STP) or higher cable
• Daisy-chain (cascade) connection capability for distribution to multiple display devices
• Abundant input terminals including HDMI inputs (x 2), RGB input, and audio inputs (x 3)
• Separate audio output facilitates audio playback when projector is powered down
|
|
|
Premium HDMI Digital AV Cable - For 4K, 1080P & 3D Projectors |
1 Metres |
$19.95 |
|
2 Metres |
$29.95 |
|
3 Metres |
$39.95 |
|
5 Metres |
$49.95
|
|
10 Metres |
$79.95 |
|
15 Metres |
$99.95 |
|
20 Metres |
$149.95 |
|
|
- High Speed HDMI CAT2 cable
- Type A to Type A Male-to-Male High Speed cable with Ethernet Channel
- Designed to support the features of HDMI V2.0 and previous versions
- Features include 4K (50/60Hz) Video, 3D, Deep Colour, Audio Return Channel
- High Speed HDMI performance with a dedicated Ethernet channel.
- Shieled cable construction for optimum RF & EMI Protection
- Gold Plated terminals
- 12 Month Warranty
*We recommend keeping the length short for 4K under 10m - especially for 60hz
|
|
|
Premium VGA Monitor Cable |
5 Metres |
$29.95
|
|
10 Metres |
$59.95 |
|
15 Metres |
$69.95 |
|
20 Metres |
$89.95 |
|
30 Metres |
$110.95 |
|
|
Heavily shielded coaxial RGB cable giving you a crisper display at higher resolutions!
- Features UL Approved Cabling
- Filters included on both ends cutting down on noise
- Maintains stronger signals using a shielded cabling run.
- Comes in 15pin D-sub format with Male to Male conectors
|
 |
