| Optoma HD70 DLP Home Theatre Projector |
|
 |
|
 |
FOR CURRENT OPTOMA PROJECTORS CLICK HERE |
|
The HD70 features Texas Instruments’ latest 720P High Definition DLP chipset, a 7-segment color wheel 10-bit per channel color processing, great connectivity and is defined with a fabulous sleek elegant design. The purposely designed new 7-segment color wheel with BrilliantColor and TrueVivid color enhancement technologies simultaneously enables higher brightness and astonishing deep saturated color. 1000 ANSI lumens brightness and a staggering 4000:1 contrast ratio make it ideal for a wide range of home theater applications.
- Advanced Texas Instruments 720 DarkChip2 DMD

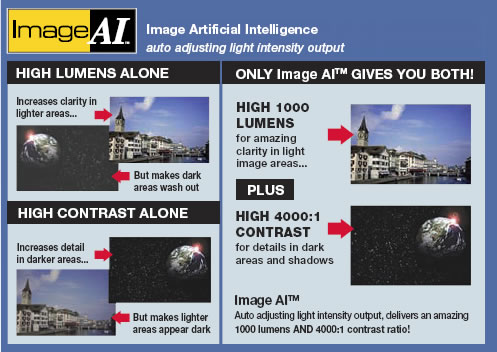

- High contrast ratio 4000:1 (with image AI)
- True resolution support : 1280 x720 (16 x 9) native HDTV 720P compatible
- 7 segment( RGBWRGB )color wheel with 4X speed BrilliantColorTM Image technology
- Build-in multi-Gamma and color adjustment setting for each signal (By True Vivid image technology)
- Integrated image manipulation including ：Format ,Overscan,Edge mask, Digital image shift. H & V
- High performance image Scalar : TI DPP3020(10 Bit Image processing )
- HDMI input support HDCP function ,Component ,VGA(support component, too)
- Ultra low noise level only 28dB
- Back light & user friendly(direct key) IR remote control
- Light and handy Body design ,easy for setup in desktop or ceiling mount
- Useful 1.2 X short throw lens
10-bit image processing
Optoma's TI DPP3020 High performance image scalar allows the HD70 to produce one of the highest levels of the best colour reproduction possible. This 10 Bit Image processing allows the allows the HD70 to display 1,070,000,000 colour's which means more shades more detail and a true colour image.
7 segment Colour Wheel
As with all DLP projectors the HD70 relies on a colour wheel to produce the colour's in the image. Unlike many DLP models the HD 70 features an amazing 7 segment colour wheel with a 4x speed. This allows for a smoother image, better colour reproduction, and, with the faster rotation and more segments, eliminates rainbow effects that plagued some early DLP models.
Handy Backlit remote
As most home theatre is done in a darkened room, Optoma has included a handy backlit remote so you can control the projector even with the lights off.
Excellent Connectivity
The HD70 allows you to connect to almost anything, or several devices at once. It has the new HDMI connection, Component, Composite, S-video, and a 15 pin D-sub that can be used for connection to a PC or via an adaptor to SCART or a secondary component. Industry Leading Warranty
Many projectors come with a 2 year warranty, some even with a 1 year warranty, and some only warrant their lamp for the first few months. Optoma has gone that one step further with an industry leading 3 year warranty on the projector plus a lamp warranty 4 times longer than most other projectors (1 year/1000 on lamp). |
|
|
OUR SAY
Optoma has made yet another strong performer with the HD70. This little powerhouse offers a high definition resolution of 1280 x 720 together with a massive 4000:1 contrast. The High definition resolution will give you great detail while the high contrast ratio provides good reproduction of dark shades and strong blacks.
The HD70 also features an amazing 7 segment colour wheel running at 4X speed ,ensuring awesome colour reproduction and eliminating the chance of seeing the rainbow effect visible in older model DLP projectors.
With all the inputs you'll ever need, such as the 15pin D-Sub, Composite RCA, S-video, the new HDMI, and Component, |
the DV10 is very easy to connect to your dvd player or other theatre products. Additionally Optoma has included a 12v relay so you can connect certain motorised screens to the projector that can automatically lower or raise when the projector is turned on/off.
Finally here's some images strait from the HD70 to leave you drooling courtesy of projectorcentral.com
|
Specifications
| Display |
0.62 inch / 12 degree 720P DarkChip2 DMD from Texas Instruments. |
| Resolution |
1280 x 720 |
| Max Resolution |
1400x1050 |
| Brightness |
1000 |
| Contrast Ratio |
4000:1 (with Image AI on) |
| Lamp Type |
200-watt User Replaceable lamp |
| Lamp Life |
3000 hours in normal mode/2000 hours in Brite mode |
| Uniformlty |
90% |
| Noise Level |
28dB in Standard mode / 30dB in bright mode |
| Weight (kg) |
2.5 |
| Keystone |
Vertical & Horizontal ±15° |
| Speaker |
|
| Power Supply |
Universal AC 100 - 240 volts, 50/ 60Hz |
| Power Consumption |
260W (Operating) , < 13W(Stand by) |
| Dimension |
265 x 256 x 108 (mm) |
| Aspect Ratio |
Native on 16:9 (HDTV 720P 1280 x 720 ) widescreen, |
| Projection Lens |
f=22.25 - 26.69 mm, F/2.5~2.8 ;Short throw Lens |
| Zoom |
1.2 X manual zoom / focus lens |
| Throw Ratio |
1.58 ~1.9:1 |
| Throw Distance |
1.5m ~ 11m |
| Image Size |
36 to 315 inches |
| Num Color |
16.7 million colors |
| V Sync Range |
|
| H Sync Range |
|
| Computer Compatibility |
Computer capability up to SXGA+ |
| Video Compatibility |
HDTV (480p, 576p, 720p, 1080i), 480i,576i,Full NTSC, NTSC4.43, PAL, PAL-M, PAL-N, SECAM,HDMI(480i/p,576i/p,720p,1080i/p), |
| Input |
HDMI x 1 ,VGA x 1(Analog RGB ,SCART, Component), Component YCbCr/ YPbPr (RCA ) x 1, S-Video x 1,Composite Video x 1, USB (service port ) x 1, IR receivers x 1 (front) ,IR module port x 1(back) |
| Output |
+12V Relay output x 1 |
| Remote Control |
|
| Special Function |
Up/Down, Left/Right digital Image shift |
Supplied Accessories
|
Backlit Remote |
|
| Optional Accessories |
|
|
| |
Extended Warranty
|
Program Coverage:
- LCD & DMD pixels are covered only as per original manufacturer's pixel terms & conditions
- Does not cover Cords, Power Adapter
- Does not cover consumable items such as projector globes |
| + 2 Year On-Site Extended Warranty ( 5 Year Total) |
$179 |
| + 1 Year On-Site Extended Warranty |
$110 |
|
|
