Optoma HD23 DLP Full HD Home Theatre Projector



HD23


3 Year Warranty
Home Theatre


Full HD


DISCONTINUED

FOR CURRENT OPTOMA PROJECTORS CLICK HERE



Full HD 1080p
With the latest Texas Instruments 0.65" Full HD 1080p DMD chipset makes home theater a reality. A native resolution of 1080p means over 2 million individual pixels at your command. That is more than twice as much detail as a 720p projector.

Full HD HD23

Rich color processing technology
10-bit DNX Rich Color Processing technology increases the number of colors that can be displayed from 16 million to over 1 billion by offering 4 times the color information for each pixel.

10 Bit Colour

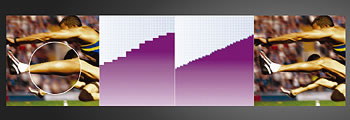

LAI technology
Low angle edges are inherent in all pixelated displays. Primitive algorithms simply "paint" images by crudly placing pixels.

LAI HD23

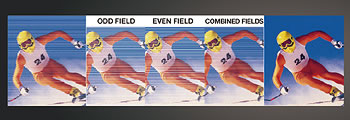

Deinterlacing
Still images and moving images need to be processed differently to avoid combing effect.

Deinterlacing HD23

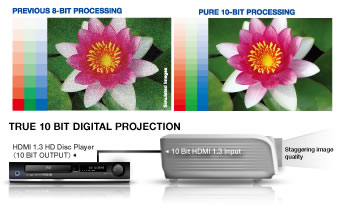

True 10-bit digital processing
The most advanced 10-bit HDMI technology adds high definition color to high definition images producing stunningly natural, vibrant color.

10bit HD23

Industry leading ANSI contrast for incredible images
ANSI Contrast is a way of measuring the true "real world" contrast performance you can expect from a projector. With an ANSI ratio significantly higher than many LCD, LCOS, or SXRD based projectors, the HD23 is the only choice for Home Cinema purists that expect the ultimate image fedelity in their home.

Ansi Contrast HD23

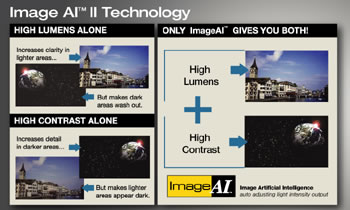

Auto Reactive Iris & Optoma exclusive ImageAI™ II technology
The Auto Iris works to maximize image contrast - ensuring the deepest blacks and brightest whites.

Image AI HD23

Optoma exclusive TrueVivid™ technology
With TrueVivid™ technology, the picture quality is enhanced for veritable video fidelity, including better depth and deeper 3D look to any image.

Incorporated the latest PW392 data processor from Pixelworks
The PW392 supports 9-bit image processing producing clean and clear pictures. Also this chip carries motion adaptive de-interlacing and reverse 3:2 and 2:2 pull down functions that results in smoother images.

Wide angle zoom lens
The lens is able to deliver sharp and accurate images at a short distance which is convenient for users living in tight space.

Complete I/O support

HD23 Rear




HD83 3D Projector




Specifications

Resolution 1080p (1920x1080)
Contrast Ratio 5000:1
Brightness (typical) 2500 ANSI Lumens
Projection Lens F# 2.55~2.87, f = 22.41~26.82 mm, 1.2X manual zoom / focus lens.
Image shift Up/Down, Left/Right digital Image shift(L/R only support in 4:3 & Native format)
Projection Image Size 38 to 300 inches
Projection Distance 1.5m ~ 9.96m
Throw Ratio 1.5 ~ 1.8 :1
Keystone Correction Vertical ± 5 degrees
Aspect Ratio 16:9, 4 :3, LBX, Native
Video Compatibility HDTV (480p, 576p, 720p, 1080i/p), 480i, 576i, Full NTSC, NTSC4.43, PAL, PAL-M, PAL-N, SECAM, HDMI (480i/p, 576i/p, 720p, 1080i/p), Computer capability up to UXGA(1600x1200)
Input / Output Connections HDMI x2(*)
VGA(Analog RGB, HDTV, SCART, component) x1
Component:YCbCr/ YPbPr (RCA ) x1
Composite Video x1
+12V Relay output x1
USB(service port ) x1
IR receivers x1
(*)Support HDMI 1.3
Uniformity 85%
Noise Level 29 dB (STD)
Lamp Type 230-watt user replaceable lamp
Estimated lamp life 4000 hours (STD mode)
2500 hours (Bright mode)
Power Supply Universal AC 100~240 volts 50 / 60Hz
Weight 2.9 kg
Dimensions (W x D x H) 32.9×23.9×9.9 cm

Supplied Accessories
Remote
Rear Panel

EH1060 Rear



Optional Accessories

Universal Flush Projector Ceiling Mount FB-1 *Recommended*
White - $149
Black - $149

Projector Mount

SPECIFICATIONS
Available in BLACK (FB-1B) and WHITE (FB-1W)
• Swivel: 360°, Adjustable roll, pitch and yaw.
• Rigid Steel construction.
• Durable powder-coated finish (Black or White).
• Supports up to 10kgs.
• Mounting hardware included.
• User manual included.
• All bracket models come standard with 4 x mounting arms.

FEATURES
- Direct to ceiling mount (150mm)
- Suits most projectors with 3 or 4 holes
