| Optoma EX612 DLP High Brightness Multimedia Projector |
|
|
 |
|
 |
 |
FOR CURRENT OPTOMA PROJECTORS CLICK HERE |
 |
 |
Texas Instruments latest DLP DarkChip3™ technology
Increases contrast ratio by 20-25% than DarkChip2 |
 |
High Brightness 3500 Lumens and 3000:1 Contrast Ratio
Producing vivid and dazzling pictures even in environments with ambient lighting. Ideal for conference rooms/ multimedia classrooms with a capacity of more than 50 people.
New Generation BrilliantColor™ technology
Incorporated with Texas Instrument's latest DDP2430 scaler to realize true 10-bit signal processing and 1.07 billion color displaying.
6 Default Display Modes + 2 User Adjustable Modes
Presentation / Bright / sRGB / Movie / Blackboard / Classroom + 2 User Modes to cater for all possible operation environments.
TrueVivid™ Technology
Optoma proprietary TrueVivid™ color enhancement technology affords better balanced chrominance and luminance for life-like colors. giving the viewer the ultimate visual experience.
Unsurpassed Product Quality/ Reliability
- Long-life lamp (3000/4000 hrs)
- Lowest cost of owership
- Hassle free/ filter free/ minimum maintenance required |
|
|
Specifications
| Display Technology |
Texas Instruments DLP® technology/
0.55'' XGA DC3 DMD Chip |
| Resolution |
Native: XGA (1024 x 768)
Max: UXGA (1600 x 1200) 60Hz |
| Brightness (typical) |
3500 ANSI Lumens |
| Contrast Ratio |
3000:1 |
| Displayable Colors |
1.07 billion colors |
| Projection Lens |
F = 2.41 ~ 2.55, f = 21.8 ~ 24 mm; 1.1x manual zoom / focus lens |
| Image Size |
22.9 to 302.85 inches |
| Projection Distance |
1.0 ~ 12m |
| Throw Ratio |
1.95 ~ 2.15:1 |
| Digital Keystone Correction |
± 40° Vertical |
| Aspect Ratio |
4:3 Native, 16:9 Compatible |
| Scan Rate |
Horizontal : 15.3 ~91.1 KHz /
Vertical : 43 ~85 Hz |
| Computer Compatibility |
UXGA, SXGA+, SXGA, XGA, SVGA, VGA Compression, VESA standards
PC & Macintosh compatible
|
| Video Compatibility |
HDTV (720p, 1080i/p), SDTV (480i/p, 576i/p)
Full NTSC, PAL PAL-M, PAL-N, SECAM
|

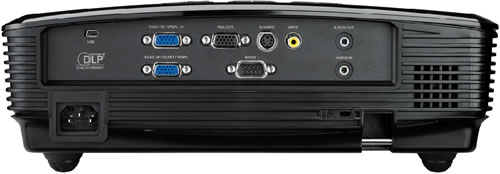

| Input / Output Terminals |
VGA(YPbPr/ RGB/SCART) x2
S-Video x1
Composite Video x1
Mini-jack Audio(R/L) input x1
Mini-jack Audio output x1
VGA out x1
mini USB Port (Remote mouse/service) x1
RS232 Control Port x1 |
| Speaker |
2W speaker x 1 |
| Uniformity |
85 % |
| Noise |
28 (eco) / 30dB(STD mode) |
| Lamp Type |
230 watt user replaceable lamp |
| Lamp Life |
4000 hours (STD mode)
3000 hours (Bright mode) |
| Power Supply |
AC 100 ~ 240 V, 50/60 Hz |
| Dimensions (W x D x H) |
324 x 234 x 97 mm |
| Weight |
2.86kg (6.3 lbs) |
Supplied Accessories
|
Carry Bag |
Remote |
|
|
| Optional Accessories |
|
|
| |
Extended Warranty
|
Program Coverage:
- LCD & DMD pixels are covered only as per original manufacturer's pixel terms & conditions
- Does not cover Cords, Power Adapter
- Does not cover consumable items such as projector globes |
| + 2 Year On-Site Extended Warranty (5 Year Total) |
$179 |
| + 1 Year On-Site Extended Warranty |
$140 |
|
|
|
Premium VGA Monitor Cable (15HDM/15HDM) |
Aus Wide Delivery: $15
|
Heavily shielded coaxial RGB cable giving you a crisper display at higher resolutions!
| . |
Features UL Approved Cabling |
| . |
Filters included on both ends cutting down on noise |
| . |
Maintains stronger signals using a shielded cabling run. |
| . |
Comes in 15pin D-sub format with Male to Male conectors |
| |
|
|
|
|
Universal flush ceiling mount (205) |
Insured Delivery: $16
Pick Up Avail.
|
• Swivel: 360°, Adjustable roll, pitch and yaw.
• Rigid Steel
construction.
• Durable powder-coated finish
(Black).
• Supports up to 10kgs.
• Mounting hardware included.
• User manual included.
• All bracket models come
standard with 4 x mounting
arms. |
|
|
|
