Powerful Installation Projector

The Optoma EX785/EW775 has almost limitless installation possibilities, its combination of high performance and brightness means it achieves perfect images in most environments. Using centre lens design, full lens shift and interchangeable lens options, the flexible and powerful EX785/EW775 is a truly versatile installation solution.

The high brightness is perfect for conferencing facilities, large auditoriums, halls and bars, its true brilliance must be experienced. Meeting the highest standards of installation projectors, the EX785/EW775 creates seamless, smooth and radiantly bright corporate presentations, videos and movies.

True WXGA Resolution The EW775 is the perfect companion for widescreen laptops. Your presentations will appear as sharp and detailed as they do on your widescreen laptop in WXGA (1280 x 800). WXGA resolution gives 30% more pixels than XGA. Lens Shift The EW775 handles a variety of installation challenges that come with large halls, conferencing facilities, auditoriums and bars. Lens shift aligns the projected images centrally on screen and can be adjusted horizontally or vertically without moving the unit.

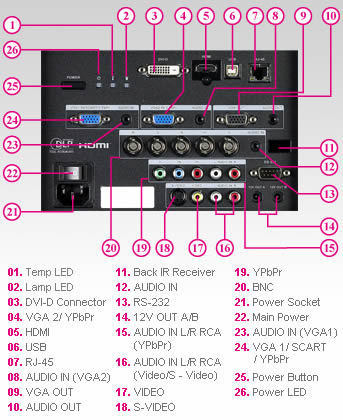

Extensive Connectivity This native WXGA projector accepts a wide variety of computer and video input signals. Connectivity includes: 5BNC, HDMI, DVI-D, Component Video, dual VGA (with SCART and YPbPr support), S-Video and Composite. Five audio inputs for individual PC and video connections enable the EW775 to function as an audio switcher and volume controller, thereby eliminating complicated and costly additional audio hardware and cabling. RS232 Control The extensive RS232 command set makes it simple and easy to control the EW775 with any control system.

AMX Compatibility – Dynamic Discovery
Protocol is incorporated into the EW775. This feature allows for easy installation with AMX control systems.

Crestron RoomView® - NETWORK CONTROL
RoomView® software provides a custom configurable interface to monitor, manage and control every device in every room remotely from any computer.

Manage up to 250 projectors at the same time (via master PC).
Control and alter the projector settings using a simple web browser page, including OSD menu control.
Set up email alerts for warning messages.
Ideal for large installations in both the educational and business environments.

Lens The centred lens design allows greater flexibility, ensuring the projector can be easily installed.

Optional Lenses
Easily attached short and long throw lenses give you the option to install the EW775 in different sized locations.

The short throw lens with a throw ratio of 0.81:1 is ideal for rear-projection installations. (e.g. 100inch diag. Image at 1.75metres distance)

The STD throw lens with a throw ratio of 1.62 – 2.03:1 is ideal for standard installations
(e.g. 100inch diag. Image from 3.5 to 4.3metres distance)

The long throw lens with a throw ratio of 2.03 – 3.05:1 is ideal for large conference rooms, auditoriums and any other large venue.
(e.g. 100inch diag. Image from 4.4 to 6.5metres distance)
