Optoma EW539 DLP Multipurpose Widescreen Projector




EH1060

Business




DISCONTINUED

FOR CURRENT OPTOMA PROJECTORS CLICK HERE


  • Bright projection – 3000 ANSI Lumens
  • WXGA resolution, 3000:1 contrast ratio for
    sharp, detailed presentations and graphics
  • Energy saving <1W standby mode
  • Security bar and password protection
    for added security
  • RS232 for meeting room control systems
  • Low ownership costs – up to 6000hrs lamp life
  • Portable – carry bag provided for easy transportation
  • DLP® filter-free design – Virtually no maintenance
3D 3D Projection (3D Ready)
The DLP-based EW539 3D ready is compatible with stereoscopic 3D technologies using Texas Instruments' DLP Link and Nvidia 3D-Vision solution. These capabilities allow 3D pictures to be projected from a single beamer out-of-the-box without requiring any additional special polarizer, filter or screen.
(3D content, 3D glasses and appropriately equipped PC also required to display 3D images)
EW536 is 3D Ready with DLP 3D Link Only. nVidia 3D is not compatible

16:10 widescreen
Widescreen format provides more details for images and allows to represent two 4:3 ducuments simultaneously.

WXGA

3000 ANSI Lumens & 3000:1 Native High Contrast

Brilliant optical design makes EW539 exceptional in providing high brightness & crystal-clear native high contrast, ideal for classrooms/ conference rooms with a capacity of 20–40 people.

Brilliant Colour AMAZING COLOURs
The EW539 incorporates BrilliantColor™ technology to produce stunningly bright images with perfectly balanced life-like colours. Preset display modes allow you to achieve a perfect image on a variety of surfaces including screens and interactive whiteboards.

1.07 Billion Display Colors
Incorporated with Texas Instruments’ latest DDP2431 scaler to realize true 10-bit signal processing. The new 10 bit color processing technology increases the number colors that can be display from 134.2 million to 1.07 billion, presenting more natural and vibrant pictures.

TrueVivid™ Technology
Optoma proprietary TrueVivid™ color enhancement technology affords better balanced chrominance and luminance for life-like colors. giving the viewer the ultimate visual experience.

Long Lasting Lamp Life
The environmentally friendly EW539 has energy saving features including <1W standby mode and long lamp-life of 6000hrs.

Direct Power On
start up time is significantly reduced as standby mode is bypassed, when the power cable is inserted into an active power outlet. This eliminates the need to use the ‘Power’ button on the remote control or the projector keypad.

Complete I/O support

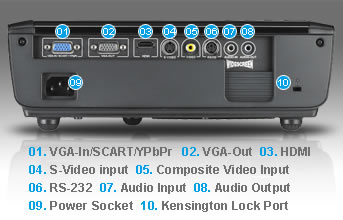

EW539 Rear Connections


Specifications

Display Technology Texas Instruments DLP® technology/
0.65'' WXGA DMD Chip
Resolution Native: 1280x800 (WXGA)
Max: UXGA (1600 x 1200) 60Hz
Brightness (typical) 3000 ANSI Lumens
Contrast Ratio 3000:1
Displayable Colors 1.07 billion colors
Projection Lens F# 2.5~2.67, f = 21.86 ~23.98 mm; 1.1x manual zoom / focus lens.
Image Size 27.31 to 359 inches (16:10)
Projection Distance 1.0 ~ 12m
Throw Ratio 1.55 ~ 1.7:1
Digital Keystone Correction ± 40° Vertical
Aspect Ratio 16:10 Native, 4:3 & 16:9 Compatible
Scan Rate Horizontal : 15.3 ~91.1 KHz /
Vertical : 24 ~85 Hz
Computer Compatibility UXGA, SXGA+, SXGA, XGA, SVGA, VGA Compression, VESA standards
PC & Macintosh compatible
Video Compatibility HDTV(720p, 1080i/p), SDTV (480i/p, 576i/p)
Full NTSC, PAL PAL-M, PAL-N, SECAM
Input / Output Terminals HDMI x1
VGA(VGA/YPbPr/ RGB/SCART) x1
S-Video x1
Composite Video x1
Audio input x1
Audio output x1
VGA output for monitor loop through x1
RS-232 control interface x1
IR receiver (Front & Top) x2
Uniformity 80 %
Noise 28dB(STD mode)
Lamp Type 200-watt user replaceable lamp
Lamp Life 6000 hours (STD mode)
3000 hours (Bright mode)
Power Supply AC 100 ~ 240 V, 50/60 Hz
Dimensions (W x D x H) 286 x 192 x 97 mm
Weight 2.49 kg

Supplied Accessories
Carry Bag
Remote
Rear Panel

EW539 Rear Connections



Optional Accessories

Wireless Projection Adapter WPS-Dongle 2
Your Price:
$199
WPS-Dongle2

SPECIFICATIONS
• Deliver presentations wirelessly from your notebook or desktop PC
• With 802.11b/g/n Wireless Connectivity

•Windows 2000 / XP / Vista / 7, Windows Mobile 5/6, Mac OS X 10.5 and above
Notebook/desktop PC requires an existing wireless connection.
Not suitable for full motion video
[More Information]




Universal Flush Projector Ceiling Mount FB-1 *Recommended*
Your Price:
$149




Projector Mount

SPECIFICATIONS
Available in BLACK (FB-1B) and WHITE (FB-1W)
• Swivel: 360°, Adjustable roll, pitch and yaw.
• Rigid Steel construction.
• Durable powder-coated finish (Black or White).
• Supports up to 10kgs.
• Mounting hardware included.
• User manual included.
• All bracket models come standard with 4 x mounting arms.

FEATURES
- Direct to ceiling mount (150mm)
- Suits most projectors with 3 or 4 holes


Premium VGA to Component Adapter Cable HD15RCA3
Your Price:
$39.95

SPECIFICATIONS
• High Definition YBbPr Component to VGA Adaptor
• 1.8 metre Length
• Features UL Approved Cabling
• Connect standard VGA to a HD Settop Box or DVD player





HDMI Cable

Premium HDMI Digital AV Cable

2 Metres
$29.95
5 Metres
$49.95
10 Metres
$79.95
15 Metres
$99.95

Premium quality AV cable for use with HDMI enabled digital displays, projectors, LCD screens and Plasma TVs!

- HDMI 1.3 with an increased single-link bandwidth to 340 MHz (10.2 Gbps) to support the demands of future HD display devices
- Compatible with HDTV and HDCP (High-Bandwidth Digital Content Protection)
- Connectors: HDMI Male/Male, Type A
- 10 year warranty


VGA Cable

Premium VGA Monitor Cable

5 Metres
$29.95
10 Metres
$59.95
15 Metres
$69.95
20 Metres
$89.95
30 Metres
$110.95

Heavily shielded coaxial RGB cable giving you a crisper display at higher resolutions!

  • Features UL Approved Cabling
  • Filters included on both ends cutting down on noise
  • Maintains stronger signals using a shielded cabling run.
  • Comes in 15pin D-sub format with Male to Male conectors
