| Optoma EW536 DLP Widescreen Multipurpose Projector |
|
|
 |
|
 |
 |
FOR CURRENT OPTOMA PROJECTORS CLICK HERE |
 |
 |
- Bright projection – 2800 ANSI Lumens
- WXGA resolution, 3000:1 contrast ratio for
sharp, detailed presentations and graphics
- Energy saving <1W standby mode
- Security bar and password protection
for added security
- RS232 for meeting room control systems
- Low ownership costs – up to 4000hrs lamp life
- Portable – carry bag provided for easy transportation
- DLP® filter-free design – Virtually no maintenance
 |
3D Projection (3D Ready)
The DLP-based EW536 3D ready is compatible with stereoscopic 3D technologies using Texas Instruments' DLP Link and Nvidia 3D-Vision solution. These capabilities allow 3D pictures to be projected from a single beamer out-of-the-box without requiring any additional special polarizer, filter or screen.
(3D content, 3D glasses and appropriately equipped PC also required to display 3D images)
EW536 is 3D Ready with DLP 3D Link Only. nVidia 3D is not compatible |

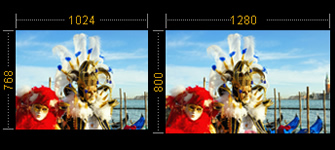

16:10 widescreen
Widescreen format provides more details for images and allows to represent two 4:3 ducuments simultaneously.
2800 ANSI Lumens & 3000:1 Native High Contrast
Brilliant optical design makes EW536 exceptional in providing high brightness & crystal-clear native high contrast, ideal for classrooms/ conference rooms with a capacity of 20–40 people.
 |
AMAZING COLOURs
The EW536 incorporates BrilliantColor™ technology to produce
stunningly bright images with perfectly balanced life-like colours.
Preset display modes allow you to achieve a perfect image on a variety
of surfaces including screens and interactive whiteboards. |
1.07 Billion Display Colors
Incorporated with Texas Instruments’ latest DDP2431 scaler to realize true 10-bit signal processing. The new 10 bit color processing technology increases the number colors that can be display from 134.2 million to 1.07 billion, presenting more natural and vibrant pictures.
TrueVivid™ Technology
Optoma proprietary TrueVivid™ color enhancement technology affords better balanced chrominance and luminance for life-like colors. giving the viewer the ultimate visual experience.
Remote Management
Control plural EW536 by wire via directly or RS-232 hub with projector ID in EW536
Unsurpassed Product Quality/ Reliability
- Long-life lamp (3000/4000 hrs)
- Lowest cost of owership
- Hassle free/ filter free/ minimum maintenance required
Complete I/O support
|
|
|
Specifications
| Display Technology |
Texas Instruments DLP® technology/ 0.65” WXGA DMD Chip |
| Resolution |
Native: 1280x800(WXGA), Support Computer signal up to UXGA (1600x1200) 60Hz |
| Brightness (typical) |
2800 ANSI Lumens |
| Contrast Ratio |
3000:1 |
| Displayable Colors |
1.07 billion colors |
| Projection Lens |
F# 2.5~2.67, f = 21.86 ~24.00 mm; 1.1x manual zoom / focus lens |
| Image Size |
27.31 ~ 359 inches (16:10) |
| Projection Distance |
1.0 ~ 12m |
| Throw Ratio |
1.55 ~ 1.7 :1 |
| Digital Keystone Correction |
± 40° Vertical |
| Aspect Ratio |
16:10 Native, 4:3 & 16:9 Compatible |
| Scan Rate |
Horizontal : 15.3 ~ 91.1KHz
Vertical : 24 ~ 85 Hz |
| Computer Compatibility |
UXGA, SXGA+, SXGA, XGA, SVGA, VGA Compression, VESA standards
PC & Macintosh compatible
|
| Video Compatibility |
HDTV (720p, 1080i/p), SDTV (480i/p, 576i/p)
Full NTSC, PAL PAL-M, PAL-N, SECAM
|

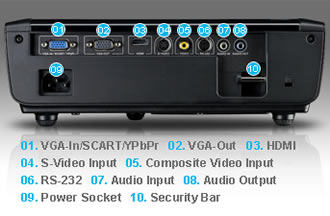

| Input / Output Terminals |
HDMI x1
VGA(VGA/YPbPr/ RGB/SCART) x1
S-Video x1
Composite Video x1
Audio input x1
Audio output x1
VGA output for monitor loop through x1
Mini RS-232 control interface x1
IR receiver (Front & Top) x2 |
| Speaker |
2W speaker x 1 |
| Uniformity |
85 % |
| Noise |
28dB(STD mode) |
| Lamp Type |
185-watt user replaceable lamp |
| Lamp Life |
4000 hours (STD mode)
3000 hours (Bright mode) |
| Power Supply |
AC 100 ~ 240 V, 50/60 Hz |
| Dimensions (W x D x H) |
286 x 192 x 97 mm |
| Weight |
2.3 kg / 5.0 lbs |
| 3D (DLP Link) |
Video: 480i
Computer: 1280x720/1024x768/800x600@120Hz |
