| Optoma EP783 DLP High Brightness Large Venue Projector |
|
 |
 |
|
 |
 |
FOR CURRENT OPTOMA PROJECTORS CLICK HERE |
 |
 |
Class-leading 5000 ANSI Lumens Brightness, ideal for conference rooms/auditoriums
Brilliant color and the finest detail amaze even in ambient light large venue. Aligning images from two stacked units to double brightness intensity.
Ultra-Wide Range of Throw Ratio for All Large Venue Applications
- EP783 Master Lens: 2.0~2.4:1
TrueVivid™ technology
Optoma proprietary TrueVivid™ color enhancement technology affords better balanced chrominance and luminance for life-like colors giving the viewer the ultimate visual experience. |
 |
New Built-in Professional Video Processing Engine
(A) Edge Enhance- Sharper & more seamless image quality are delivered than ever
(B) Sharp Contrast- Black/ White level of input image is optimism-stretched
(C) Color Vividness- 3 preset color management settings all adjustable
 |
Optoma exclusive Photocatalysis (O2air™) techology
Built-in Optoma proprietary air purifier system for sterilization & deodorization during projector operation |
Dual Support Network Management & Central Control
RJ45 & RS232 connections with projector ID programmable.
Horizontal/ Vertical Power Lens Shift
A total movement of ±110° in vertical & ±75° in horizontal extremely expands installation flexbility.
Built-in Wireless Solution (WM02) (OPTIONAL)
Support 802.11b/g, WiFi compliant.
Installation/ Maintenance Friendly Design
Lamp is easily replaced form the side, especially convenient for projection with two stacked units
Comprehensive Connectivity
2 independent Digital-In + 3 independent Analog-In (VGAx2, BNCx1)+ 7 independent Audio-In + 12V relay output + othersspan>
|
|
|
Specifications
| Display Technology |
0.7 inch / XGA DarkChip3ä DMD from Texas Instuments |
| Resolution |
Native XGA (1024x768), Computer capability up to UXGA(1600x1200)60Hz |
| Brightness (typical) |
5000 ANSI Lumens |
| Contrast Ratio |
1500:1 |
| Displayable Colors |
1.07 Billion colors |
| Projection Lens |
EP783: F=2.0~2.16, f=28.5~34.1mm, 1.2x motor zoom / focus
|
| Image Size |
24.6 to 307.6 inches |
| Projection Distance |
1.2m ~ 12.5m |
| Throw Ratio |
EP783: 2.0~ 2.4 :1
|

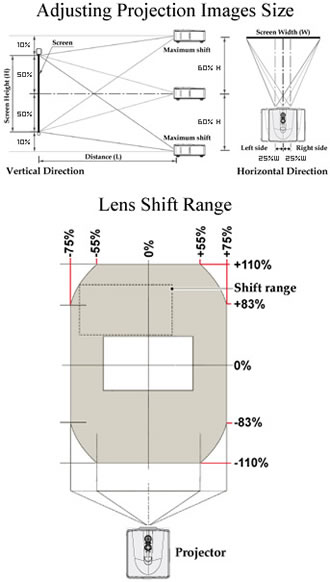

| Lens Shift |
Vertical : -110% ~ +110% (motor),
Horizontal : -75% ~ +75% (motor) |
| Digital Keystone Correction |
±40° ( Vertical ) , ±15°(Horizontal ) |
| Aspect Ratio |
4:3 Native, 16:9 Compatible |
| Scan Rate |
H: 15-100 KHz / V:43-87 Hz |
| Computer Compatibility |
UXGA, SXGA+, XGA, SVGA, VGA
VESA standards PC signal & Macintosh compatibles |
| Video Compatibility |
HDTV (480p, 576p, 720p, 1080i/p), SDTV(480i,576i), Full NTSC, NTSC4.43, PAL PAL-M, PAL-N, SECAM, HDMI(480i/p, 576i/p, 720p, 1080i/p) |

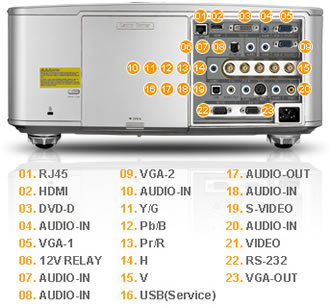

| Input / Output Terminals |
HDMI(support audio input) x1,
DVI-D (support HDCP) x1,
BNC(RGBHV/YPbPr) x1,
VGA1(YPbPr/RGB/SCART)x1,VGA2(YPbPr/RGB/SCART)x1,
S-Video x1,Composite Video x 1,
Audio input x 7 (For DVI-D / VGA1 / VGA2 / BNC / S-Video / Video / HDMI)
VGA output x 1, Audio output x1
+12V Relay output x1,USB Port (For USB remote mouse control/service) x 1,
RS-232 interface x 1,IR receivers (front and top) x 2 ,
RJ45 (LAN for network control interface) x1 |
| Wireless Projector |
Support 802.11b/g,WiFi compliant(Optinal) |
| Speaker |
5W speaker x2 |
| Uniformity |
85 % |
| Noise |
30dB (STD mode) |
| Lamp Type |
330-watt user replaceable lamp |
| Lamp Life |
3000 hours (STD mode)
2000 hours (Bright mode) |
| Power Supply |
AC 100 ~ 240 V, 50/60 Hz |
| Dimensions (W x D x H) |
475 x 398 x 167 mm |
| Weight |
EP783: 22.23 pounds (10.1kg)
EP783L: 23 pounds (10.45kg) |
Supplied Accessories
|
Remote |
|
| Optional Accessories |
|
|
| |
Extended Warranty
|
Program Coverage:
- LCD & DMD pixels are covered only as per original manufacturer's pixel terms & conditions
- Does not cover Cords, Power Adapter
- Does not cover consumable items such as projector globes |
| + 2 Year On-Site Extended Warranty (5 Year Total) |
$249 |
| + 1 Year On-Site Extended Warranty |
$190 |
|
|
|
Premium VGA Monitor Cable (15HDM/15HDM) |
Aus Wide Delivery: $15
|
Heavily shielded coaxial RGB cable giving you a crisper display at higher resolutions!
| . |
Features UL Approved Cabling |
| . |
Filters included on both ends cutting down on noise |
| . |
Maintains stronger signals using a shielded cabling run. |
| . |
Comes in 15pin D-sub format with Male to Male conectors |
| |
|
|
|
|
|
Grandview Universal Projector Ceiling Mount |
Insured Delivery: $16
Pick Up Avail.
|
-Direct to ceiling mount
-Suits most projectors with 3 or 4 mounting holes
- GVMBC = BLACK
- GVMWC = WHITE
|
|
|
|
Grandview GVMBE & GVMWE Extension Pole for Grandview Mount. |
Insured Delivery: $16
Pick Up Avail.
|
- Suites the above Grandview projector mount
- Offers either a 500 or 1000mm drop.
- Available in white, silver and black
- GVMBE = BLACK
- GVMWE = WHITE
- (extension pole only, can only be used with above Hang It Ceiling mount) |
| |
|
|
|
|
