| Optoma EP782 DLP High Brightness Large Venue Projector |
|
 |
 |
|
 |
 |
FOR CURRENT OPTOMA PROJECTORS CLICK HERE |
 |
 |
Super bright 4700 lumens & 3000:1 Contrast Ratio
Ideal for conference rooms/multimedia classrooms with a capacity of 30-50 people. State-of-the-art optical/system design makes EP782 powerful in both brightness & image performance.
Ultra-Wide Range of Throw Ratio for All Large Venue Applications
Master Lens: 1.57 ~ 1.89
Master Lens + Short Throw Add-on Lens (Option): 1.3 ~ 1.57
3000:1 outstanding contrast ratio
With Texas Instruments latest DarkChip3ä DMD, the contrast ratio is improved by roughly 30~40% compared with the previous generation chip.
TrueVivid™ technology
Optoma proprietary TrueVivid™ color enhancement technology affords better balanced chrominance and luminance for life-like colors giving the viewer the ultimate visual experience. |
 |
 |
Optoma exclusive Photocatalysis (O2air™) techology
Built-in Optoma proprietary air purifier system for sterilization & deodorization during projector operation |

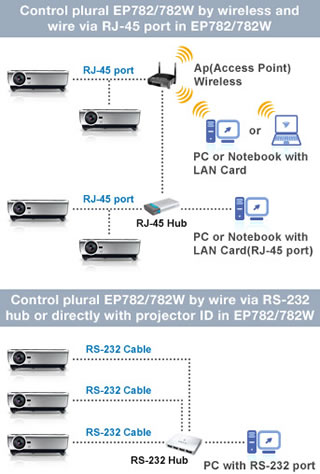

Dual Support Network Management & Central Control
RJ45 & RS232 connections with projector ID programmable
Comprehensive Connectivity
2 independent Digital-In + 2 independent Analog-In + 6 independent Audio-In + 12V relay output + others
Installation/ Maintenance/ Environment Friendly
- Height of 4 supporting feet all adjustable
- Easy lamp replacement from top cover
- Green Design (RoHS Compliant) / Auto shut-down timer while no signal to save lamp life & energy
EASY to use
- Quiet Operation
Optoma patented tunnel cooling system for near silent
operation.
- Multi-Language Support
The OSD menu supports up to 17 European languages
including French, German, Polish, Dutch, Swedish and Arabic.
- Easy Lamp Replacement
The lamp can easily be replaced in situ even if the projector
is ceiling mounted.
Security
- Password Protected Operation
Acts as a theft deterrent & prevents unauthorised usage
Key Pad Lock: provides an additional layer of security by
ensuring the projector can only be controlled via the remote
control. Thereby preventing unauthorised adjustments from
via the control panel
Energy Saving
- Auto Power Off
If after a pre-determined time the projector does not
receive a signal, it will turn itself off, conserving power and
extending the life of the lamp
- Fast Switch On
Display an image on screen qucikly after switching the
projector on.
- Low Power Standby Mode
Reduces energy consumption.
custom start up scren
First impressions are important so set the company logo as the start up
screen to make that impression last.
Control
The extensive RS232 command set makes it simple and easy to control
the EP782 with any control system.
AMX Compatibility – Dynamic Discovery Protocol is
incorporated into the EP782. This feature allows
for easy installation with AMX control systems.
Optional Lens
Easily attachable short throw lens gives greater
installation flexability.
With a throw ratio of 1.3 – 1.57 the EP776/EP782 is
ideal for rear-projection installations. |
|
|
|
|
Specifications
| Display Technology |
0.7 inch / XGA DarkChip3ä DMD from Texas Instuments |
| |
| Resolution |
Native XGA (1024x768), Computer capability up to UXGA(1600x1200) 60Hz |
| |
| Brightness (typical) |
4700 ANSI Lumens |
| |
| Contrast Ratio |
3000:1 |
| |
| Displayable Colors |
134.2 million colors |
| |
| Projection Lens |
F = 2.52 ~ 2.79, f = 22.55 ~ 27.06 mm
1.2x manual zoom / focus lens |
| |
| Image Size |
39.1 ~ 313.5 inches |
| |
| Projection Distance |
1.5 ~ 10 m |
| |
| Throw Ratio |
1.57 ~ 1.89:1 |
| |
| Digital Keystone Correction |
±18° ( Vertical ) |
| |
| Aspect Ratio |
4:3 Native, 16:9 Compatible |
| |
| Scan Rate |
H:15 ~ 91 KHz / V:50 ~ 85 Hz |
| |
| Computer Compatibility |
UXGA, SXGA+, XGA, SVGA, VGA
VESA standards PC signal & Macintosh compatibles |
| |
| Video Compatibility |
HDTV (480p, 576p, 720p, 1080i/p), SDTV(480i,576i), Full NTSC, NTSC4.43, PAL PAL-M, PAL-N, SECAM, HDMI(480i/p, 576i/p, 720p, 1080i/p) |
| |

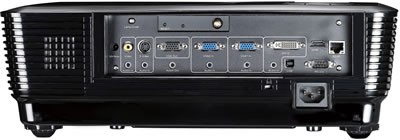

| Input / Output Terminals |
HDMI(support audio input) x1,
DVI-D (support HDCP) x1,
VGA1(YPbPr/RGB/SCART)x1,
VGA2(YPbPr/RGB)x1,
S-Video x1,
Composite Video x 1,
Audio input x 6 (For DVI-D / VGA1 / VGA2 / S-Video / Video / HDMI),
VGA output x 1,
Audio output x1,
+12V Relay output x1,
USB Port (For USB remote mouse control/service) x 1,
RS-232 interface x 1,
IR receivers (front and top) x 2 ,
RJ45 (LAN for network control interface) x1 |
| |
| Wireless Projector |
Support 802.11b/g,WiFi compliant.
EP782(Optinal) |
| |
| Speaker |
3W speaker x2 |
| |
| Uniformity |
85 % |
| |
| Noise |
30dB (STD mode) |
| |
| Lamp Type |
330-watt user replaceable lamp |
| |
| Lamp Life |
3000 hours (STD mode)
2000 hours (Bright mode) |
| |
| Power Supply |
AC 100 ~ 240 V, 50/60 Hz |
| |
| Dimensions (W x D x H) |
398 x 295 x 132 mm |
| |
| Weight |
EP782: 5 kg / 11 lbs |
