| Optoma EP1690 DLP High Brightness Widescreen Projector |
|
|
 |
|
 |
 |
FOR CURRENT OPTOMA PROJECTORS CLICK HERE |
 |
 |
Texas Instruments' latest DarkChip2ä DMD with a 16:9 WXGA (1280×768) resolution

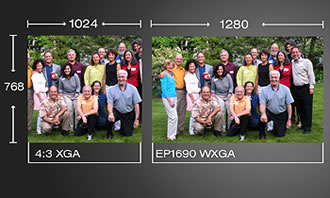

WXGA offers 1.25 times more pixel count than a normal XGA chip and therefore provides the finer images
Dual true resolution support
The most "dual use" projector designed for the office and the home theater:
(1) 16:10 (1280×768), native on WXGA
(2) 16:9 (1280×720), native 720p HDTV compatible
Incorporated the latest Texas instruments’ DDP3020 professional video processor
This processor has motion adaptive de-interlacing and reverse 3:2 and 2:2 pull down functions, which delivers smoother images. It also supports 12-bit gamma correction, I/P conversions and LVDS interface for high speed RLDRAM producing clean and clear pictures.
TrueVivid™ Image Processing
With TrueVivid™ Image Processing and Optoma exclusive Color Gamma Adjustment, the image quality is enhanced for veritable video fidelity, including better depth and deeper 3D look to any image.
TrueVision™ Technology
TrueVision™ technology improves cross-coloring and eliminates jagged edges, allowing the projector to deliver cinema-like images with extraordinary picture quality.

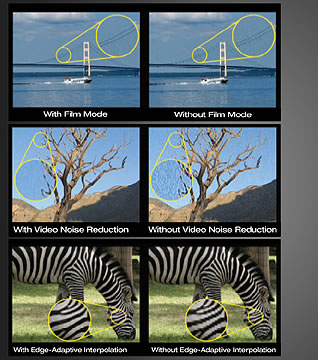

1. Film mode - Optimal image de-interlacing for film-like motion video performance for a truly cinematic experience.
2. Edge-adaptive interpolation - High performance video enhancement ensures that lines and edges are smooth regardless of their position on the screen.
3. 3D video Noise Reduction Filters - Built-in filters practically eliminate any image“noise”and results in crystal-clear video.

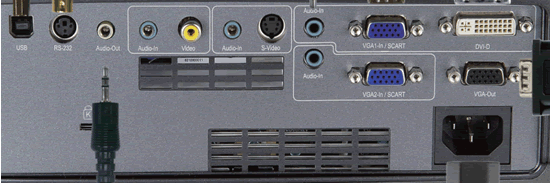

Extensive connector options (include DVI digital interface)

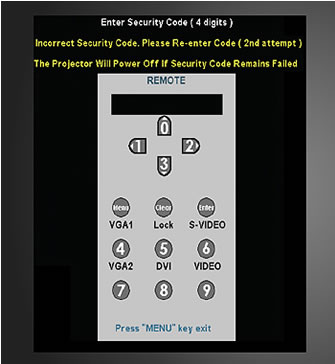

Pin number security
Remote control with laser pointer & wireless mouse function.
|
|
 |
Review
"We have another winner. Whether you are looking to the EP1690 as a widescreen business projector, or as a "bright widescreen" projector for home theater, the EP1690 provides extremely good price/performance. "
|
|
|
Projector Reviews is pleased to award the EP1690 our Hot Product Award, in this case, as both a widescreen business projector, and as a quality, bright alternative in the home to dedicated home theater projectors. In both cases, the projector offers exceptional price performance compared to its closest competition.

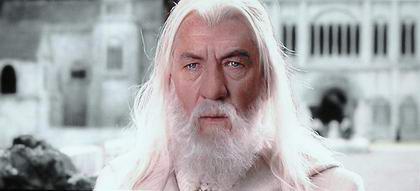

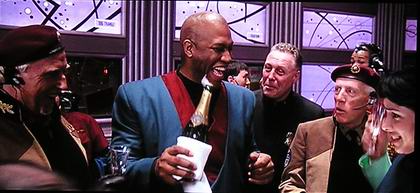

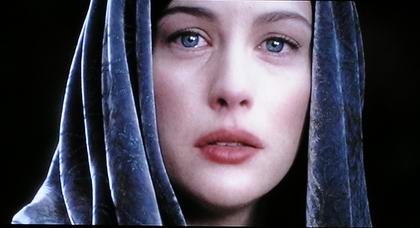

Pictures Sourced from projectorreviews.com from the review of the Optoma EP1690
|
|
Specifications
| Display |
0.65 inch / 12 degree WXGA DarkChip2 DMD from Texas Instruments. |
| Resolution |
1280 x 768 |
| Max Resolution |
1600 x 1200 |
| Brightness |
2500 |
| Contrast Ratio |
2500:1 |
| Lamp Type |
220-watt Replaceable UHP lamp |
| Uniformlty |
85% |
| Noise Level |
27dB in standard mode / 30dB in Brite mode |
| Weight (kg) |
3.2 |
| Keystone |
±15° ( Vertical & Horizontal ) |
| Speaker |
3W Speaker x1 |
| Power Supply |
Universal AC 100 - 240 volts, 50/ 60Hz |
| Power Consumption |
295W (Operating) , < 13W(Stand by) |
| Dimension |
347 x 245 x 94 (mm) |
| Aspect Ratio |
Native on 16:10 (WXGA 1280 x 768 ) ,include native |
| Projection Lens |
f=22.25 - 26.69 mm, F/2.5~2.8 |
| Zoom |
1.2 X manual zoom / focus |
| Throw Ratio |
1.58 ~1.90:1 |
| Throw Distance |
1.5m ~ 11m |
| Image Size |
36 to 323 inches |
| Num Color |
16.7 Million |
| V Sync Range |
56-85 Hz |
| H Sync Range |
15-100 KHz |
| Computer Compatibility |
UXGA,SXGA+,XGA,SVGA,VGA Compression,VESA standards,PC & Macintosh compatibles, |
| Video Compatibility |
HDTV (480p, 576p, 720p, 1080i/p), 480i,576i with 480i/576i De-Interlacing,Full NTSC, NTSC4.43, PAL PAL-M, PAL-N, SECAM, |

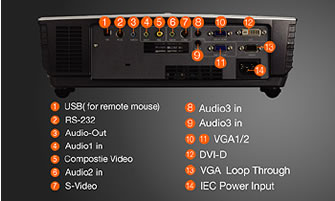

| Input |
DVI-D (PC/DVI-D with HDCP),VGA (YPbPr/RGB/SCART)with Audio input x 2,S-Video (with Audio input) x1,Composite Video (with Audio input) x 1,VGA with Audio output x 1,USB Port (For wireless mouse/service) x 1,Serial RS-232 for control x 1,IR receivers x 2 (front and top) |
| Output |
|
| Remote Control |
Y |
| Special Function |
Digital Image shift:Up/Down, Left/Right digital Image shift. Security Timer function. |
Supplied Accessories
|
Carry Bag |
Remote |
Picture Unavailable |
|
