| Optoma 3D-XL 3D Projector Adapter |
|
 |
|
 |
FOR CURRENT OPTOMA PROJECTORS CLICK HERE
|
 |
3D Projector Adapter
- Huge screen, fully immersive 3D projection at home
- 3D Blu-ray, 3D PS3 & Xbox 360 games & Sky 3D

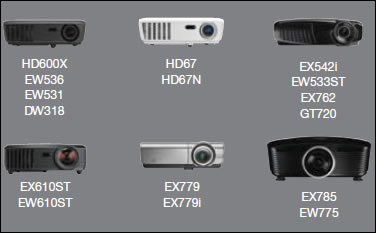

- 14 compatible projectors in the Optoma range
- The world’s first 3D projector adapter
|
 |
Amazing, fully immersive. life-size 3D projection is now possible in the home. The world’s first 3D projector adapter, the Optoma 3D-XL adapts existing DLP® projectors enabling them to display 3D.
Compatible with 3D broadcast signals such as Sky 3D in the UK; 3D Blu-ray players and 3D games from the Sony® PS3 the 3D-XL simply connects between a 3D source and a DLP projector. The huge, greater than 100”, 3D projected images in the home provide a fantastically immersive experience that is just not possible with the small screen of a 3D TV and amazingly the total cost of this jaw-dropping 3D experience is a fraction of the cost of 3D TV’s!
3D Projector Adapter
The 3D-XL is ideal for use with the Optoma HD67 projector for the home but can also be used with any of the 14 compatible models in the Optoma range. This makes the 3D-XL, when paired with one of the Optoma Professional AV projector models, an ideal solution for large screen Sky 3D viewing in pubs or bars.
Use the diagram below to find out what you need for the ultimate life-size 3D experience.
Setup
Once you have connected your devices together with HDMI 1.4 cables as shown in the diagram above, and the projector with a HDMI 1.3(or 1.4) you are ready to begin.
3D Glasses
ZD201 3D Glasses
The 3D-XL comes with a pair of Optoma ZD201 3D glasses so you can experience 3D out of the box. |
Specifications
| Native Resolution |
720p 1280 x 720 |
| Weight |
1.08Kg |
| I/O Connectors |
| Inputs: |
2x HDMI 1.4a (HDCP) - audio supported |
| Outputs: |
1x HDMI 1.3 (HDCP) - audio supported, 3-PIN mini DIN (VESA Sync) |
| Control: |
9-pin RS232 |
|
| Maximum Resolution |
Full HD 1080p (L/R view selectable) |
| Video Compatibility |
PAL SECAM 576i/p, NTSC 480i/p, HD 720p/1080i/1080p |
| Vertical Scan Rate |
24/50/60/120Hz (XGA / 720p), 24/50/60Hz (1080p) |
| Audio |
via HDMI |
| Dimensions (W x D x H) |
280mm x 190mm x 30mm |
| Power Supply |
100 - 240V, 50 - 60Hz (UK/EU compatible) |
| Power Consumption |
20W (<1W standby) |
| Operating Conditions |
Operating: 5 - 35˚C, 85% Humidity (Max), 5000m Altitude (Max) |
| Standard Accessories |
ZD201 3D Glasses, AC/DC Power Adapter,Quick Start Guide, CD User Manual,Warranty Card, WEEE Card |
| Optional Accessories |
ZD201 3D Glasses |
| RoHS |
Compliant |
| 3D Support |
3D Playstation3 games, 3D Blu-ray, 3D Broadcasts (SKY in the UK) |
| 3D Viewing |
Requires DLP-Link shutterglasses - supplied |
| 3D Compatibility |
Side-by-Side:1080i50, 1080i60
Frame-pack:1080p24, 720p50, 720p60
Over-Under: 1080p24, 720p50, 720p60 |
Supplied Accessories
|
A Pair Glasses |
|
|
|
|
 |
