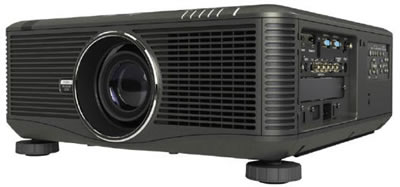

NEC PX750UG DLP Large Venue Full HD Projector - Lens Required









DISCONTINUED

For the current NEC Range Click here

Powerful installation projector equipped to take on the most demanding integration projects.

FLEXIBILITY ENABLES PERFORMANCE
° Integrated Device Technology HQV™ is a high-performance video processing/scaling system designed for computer signals as well as standard or high- definition video. The technology produces superior video processing using pixel- based, motion-adaptive de-interlacing to remove undesirable motion artifacts typical of interlaced signals. This processing creates life-like images in
applications such as video conferencing.
° Bright enough for most applications: 7500 lumens with a 6-segment (RGBYCW) color wheel. For higher video quality color reproduction, BrilliantColor™
technology and a second 6-segment (RGBYCM) color wheel (included) can dramatically increase color saturation at mid and low video levels,
while optimizing color gain across the full color gamut.
° Geometric correction tool allows you to project on spheres, cylinders and more
° VIDI technology, a Phillips innovation designed to work in conjunction with the color wheel, uses a brilliant pulse to increase the brightness of the
image and a dark pulse to increase the contrast ratio

INTEGRATED NETWORKING AND ASSET MANAGEMENT
° Integrated RJ45 connection for quick connection to the LAN (10/100 base-T capability)
° Integrated high-speed wireless LAN IEEE 802.11b/g
° Desktop control allows you to securely transmit information wirelessly to the projector from a docking station or PC in another room
° Image Express Utility (IEU 2.0; compatible with Windows or Mac operating systems) dedicated projector software provides wired and wireless data
transmission via peer-to-peer or over the network
• Broadcast mode allows you to send information from one computer to several projectors
° Windows Network Projector function within Windows Vista connects
directly to networked projectors without the need for additional proprietary software
° Windows Remote Desktop function allows you to control a networked computer by connecting a USB mouse and keyboard directly to the projector’s USB input
° Windows Network Drive Function displays multimedia files (.jpeg, .bmp, .png, .mpeg2 or .wmv9) in the Windows shared folder on a local network using the Viewer function—all without bringing your PC into the conference room
° Windows Media Connection Function displays multimedia files (.mpeg2, .jpeg or .wmv9) stored on the Windows Media Connect server or a local network using the Viewer function—all without bringing your PC into the conference room
° Crestron Roomview Connected™

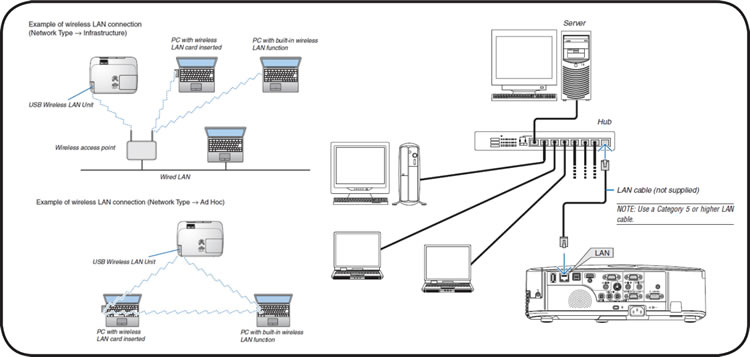

PX750UG Network Management

PX750UG Lens Shift

SECURITY FEATURES PROVIDE PEACE OF MIND
° Cabinet control lock setting enables user to deactivate buttons on cabinet to prevent unwanted changes to projector settings
° Logo lock restricts changes to logo saved in projector memory
° Password protection restricts unauthorized use of projector
° Email notification informs the system administrator when the lamp approaches the end of its useful life

DESIGNED WITH THE ENVIRONMENT IN MIND
° Extended lamp life with ECO Mode™ technology increases lamp life up to 2500 hours, while lowering power consumption
° Power management enables projector to automatically turn off when an incoming signal is not detected from any of the inputs
° Auto Power On via the RGB (15-pin) input connector when a signal is detected from a computer
° Carbon savings meter calculates the positive effects of operating the projector in ECO Mode, which is encouraged by an optional message at startup. A green ECO Mode button on the remote control makes the switch easy.
° Quick start (3 to 4 seconds) lets you begin presenting in seconds while quick shutdown (immediate power off with no cooling required after shutdown) ensures efficient energy usage
° Sleep timer can be set to automatically turn off the projector at set countdown times
° Low power consumption (0.2W in stand-by mode) minimizes energy costs
° Direct power off provides instantaneous shutdown of the projector

2500-hour filter life
NEC is committed to designing its products to provide long lifecycles. This commitment even extends to components within its products, including the improved filter. This virtually maintenance-free filter reduces the frequency at which cleaning is required, thereby decreasing your total cost of ownership. Filter replacement is only required at the time the lamp is replaced


Lens specifications

Model NP16FL NP17ZL NP18ZL NP19ZL NP20ZL NP21ZL
Option Lens NP16FL
$7299		 NP17ZL
$7299		 NP18ZL
$2750		 NP19ZL
$7299		 NP20ZL
$7299		 NP21ZL
$7299

Lens type Fixed Short
Throw Lens		 Zoom Lens Zoom Lens Zoom Lens Zoom Lens Zoom Lens
Zoom/Focus Powered
focus		 Powered zoom and focus
Zoom Ratio - 1.41 1.31 1.65 1.5 1.55
Throw Ratio 0.76:1 1.25-1.79 : 1 1.73-2.27 : 1 2.22-3.67 : 1 3.6-5.4 : 1 5.3-8.3 : 1
F 1.85 1.85-2.50 1.64-1.86 1.86-2.48 1.85-2.41 1.85-2.48
f (mm) 11.6 18.7-26.5 25.7-33.7 32.91-54.23 52.8-79.1 78.5-121.9
Screen Size 50-300 inches 50-300 inch 50-300 inch 50-300 inch 50-300 inch 50-300 inch
Light Output* 7100 ANSI lm 6800 ANSI lm 7500 ANSI lm 6900 ANSI lm 6600 ANSI lm 6600 ANSI lm
Lens
Shift		 Vertical
 0 +0.5V +0.5V +0.5V +0.5V +0.5V
Horizontal 0 ±0.1H ±0.1H ±0.1H ±0.1H ±0.1H
Weight 0.9 kg 1.1 kg 0.8 kg 1.0 kg 1.0 kg 1.4 kg

Throwing Distance and Screen Size (Aspect ratio 16:10)

Screen size
(inches)		 Lens model name
NP16FL NP17ZL NP18ZL NP19ZL NP20ZL NP21ZL
50"(1.08×0.64) 0.8 1.3-1.9 1.8-2.4 2.4-4.0 3.8-5.8 5.6-8.9
60"(1.29×0.81) 1.0 1.6-2.3 2.2-2.9 2.8-4.8 4.6-7.0 6.8-10.7
80"(1.72×1.08) 1.3 2.2-3.1 3.0-3.9 3.8-6.4 6.2-9.3 9.1-14.4
100"(2.15×1.35) 1.7 2.7-3.9 3.7-4.9 4.8-8.0 7.7-11.7 11.5-18.1
120"(2.59×1.62) 2.0 3.3-4.7 4.5-5.9
 5.8-9.6 9.3-14.1 13.8-21.7
150"(3.23×2.02) 2.5 4.1-5.8 5.6-7.4 7.2-12.0 11.7-17.6 17.4-27.3
200"(4.31×2.69) 3.4 5.5-7.8 7.5-9.9 9.7-16.1 15.6-23.5 23.3-36.4
240"(5.17×3.23) 4.1 6.6-9.4 9.1-11.9 11.6-19.3 18.8-28.3 28.0-43.8
300"(6.46×4.04) 5.1 8.2-11.7 11.3-14.9 14.5-24.1 23.5-35.4 35.0-54.8
*The values in the tables are design values and may vary .
Specifications
Model Name PX750U
DLP chip 0.67 inch DLP (Aspect Ratio 16:10)
Optical Device Colour separation by the Colour wheel
Resolution *1 1920 x 1200 pixels
Lens See the chart above
Lens Shift *2
(NP17ZL, NP18ZL, NP19ZL, NP20ZL, NP21ZL)		 Vertical : Max+0.5 V, Horizontal : Max±0.1 H
Lamp (Eco Mode On / Eco Mode Off) 320 W / 400W AC
Lamp Life *3 (Eco Mode On / Eco Mode Off) 2500 H / 2000 H
Image Size
(Projection Distance)		 NP161FL 50 to 300 inches (0.8 m to 5.1 m)
NP17ZL 50 to 300 inches (1.3 m to 11.7 m)
NP18ZL 50 to 300 inches (1.8 m to 14.9 m)
NP19ZL 50 to 300 inches (2.4 m to 24.1 m)
NP20ZL 50 to 300 inches (3.8 m to 35.4 m)
NP21ZL 50 to 300 inches (5.6 m to 54.8 m)
Colour Reproduction 10-bit signal processing (1.07 billion colours)
(VIEWER, NETWORK : 16.7 million colours)
Light Output *4 *5
(with NP18ZL)		 Eco Mode Off 7500 ANSI lumens
Eco Mode On Approx. 80% of Eco Mode Off
Contrast Ratio (White / Black) *6 1000 : 1/2100 : 1 with DYNAMIC CONTRAST ON
Maximum Resolution WUXGA (1920 x 1200)
Scan Rate Horizontal 15kHz to 108kHz (RGB : 24kHz or over)
conforms to the VESA standard
Vertical 48Hz to 120Hz (HDMI : 50Hz to 85Hz)
conforms to the VESA standard
Keystone Correction Horizontal Manual Approx.±Max 35 degrees
Vertical Manual Approx.±Max 30 degrees
Input Terminals Computer 2 × D-Sub Mini 15-pin (Computer 1&2 IN),
1 × 5 BNC (Computer 3 IN)
Component
(Shared with Computer IN)		 2 × D-Sub Mini 15-pin, 1 × 5 BNC
HDMI 1 × HDMI Type A
DisplayPort 1 × DisplayPort
S-Video 1 × Mini DIN 4-pin
Video 1 × BNC
Output Terminals 1 × D-sub Mini 15-pin (only Computer 1 input can be output)
USB Port 1 × Type A (for mouse, keyboard, USB memory)
Wireless LAN (USB Port) 1 ×Type A
Wired LAN Port 1 × RJ-45 (10BASE-T / 100BASE-TX)
Remote 1 × Stereo Mini Jack
Control Terminals 1 × D-sub 9-pin
Quietness (Eco Mode On/ Eco Mode Off) 39 dB / 43 dB
Environment Operational Temperatures 0°C to 40°C, 20% to 80% humidity (non-condensing)
Storage Temperatures -10°C to 50°C, 20% to 80% humidity (non-condensing)
Power Requirement 100 to 240 V AC, 50 Hz/60 Hz
(PX750UG: 200 to 240 V AC, 50 Hz/60 Hz)
Input Current (100 to 120 V / 200 to 240 V AC) 10.8 A / 4.3 A (PX750UG: 5.2 A)
Power Consumption
(100 to 120 V AC /
200 to 240 V AC)		   Eco Mode Off Dual (Single) 1006 W / 958 W (530 W / 515 W)
Eco Mode On Dual (Single) 810 W / 777 W (439 W / 429 W)
Standby Mode Normal 33 W / 34 W
Network Standby 23 W / 23 W
Power-saving 0.2 W / 0.4 W
Calorific Value 3433 BTU (Max)
Dimensions (W x H x D) 504 mm x 192 mm x 516 mm (not including protrusions)
Weight (Not including Lens) 19.7 kg
Gross Dimensions (W x H x D) 646mm x 419mm x 720mm
Gross Weight 28.6 kg
Accessories Remote control, Batteries(AA x 2), Power cord, 6-segment colour wheel,Stacking holders (x3), Power cord stopper, Lens theft prevention screw, Anti-theft cap for LAN unit (for optional wireless LAN unit), CD-ROM (User's manual/Utility software), Dust cap for lens, Quick setup guide, Important information
Regulations For United States UL Approved (UL 60950-1), Meets FCC Class B Requirements
For Canada C-UL Approved (CSA 60950-1), Meets DOC Canada Class B Requirements
For Europe Meets EMC Directive (EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3), Meets Low Voltage Directive (EN60950-1, TÜV GS Approved)
For Asia/Oceania IEC60950-1, Meets AS/NZS CISPR.22 Class B
For Korea KC (safety : K60950-1, EMC : K00022, K00024, K61000-3-2)
For China GB4943, GB9254, GB17625.1
For Russia Gost R 60950-1, 51318.22, 51317.3.2. /3.3.
For Saudi Arabia SASO IEC60950-1
*1 : Effective pixels are more than 99.99%.
*2 : The Lens Shift function is not available for the NP16FL.
*3 : Lamp life is defined as the average time span for the brightness of the lamp to be reduced by half, it does not refer to the warranty period for the lamp.
*4 : This is the light output value (ANSI lumens) when the [PRESET] mode is set to [HIGH-BRIGHT]. If any other mode is selected as the [PRESET] mode, the light output value may drop slightly.
*5 : Compliance with ISO21118-2005



Supplied Accessories
Remote

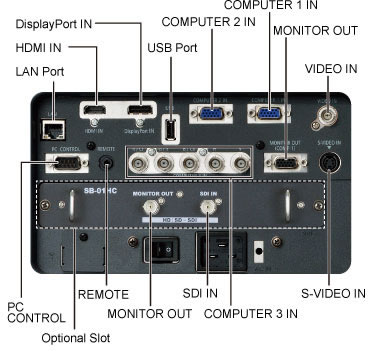

Rear Panel
